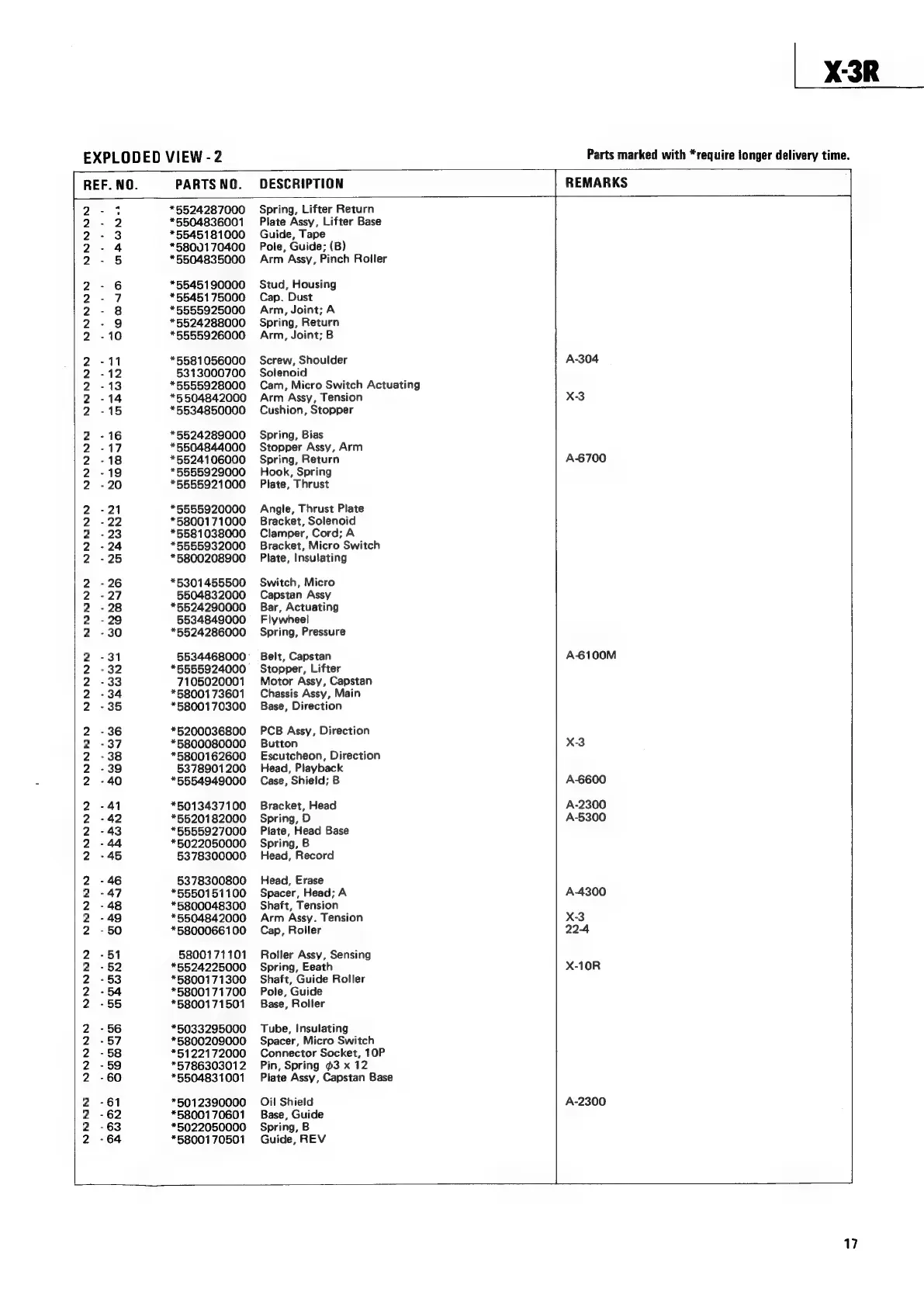

EXPLODED VIEW -2
X:3R
Parts marked with *require longer delivery time.
oo NO. PARTSNO. DESCRIPTION REMARKS
2-74 *5524287000 Spring, Lifter Return
2-2 *5504836001 Plate Assy, Lifter Base
2-3 *5545181000 Guide, Tape
2 4 *5800170400 Pole, Guide; (B)
2-5 *5504835000 Arm Assy, Pinch Roller
2-6 *5545190000 Stud, Housing
2-7 *5545175000 Cap. Dust
2-8 *5555925000 Arm, Joint; A
2-9 *5524288000_ Spring, Return
2 -10 *5555926000 Arm, Joint; B
2-11
*5581056000
Screw,
Shoulder
A-304
2
-12
5313000700
Solenoid
2 -13 *5555928000 Cam, Micro Switch Actuating
2
-14
*5504842000
Arm
Assy,
Tension
X-3
2 -15 *5534850000 Cushion, Stopper
2 -16 *5524289000 Spring, Bias
2 -17 *5504844000 Stopper Assy, Arm
2 -18 *5524106000 Spring, Return A-6700
2 -19 *5555929000 Hook, Spring
2 -20 *5555921000 Plate, Thrust
2 -21 *5555920000 Angle, Thrust Plate
2 -22 *5800171000 Bracket, Solenoid
2 -23 *5581038000 Clamper, Cord; A
2 -24 *5555932000 Bracket, Micro Switch
2 -25 *5800208900 Plate, Insulating
2 -26 *5301455500 Switch, Micro
2 -27 5504832000 Capstan Assy
2 -28 *5524290000 Bar, Actuating
2 -29 5534849000 _ Flywheel
2 -30 *5524286000 Spring, Pressure
2 -31 5534468000 __— Belt, Capstan A-6100M
2 -32 *5555924000 Stopper, Lifter
2 -33 7105020001 Motor Assy, Capstan
2 -34 *5800173601 Chassis Assy, Main
2 -35 *5800170300 Base, Direction
2 -36 *5200036800 PCB Assy, Direction
2 -37 *5800080000 Button X-3
2 -38 *5800162600 Escutcheon, Direction
2 -39 5378901200 Head, Playback
2 -40 *5554949000_ Case, Shield; B A-6600
2 -41 *5013437100 Bracket, Head A-2300
2 -42 *5520182000 Spring, D A-5300
2 -43 *5555927000 Plate, Head Base
2 -44 *5022050000 Spring, B
2 -45 5378300000 Head, Record
2 -46 5378300800 Head, Erase
2 -47 *5550151100 Spacer, Head; A A-4300
2 -48 *5800048300 Shaft, Tension
2 -49 *5504842000 Arm Assy. Tension X-3
2
-50
*5800066100
Cap,
Roller
22-4
2 -51 5800171101 Roller Assy, Sensing
2 -52 *6524225000 Spring, Eeath X-10R
2 -53 *§800171300 Shaft, Guide Roller
2 -54 *5800171700 Pole, Guide
2 -55 *5800171501 Base, Roller
2 -56 *5033295000 Tube, Insulating
2 -57 *5800209000 Spacer, Micro Switch
2 -58 *5122172000 Connector Socket, 10P
2 -59 *5786303012 Pin, Spring $3 x 12
2 -60 *5504831001 Plate Assy, Capstan Base
2 -61 *5012390000 Oil Shield A-2300
2 -62 *5800170601 Base, Guide
2 -63 *5022050000 Spring, B
' 64 *5800170501 Guide, REV
