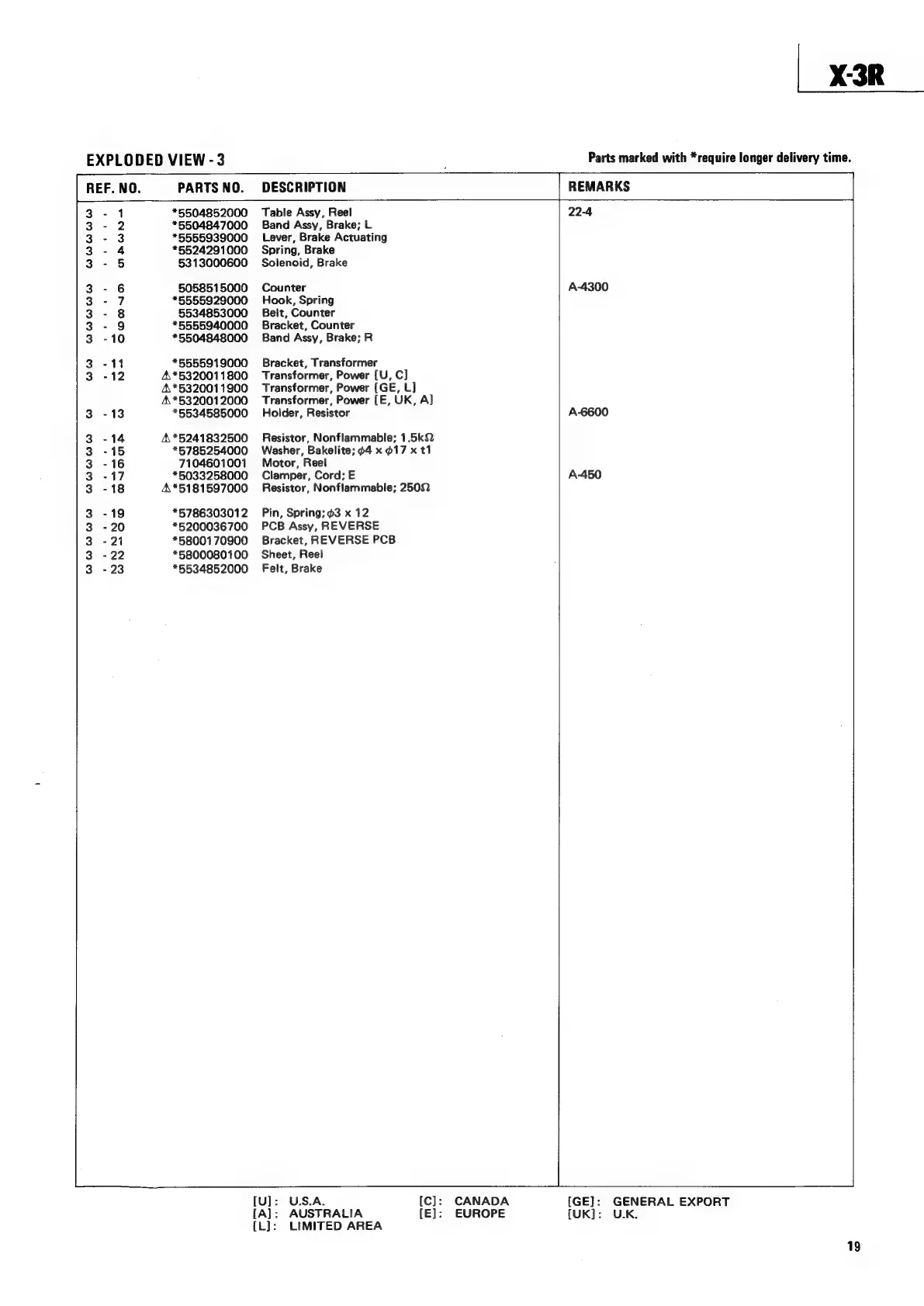

Teac X-3R - Page 19

EXPLODED VIEW - 3
REF. NO.
PARTS NO.
*5504852000
*5504847000
*6555939000
*5524291000
5313000600
5058515000
*5555929000
5534853000
*5555940000
*§504848000
OCOWOOND TAARWN—=
*5555919000
A\*5320011800
4*5320011900
A\*5320012000
*5534585000
WW WWHWWWH WHWWWW
4*5241832500
*5785254000
7104601001
*5§033258000
4*5181597000
*5786303012
*5200036700
*58001 70900
*5800080100
*5534852000
DESCRIPTION
Table Assy, Reel
Band Assy, Brake; L
Lever, Brake Actuating
Spring, Brake
Solenoid, Brake
Counter
Hook, Spring
Belt, Counter
Bracket, Counter
Band Assy, Brake; R
Bracket, Transformer
Transformer, Power [U, C]
Transformer, Power (GE, L]
Transformer, Power [E, UK, A]
Holder, Resistor
Resistor, Nonflammable; 1.5kQ
Washer, Bakelite; 64 x $17 x t1
Motor, Reel
Clamper, Cord; E
Resistor, Nonflammable; 2502
Pin, Spring; 63 x 12
PCB Assy, REVERSE
Bracket, REVERSE PCB
Sheet, Reel
Felt, Brake
[U]:
[A]:
{L]:
U.S.A.
AUSTRALIA
LIMITED AREA
BN ch ee ED
X:3R
Parts marked with *require longer delivery time.
REMARKS
[C]:
{E]:
CANADA
EUROPE
1
22-4
A-4300
A-6600
A-450
[GE]:
[UK]:
GENERAL EXPORT
U.K.
19
