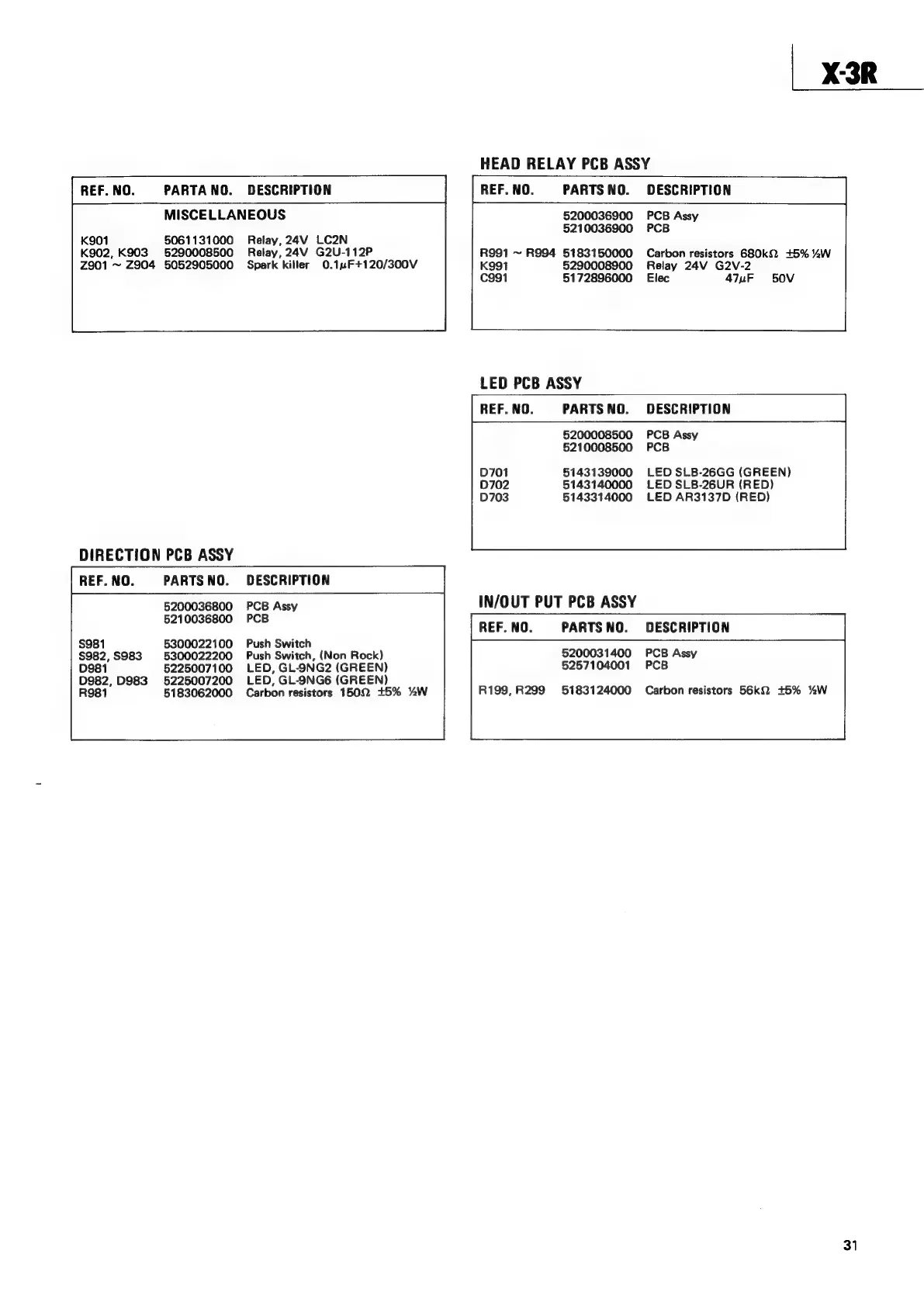

Teac X-3R - HEAD RELAY PCB ASSY COMPONENTS; LCD PCB ASSY COMPONENTS; IN;OUT PUT PCB ASSY COMPONENTS

X-3R
HEAD RELAY PCB ASSY
PARTANO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
MISCELLANEOUS 5200036900 PCB Assy
5210036900 PCB
K901 5061131000 Relay, 24V LC2N
K902, K903 5290008500 Relay, 24V G2U-112P R991 ~ R994 5183150000 Carbon resistors 680k2 +5% “AW
Z901 ~ Z904 5052905000 Spark killer 0.14F+120/300V K991 5290008900 Relay 24V G2V-2
c991 5172896000 Elec 47uF 50V
LED PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
5200008500 PCB Assy
5210008500 PCB
5143139000 LED SLB-26GG (GREEN)
5143140000 LED SLB-26UR (RED)
5143314000 LED AR3137D (RED)
DIRECTION PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
5200036800
PCB
Assy
IN/OUT
PUT
PCB
ASSY
5210036800 PCB
REF. NO. PARTS NO. DESCRIPTION
$981 5300022100 Push Switch
5200031400 PCB Assy
5257104001 PCB
$982,S983 5300022200 Push Switch, (Non Rock)
0981 5225007100 LED, GL-9NG2 (GREEN)
D982, D983 5225007200 LED, GL-9NG6 (GREEN)
R981 5183062000 Carbon resistors 15092 +5% “AW R199, R299 5183124000 Carbon resistors 56k2 +5% “AW
31
