Teac Z-6000 - 5 MECHANICAL ADJUSTMENTS AND CHECKS; CASSETTE HOLDER ADJUSTMENT; ADJUSTMENT OF CONTROL CAM POSITION

2-6000_

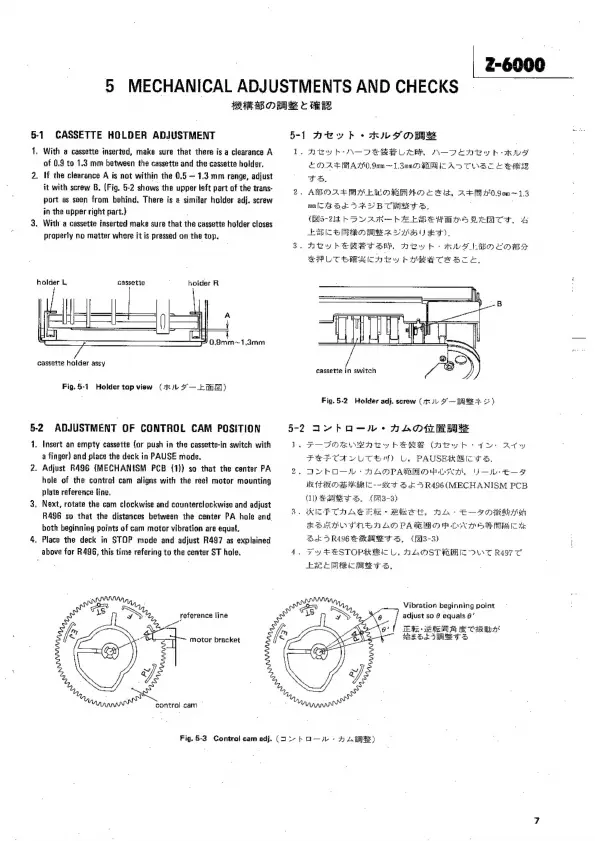

5 MECHANICAL ADJUSTMENTS AND CHECKS
HEE ABODE & MERE
5-1 CASSETTE HOLDER ADJUSTMENT
1. With a cassette inserted, make sure that there is a clearance A
af 0.9 to 1.3 mm between the cassette and the cassette holder.
2. If the clearance A is not within the 0.5 — 1.3 mm range, adjust
it with screw B. (Fig. 5-2 shows the upper teft part of the trans-
port as seen from behind, There is 4 similar holder adj. screw
in the upper right part.}
3. With a cassette inserted make sure that the cassette holder closes
properly no matter where it is pressed on the top.
holder L cassette holder R
=
0.3mm~ 1.3mm
cassette holder assy
Fig. 5-1 Holder top view (7b 9 — Li)
5-2 ADJUSTMENT OF CONTROL CAM POSITION
1. Insert an empty cassette (or push in the cassette-in switch with
a finger) and place the deck in PAUSE mode.
2. Adjust R496 {MECHANISM PCB (1}} so that the center PA
hole of the contra! cam aligns with the reel motor mounting
plate reference tine.
3. Next, rotate the cam clockwise and counterclockwise and adjust
R496 so that the distances between the center PA hole and
both beginning points of cam motor vibration are equal,
4, Place the deck in STOP mode and adjust R497 as explained
above for R496, this time refering to the center ST hole.
control cam ©
5-1 AkRy b + RNS ORE
1. ACwh-\-VeBBSLEAR, AN—VEARY h- AILS
EDALBADO 9am —~ L.3anM aR CAD COSCO & SHEER
tS.
2. AMOALMA LIMA POt Blt, ALMDO.Oam~-1,3
muICHSAARVERCHESS.
(Bi5-2i¢ KS VAK~bhALMEEHOS REMCH. ty
ESRI SIT AER Y 505 U ETH).
3. ALYhKEBSIS. Hey kh: HVT LMOLOMD
SM LURIRKICH Ey KEE THSCE,
—_ NK
cassette in switch
Fig.5-2 Holder adi. screw (RL 9 — sae)
§-2 2’ bha-wt-AADMEMS
Ll. FOIOEWEN Gy ba (APY bh th: Atty
FeEFCAY LTH MN) L, PAUSEREIC TS.
2. DY bO-s AAMPARHO HERA, UID -E-F
HX TARO BME IC -- det SAD R4IV6 (MECHANISM PCB
(1) PETS. (1R13-3)
3. KICECAAS hike > MRE tt, AAs ESO AA
KSAT AD PA FEO HL DF ETB IC
SASRAVG SHAPES S, (13-3)
1. Fy PESTOPRIRCL, ALMOST HAI DUT RAITT
be EMIT YS,
Vibration beginning point
adjust so @ equals @’
of TESR aS ee CiReDAS
WESLIMMTS
Fig. 5-3 Control cam adj. (> } O— 4 - > AEBS)
