Teac Z-6000 - PINCH ROLLER HEIGHT ADJUSTMENT; ERASE HEAD POSITION CHECK AND ADJ.; REC & PLAY HEAD ADJUSTMENT

2-6000 |

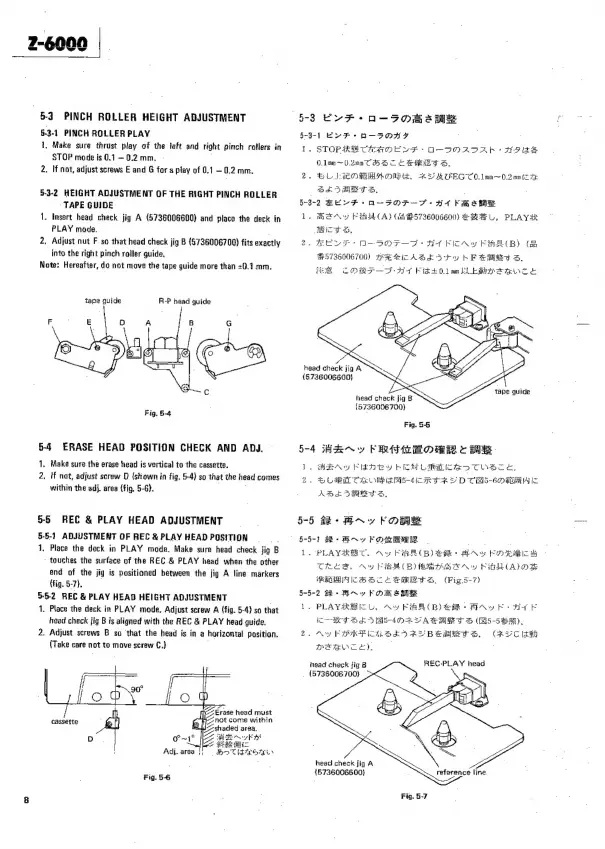

5-3 PINCH ROLLER HEIGHT ADJUSTMENT
5-3-1 PINCH ROLLER PLAY
1, Make sure thrust play of the feft and right pinch rollers in
STOP mode is 0.1 — 0.2 mm.
2, If not, adjust screws E and G for a play of 0.1 —0,2 mm.
5-3-2 HEIGHT ADJUSTMENT OF THE RIGHT PINCH ROLLER
‘TAPE GUIDE
1. Insert head check jig A (5736006600) and place the deck in
PLAY mode.
2. Adjust nut F so that head check jig B (5736006700) fits exactly
into the right pinch roller guide.
Note: Hereafter, do not move the tape guide more than «0.2. mm.
tape guide
R-P head guide
Fig, 5-4
5-4 ERASE HEAD POSITION CHECK AND ADJ.
1. Make sure the erase head is vertical to the cassette.
2. If nat, adjust screw D {shown in fig, 5-4} so that the head comes
within the adj. area (fig. 5-6).
5-5 REC & PLAY HEAD ADJUSTMENT
5-5-1 ADJUSTMENT OF REC&PLAYHEADPOSITION
1, Place the deck in PLAY mode. Make sure head check jig B
‘ touches the surface of the REC & PLAY head when the other
end of the jig is positioned between the jig A line markers
{fig. 5-7}.
5-62 REC & PLAY HEAD HEIGHT ADJUSTMENT
1. Place the deck in PLAY mode. Adjust serew A (fig. 5-4) so that
head check fig B is aligned with the REC & PLAY head guide.
2. Adjust screws B so ‘that the head is in a horizontal position.
(Take care not to move serew C.}
sotie
90°
oO
52 Erase head must
cassette <not come within
D.. o~1"
Adj. area |; | BOTT
Fig. 5-6
(§-3 Ev F+o-SOHS
5-3-1 EV F + B—-SOHY
1. STOPRBCAAOEVYF- O-SMASAL + HPS
O.lon~0.20CTHS Ot SHES SB
2. BLIACOMRAN OMA, BY AOEG CO lmn~ 0.2 mice
SAD ME TS, -
5-3-2 HUY F + -FOF—-T- Ht FRAME
1. meNy Fi (A) (6 B57960066(K)) SIL, PLAY
RBITT S,
_REDE-
1(B)
(Ser
W-SsoOr—DP-He FicAy FRA
head check jig A
(5.736006600}
tape guide
head check jig B
(5736006700)
Fig. 55
5-4 HA~y FRIMBORR & Ae
1. iRtRAw Fldh ty bIzs T LAR IC > TW CE.
2. H CaM TEA MS-4ICR RY D CS GORA
ADA DMBY S,
5-5 48+ ny FOR =
| §-5-1 G+ Hin y F Ofte
1. PLAYIRHEC. Ay FRE (BSE + HAW Fosigics -
THRE, Ny Fie B) tty BHA) MOLE
BR AICHAC LER S,
5-5-2 &- Bay FOR SMe
1. PLAYARBBICL, Av FIRB (CB) GER A Ke AY KE
IOS HAS MS-4O RLV A SRT S (RIS-5 AA)
2. Av FOAGFICLLSRKARYV BEATS. (KVC lah
PEBOIE
4) oS aN a By
(Fig.5-7)
head check jig B
_ (5736006700}
REC-PLAY head
head check jig A
{5736006600}
reference line.
Fig. 5-7
