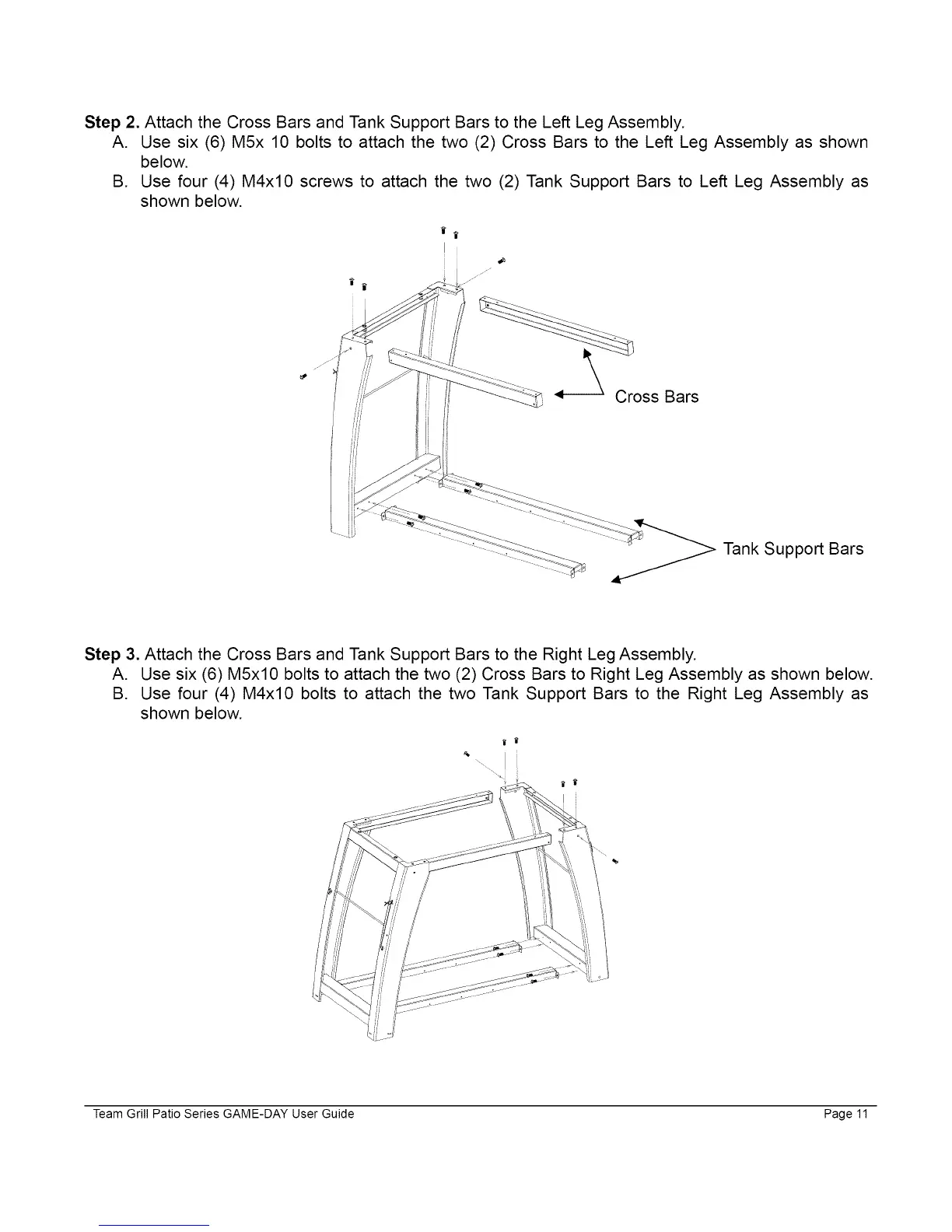

Step 2. Attach the Cross Bars and Tank Support Bars to the Left Leg Assembly.
A. Use six (6) M5x 10 bolts to attach the two (2) Cross Bars to the Left Leg Assembly as shown
below.
B. Use four (4) M4xl0 screws to attach the two (2) Tank Support Bars to Left Leg Assembly as
shown below.
I
_-_ Cross Bars
Tank Support Bars
Step 3. Attach the Cross Bars and Tank Support Bars to the Right Leg Assembly.
A. Use six (6) M5xl0 bolts to attach the two (2) Cross Bars to Right Leg Assembly as shown below.
B. Use four (4) M4xl0 bolts to attach the two Tank Support Bars to the Right Leg Assembly as
shown below.
Team Grill Patio Series GAME-DAY User Guide Page 11
