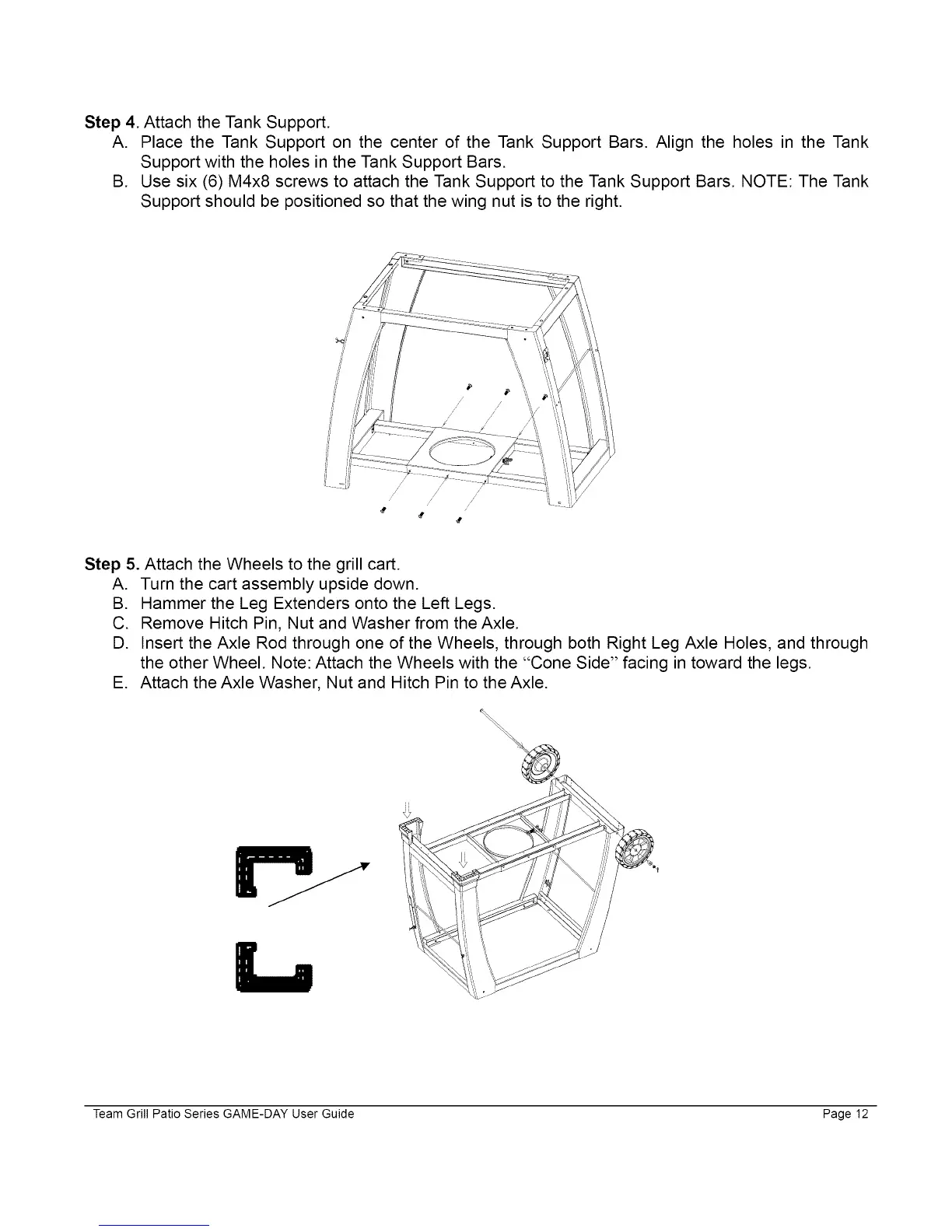

Step 4. Attach the Tank Support.
A. Place the Tank Support on the center of the Tank Support Bars. Align the holes in the Tank
Support with the holes in the Tank Support Bars.
B. Use six (6) M4x8 screws to attach the Tank Support to the Tank Support Bars. NOTE: The Tank
Support should be positioned so that the wing nut is to the right.
Step 5. Attach the Wheels to the grill cart.
A. Turn the cart assembly upside down.
B. Hammer the Leg Extenders onto the Left Legs.
C. Remove Hitch Pin, Nut and Washer from the Axle.
D. Insert the Axle Rod through one of the Wheels, through both Right Leg Axle Holes, and through
the other Wheel. Note: Attach the Wheels with the "Cone Side" facing in toward the legs.
E. Attach the Axle Washer, Nut and Hitch Pin to the Axle.
