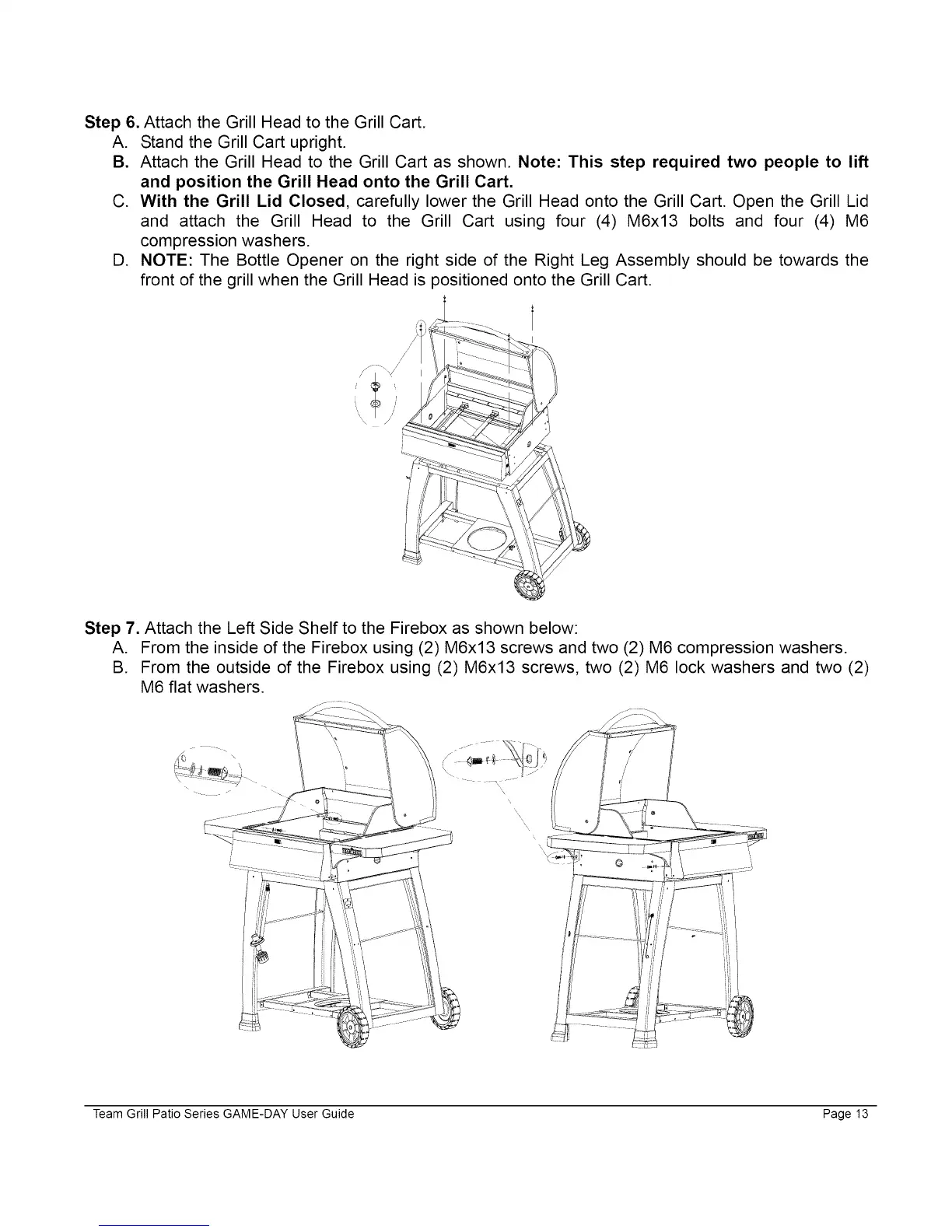

Step 6.
A.
B.
C.
D.
Attach the Grill Head to the Grill Cart.
Stand the Grill Cart upright.
Attach the Grill Head to the Grill Cart as shown. Note: This step required two people to lift
and position the Grill Head onto the Grill Cart.
With the Grill Lid Closed, carefully lower the Grill Head onto the Grill Cart. Open the Grill Lid
and attach the Grill Head to the Grill Cart using four (4) M6x13 bolts and four (4) M6
compression washers.
NOTE: The Bottle Opener on the right side of the Right Leg Assembly should be towards the
front of the grill when the Grill Head is positioned onto the Grill Cart.
Step 7. Attach the Left Side Shelf to the Firebox as shown below:
A. From the inside of the Firebox using (2) M6x13 screws and two (2) M6 compression washers.
B. From the outside of the Firebox using (2) M6x13 screws, two (2) M6 lock washers and two (2)
M6 flat washers.
,\
Team Grill Patio Series GAME-DAY User Guide Page 13
