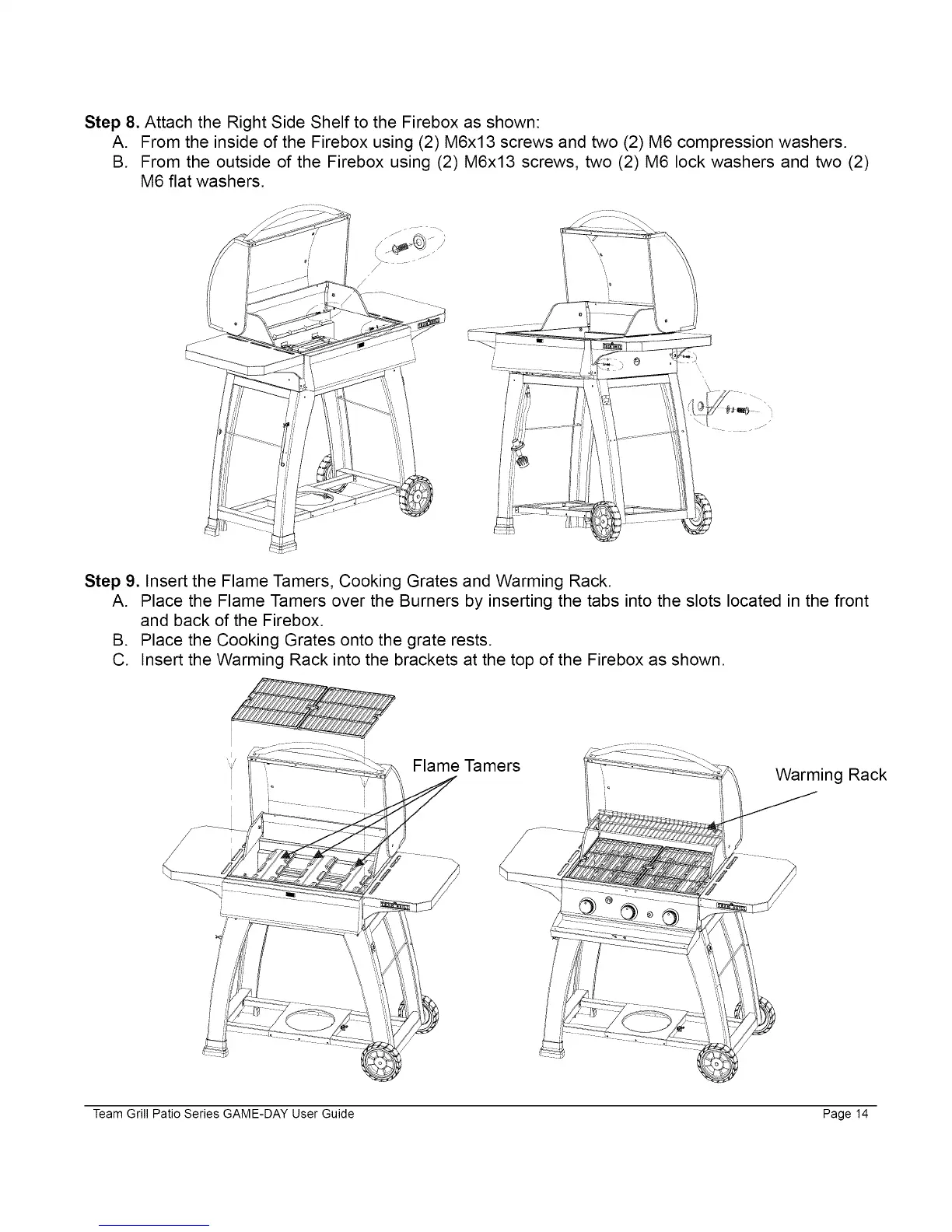

Step 8. Attach the Right Side Shelf to the Firebox as shown:
A. From the inside of the Firebox using (2) M6x13 screws and two (2) M6 compression washers.
B. From the outside of the Firebox using (2) M6x13 screws, two (2) M6 lock washers and two (2)
M6 flat washers.
Step 9. Insert the Flame Tamers, Cooking Grates and Warming Rack.
A. Place the Flame Tamers over the Burners by inserting the tabs into the slots located in the front
and back of the Firebox.
B. Place the Cooking Grates onto the grate rests.
C. Insert the Warming Rack into the brackets at the top of the Firebox as shown.
Flame Tamers
Warming Rack
Team Grill Patio Series GAME-DAY User Guide Page 14
