Team Orion Vortex R8.1 pro User Manual

6 Copyright Team Orion © 2015
MOTOR CONNECTION
Sensorless brushless motors
If the motor spins in the wrong direction, you can reverse
two of the motor wires or change setting #12
Sensor brushless motors
You must respect the ABC wire order and use a separate
sensor wire. Use setting #12 to change the motor rotation
direction.
WARNING! If you do not respect the ABC wire order, the
motor will not spin and you risk damaging the ESC.

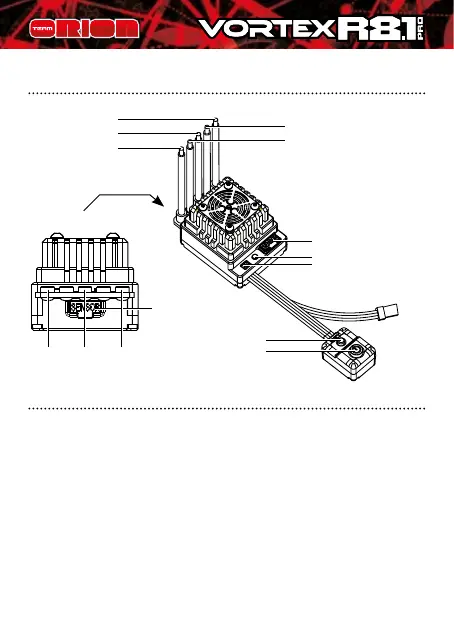

CONNECTIONS
C
B
A
Programming
Port
LED
Fan Connector
RX
Setup
On/O
-
+
C B A
Sensor
Port
Rear View

Team Orion Vortex R8.1 pro Specifications

General

Brand	Team Orion
Model	Vortex R8.1 pro
Category	Controller
Language	English
