5 TECHNICAL DESCRIPTION OF
THE DISPLAY CASE

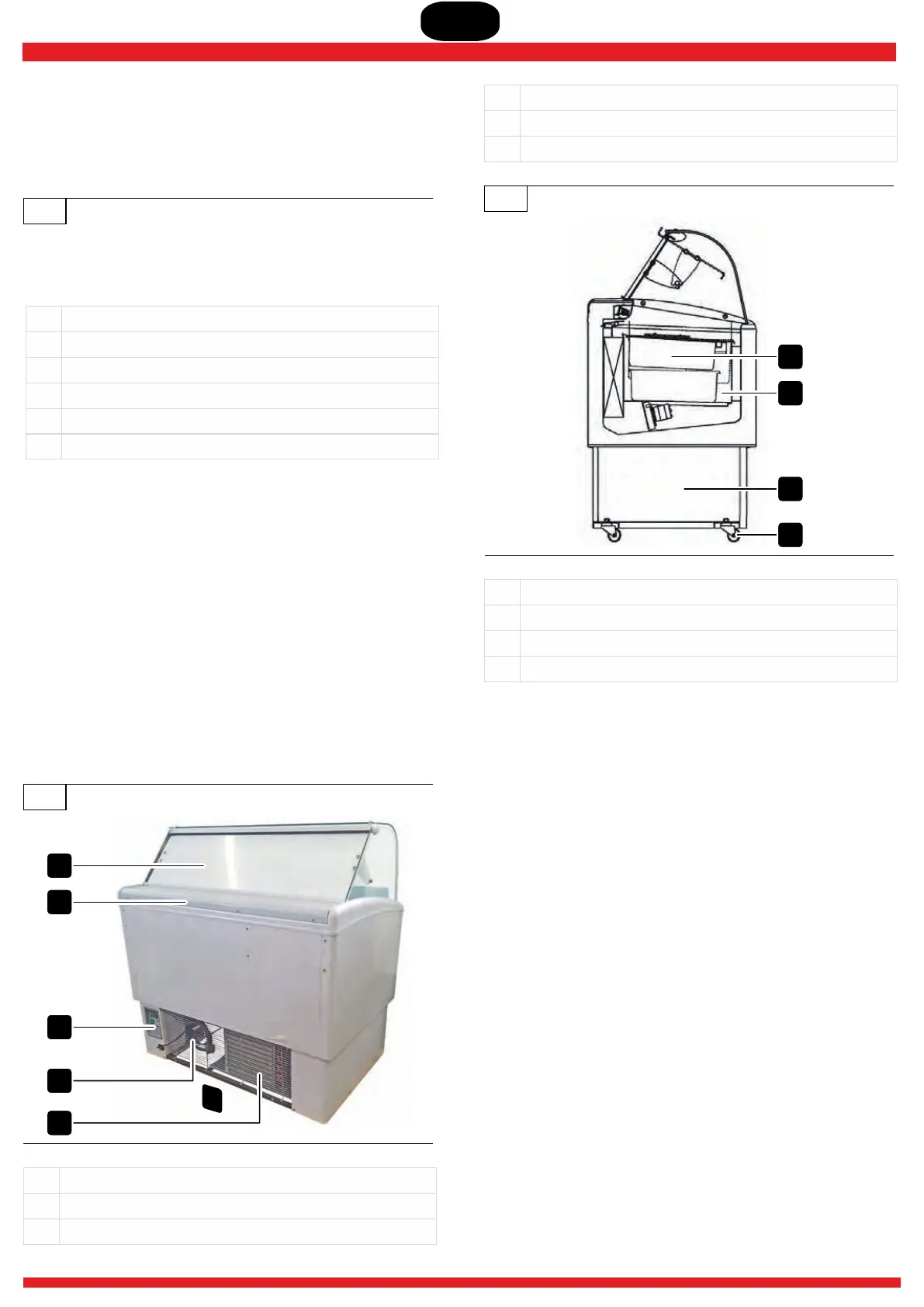

5.1 OVERALL VIEW
20
Front view (customer side)
1 Glass superstructure
2 Lamp for lighting the display area
3 Display tray
4 Front ventilation grille
A Front side (customer side)
B Lateral side
21
Rear view (operator side)
5
6
7
8
9
C
5 Flap
6 Worktop
7 Control panel
8 Power cord
9 Motor / condenser compartment
C Operator side
22
Interior view
10
3
9
11
3 Display tray
9 Motor / condenser compartment
10 Ice cream tubs
11 Castors
GLASS STRUCTURE (1)
The glass structure is composed of two glass side panels and
a front window that makes it possible to: protect the contents
of the display section from foreign matter and create a system
that, together with the other elements, con guarantee the
technical characteristics of the display case.
The glass is made with a specific and carefully-designed
geometric shape in order to ensure maximum safety for
the operator and above all for the client. All the glass can
be dismounted simply by removing the screws and the
connection bar. We recommend performing these operations
with the maximum care, observing the indications listed in the
maintenance chapter.
The glass structure is completed by the flip-up panel. This is
a mobile component to allow access to the internal part of the
display section in order to reach the ice cream. The flip-up
panel is made of synthetic material that is anchored laterally to
the two side windows, and it can be raised (to scoop ice cream)
or lowered (rest phase) manually by the operator.
DISPLAY SECTION (3)
The display section is the area in the display case that holds
