User’s manual
STEP 2: Switch on the power supply and check if the devices work
Use Manual operation function in order to check if particular devices work properly. Use
▲ and ▼ to select the device and press MENU – the device should switch on. Follow this
procedure to check all the devices.
STEP 3: Activate the Internet module
L-7 external controller is compatible with ST-507 and WiFi RS.
WiFi RS uses WiFi wireless network whereas ST-507 needs to be connected to a router with
RJ45 network cable.

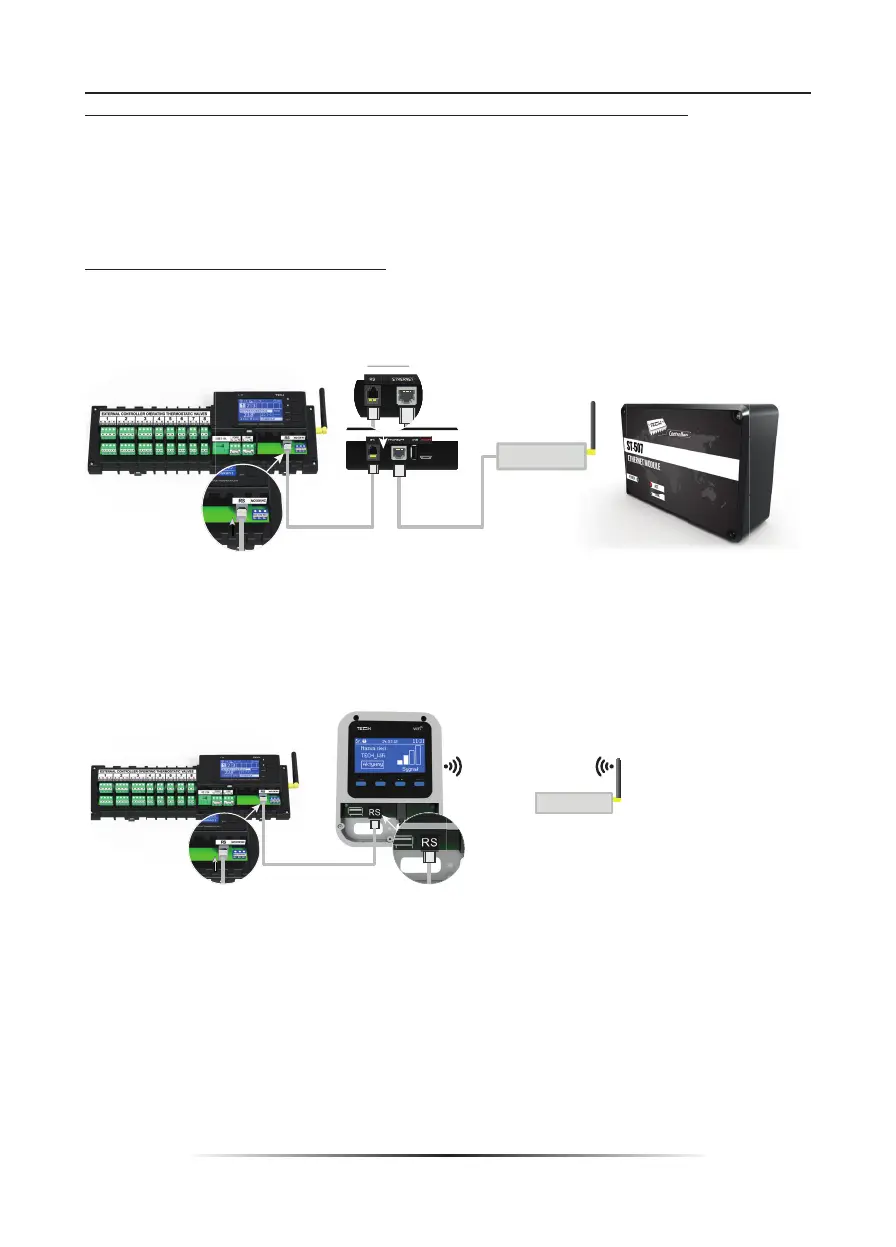

Connection diagram for ST-507 Internet module.
Connection diagram for WiFi RS.
ST-507 Internet module or WiFi RS should be connected as illustrated in the diagrams
steps are described in detail in the instruction manual for the Internet module.
