OPERATING INSTRUCTIONS
Important information
Target group
x Qualified craftsmen
x Specialist personnel trained by Techem
Device properties
x Heat accumulator with declared MID conformity - cold storage system with national
authorisation.
x The computer unit is non-detachable. It has no internal stop and can be rotated as
desired.
x Available as an m-bus version or with pulse output.
x Supplied with 2 free temperature sensors.
Assembly
Requirements
x The heat meter must be protected against magnetite and dirt for the device’s entire
working life.
x Shut-o devices must be installed in front of the strainer and behind the heat meter.
x Only install the heat meter in the section for which it is constructed - the outlet variant in
the low temperature section (outlet) and the inlet variant in the high temperature section
(inlet). Observe the name plate.
Installing the measuring capsule heat meter
!
If possible, use the same installation method within one property!
The display must be accessible at all times and readable without further aids.
The meter may only be installed in the original connector.
Calibration-relevant heat meter seals may neither be damaged nor removed.
Otherwise the guarantee and validity of the device calibration is void.
In order to avoid the formation of condensate when installing in cold water,
cooling water and refrigeration circuits etc., the meter must be fully insulated on
the part of the building owner!

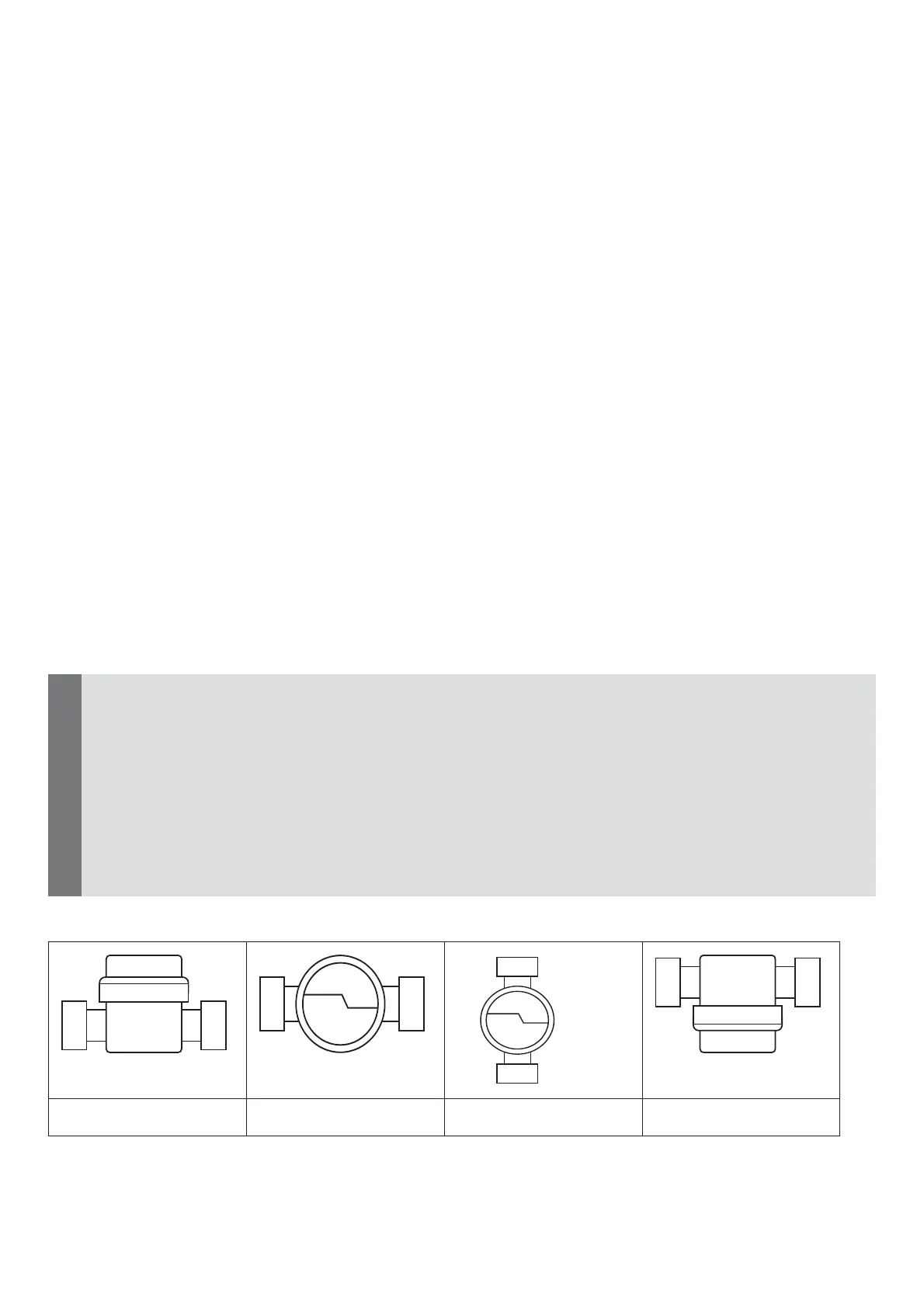

Approved installation positions
