UPGRADE PAGE

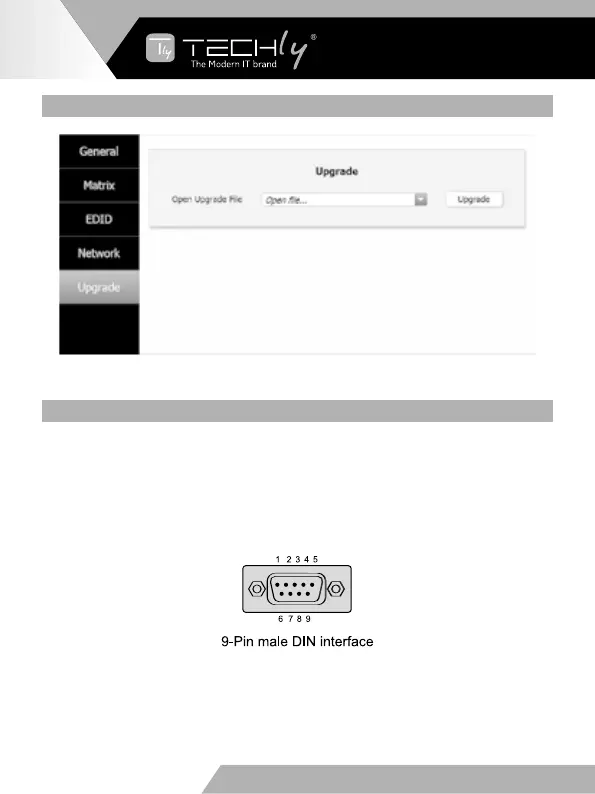

➀ Open upgrade file, then click the “Upgrade” button.
8. ASCII CONTROL COMMAND
TheproductalsosupportsASCIIcontrol.YouneedtoaRS-232maleheadwith
DB9 transfer USB male head serial cable. The RS-232 head of the serial cable is
connectedtheRS-232controlportwithDB9attherearoftheMatrix,andtheUSB
head of the serial cable is connected a PC. Open any of a Serial Command tool on
PC such as “Docklight” to send command to control the Matrix.
ThefellowingisshownRS-232pin’sdefinitionandconnectionway.
EN - 14
