1000BASE-T1 MediaConverter EMC User Manual

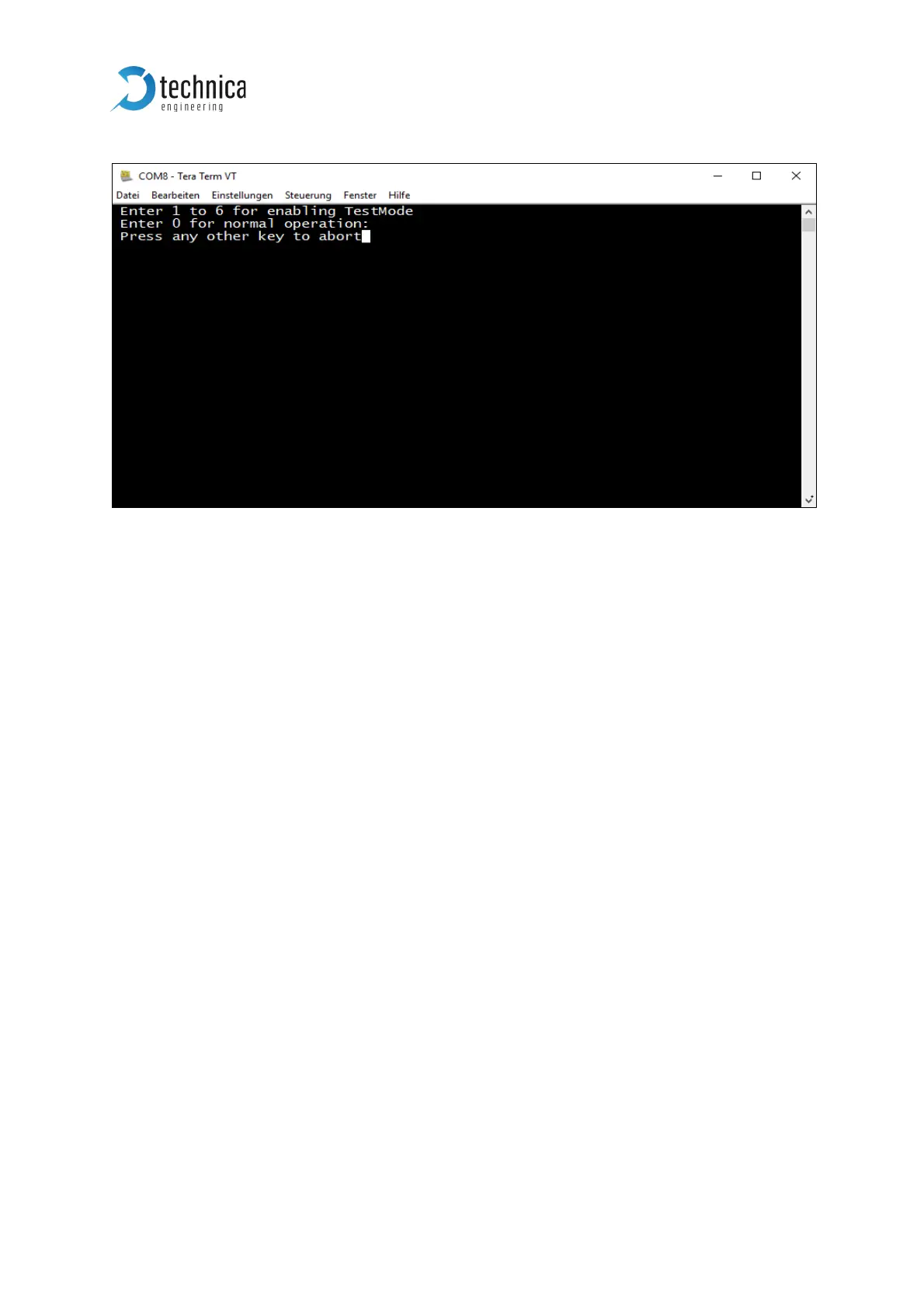

Figure 5-3: TestMode Menu

5.4.2 TestModes

There are 6 TestModes (1 to 6) for 1000BASE-T1 and 5 TestModes (1 to 5) for

100BASE-T1. “0” for normal operation.

TestModes for 100BASE-T1:

0: Normal Operation

1: Droop

2: Transmitter Jitter and Clock Frequency (Master)

3: Transmitter Jitter (Slave)

4: Distortion

5: PSD & Peak Differential Output

TestModes for 1000BASE-T1:

0: Normal Operation

1: Setting MASTER and SLAVE PHYs for transmit clock jitter test in linked mode

2: Transmit MDI jitter test in MASTER mode

3: Reserved

4: Transmit distortion test

5: Normal Operation in Idle Mode. This is for the PSD Mask test

6: Transmitter droop test mode
