5.4.3 Examples
In the following figure you can see some examples of the output during different
TestModes.
5.4.3.1 DUT in 100BASE-T1 Mode
TestMode 0:

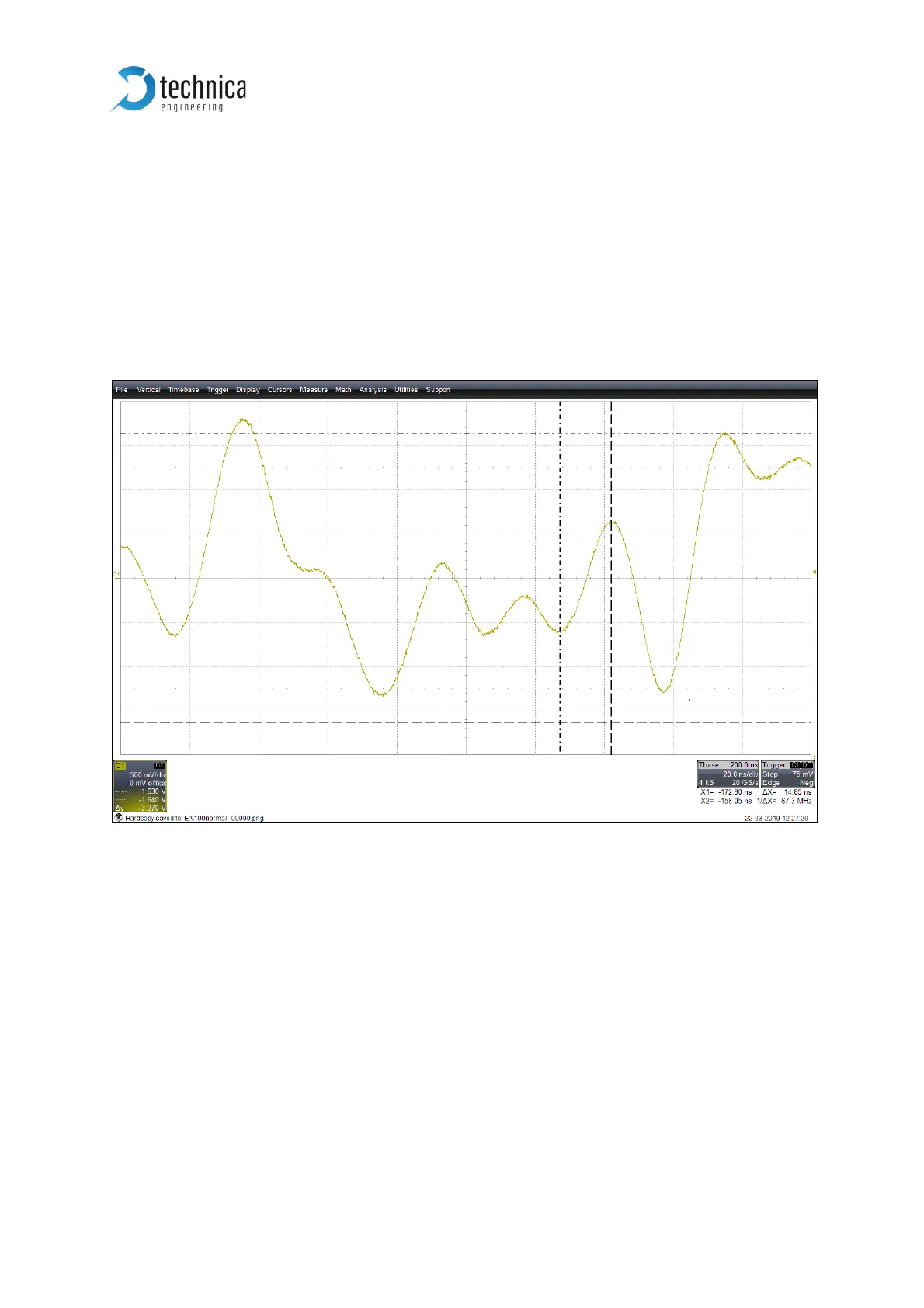

Figure 5-4: Normal Operation for 100BASE-T1 Mode
