Technicolor TC4310 - Installation Procedure for Connecting to the Ethernet Interface

Page12 / 27
TC4310 User’s guide
Attaching the Cable TV Wire to the Cable Modem
1. Locate the Cable TV wire. You may find it one of three ways:
a. Connected directly to a TV, a Cable TV converter box, or VCR. The line will be connected to
the jack, which should be labeled either IN, CABLE IN, CATV, CATV IN, etc.
b. Connected to a wall-mounted cable outlet.
c. Coming out from under a baseboard heater or other location. See Figure 1-6 for the wiring
example.
Notes:Foroptimumperformance,besuretoconnectyour
CableModemtothefirstpointthecableentersyourhome.
Thesplittermustberatedforatleast1GHz.

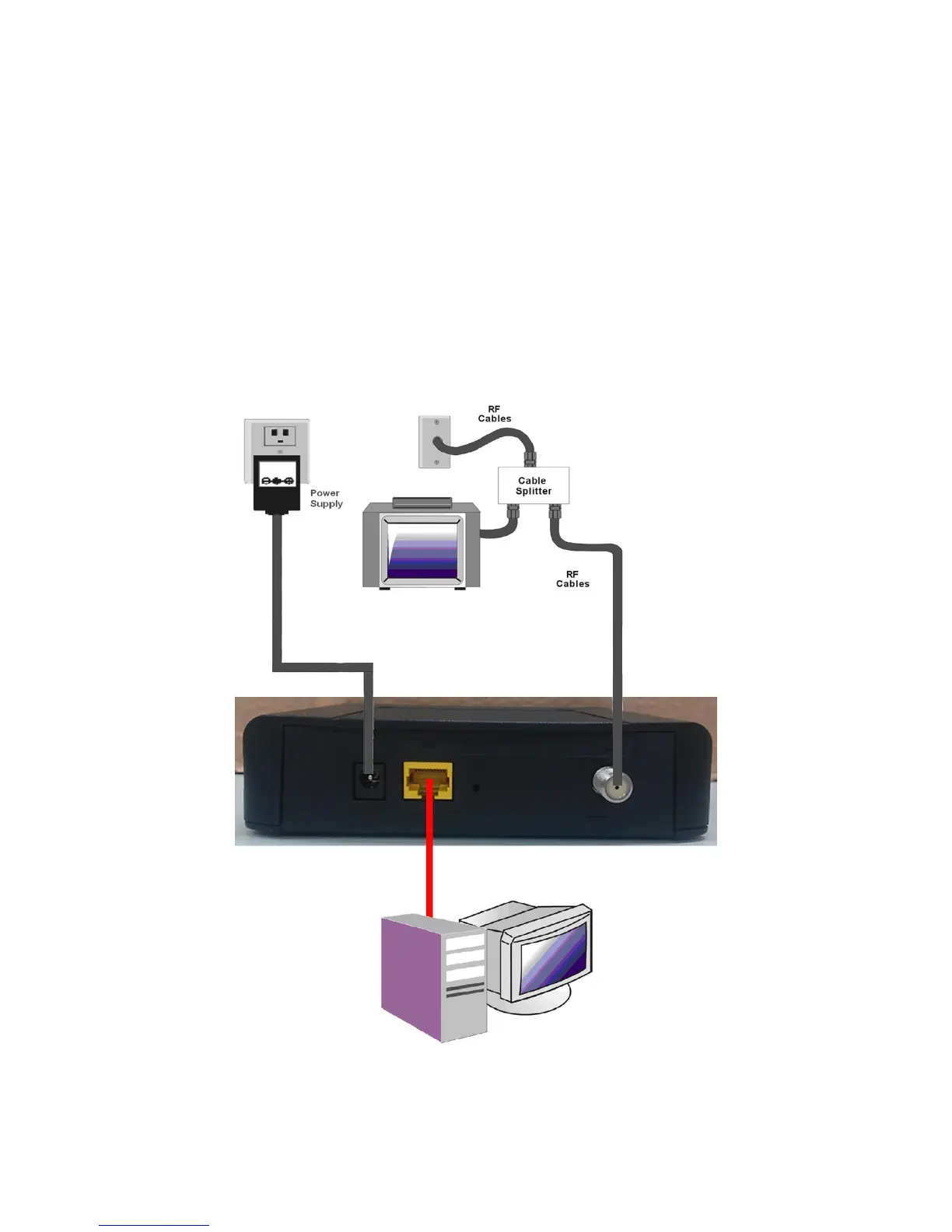

Fig. 1-6 Connect to the
Modem
