RS-B555
Ref.
No.
11

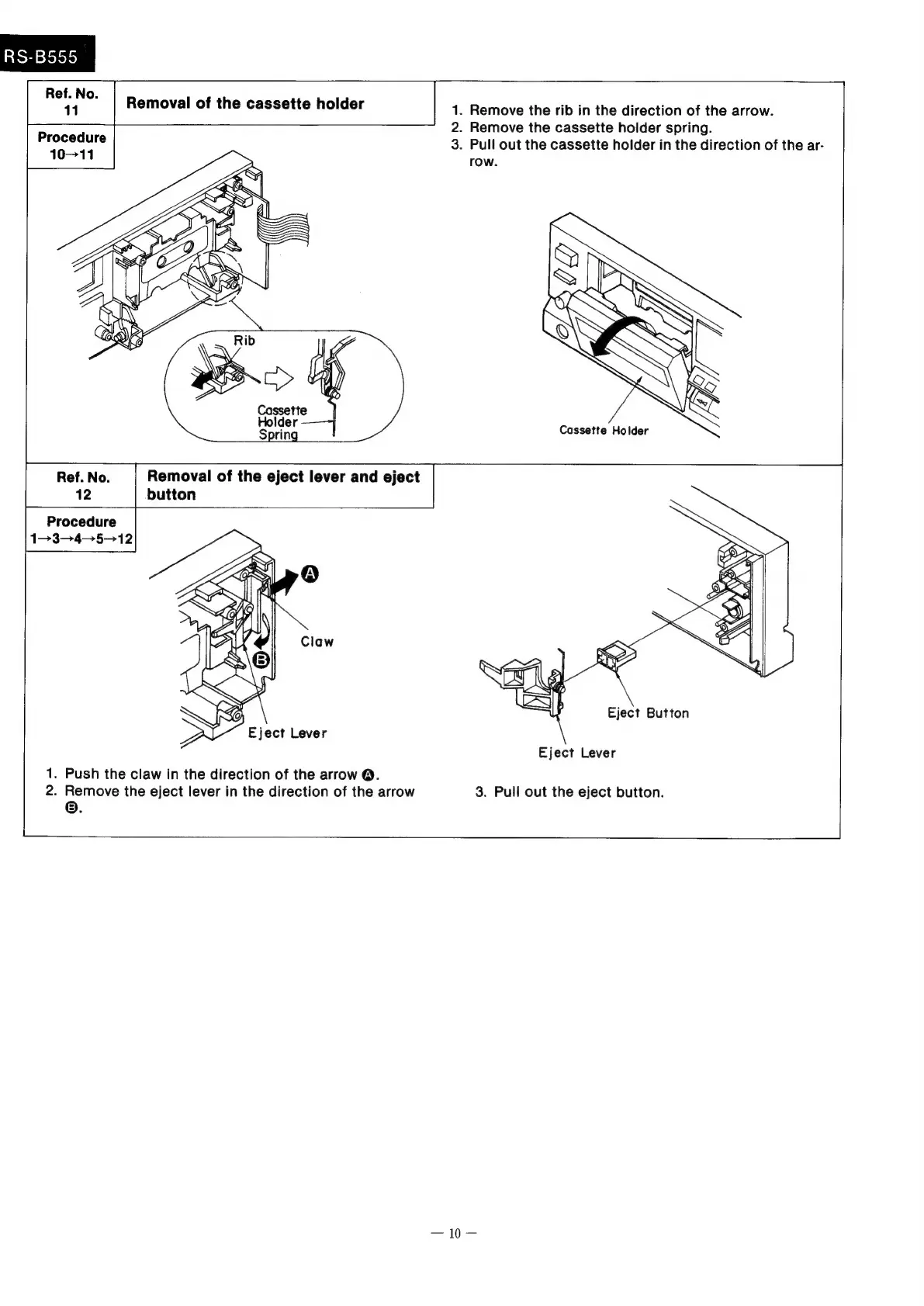

Procedure
Removal
of
the
cassette
holder
|
1.
Remove
the
rib
in
the
direction
of
the
arrow.
2.
Remove
the
cassette
holder
spring.
3.
Pull
out
the
cassette
holder
in
the
direction
of
the
ar-
row.
Cassette
Holder
Procedure
1-3--4—5-12
1.
Push
the
claw
in
the
direction
of
the
arrow
®.
2.
Remove
the
eject
lever
in
the
direction
of
the
arrow
Removal
of
the
eject
lever
and
eject
button
Eject
Button
Eject
Lever
3.
Pull
out
the
eject
button.
