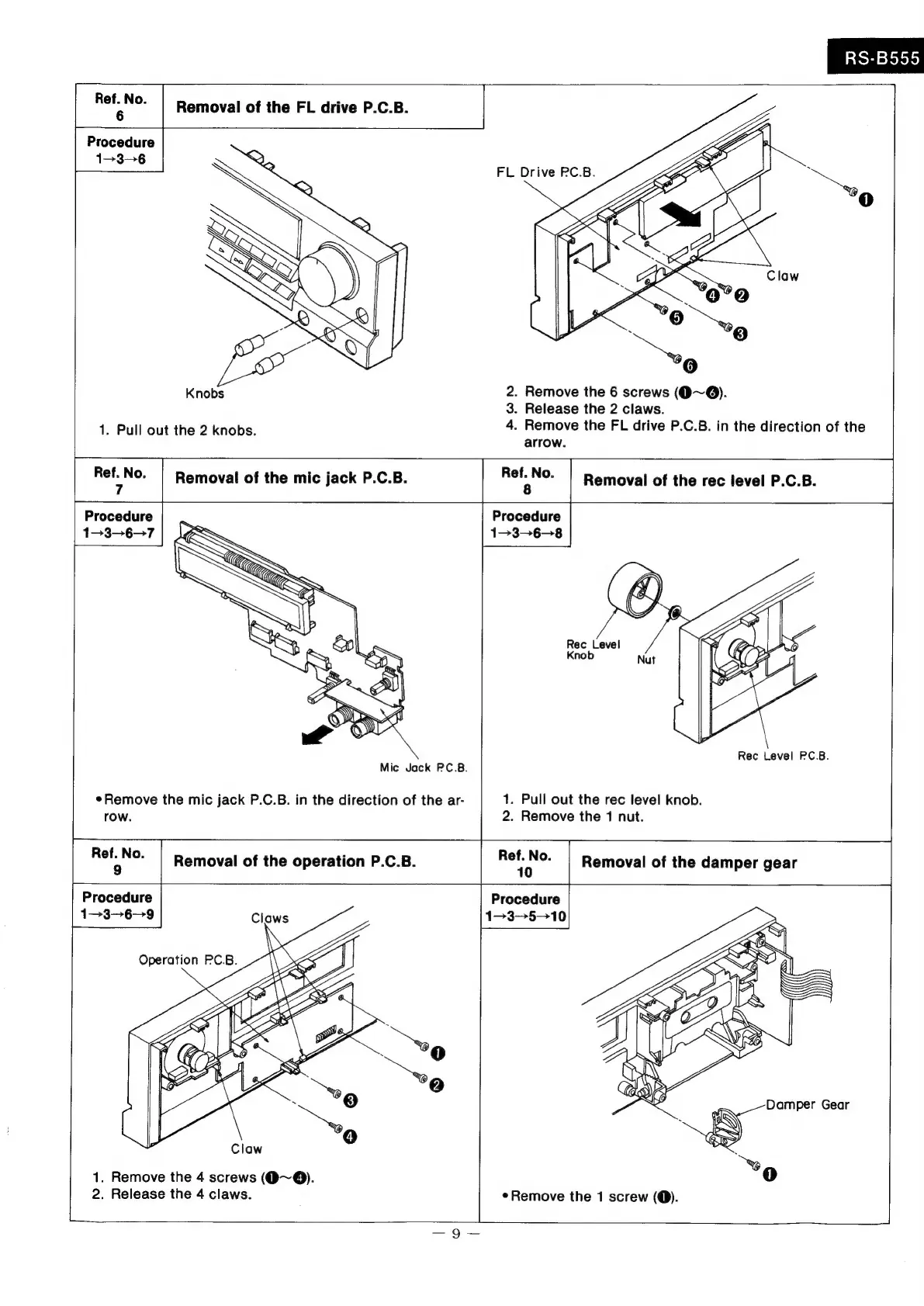

Technics RS-B555 - Printed Circuit Board Removal; Specific PCB Removal Steps

Ref. No.
6 Removal of the FL drive P.C.B.
Procedure
Knobs
1. Pull out the 2 knobs.
J
RS-B555
2. Remove the 6 screws (9~@).
3. Release the 2 claws.
4. Remove the FL drive P.C.B. in the direction of the
arrow.
| Ref. No. Removal of the mic jack P.C.B.
Ref. No.
3 Removal of the rec level P.C.B.
Procedure
1->3--6--7
Mic Jack PC.B.
¢Remove the mic jack P.C.B. in the direction of the ar-
row.
Ref. No.
9 Removal of the operation P.C.B.
Procedure
1—-3-6-—-8
Rec Level
Knob
Rec Level PC.B.
1. Pull out the rec level knob.
2. Remove the 1 nut.
Removal of the damper gear
| Procedure
1—3-—6—9
1. Remove the 4 screws (Q@~®).
2. Release the 4 claws.
eases
Procedure
‘Se
oO
