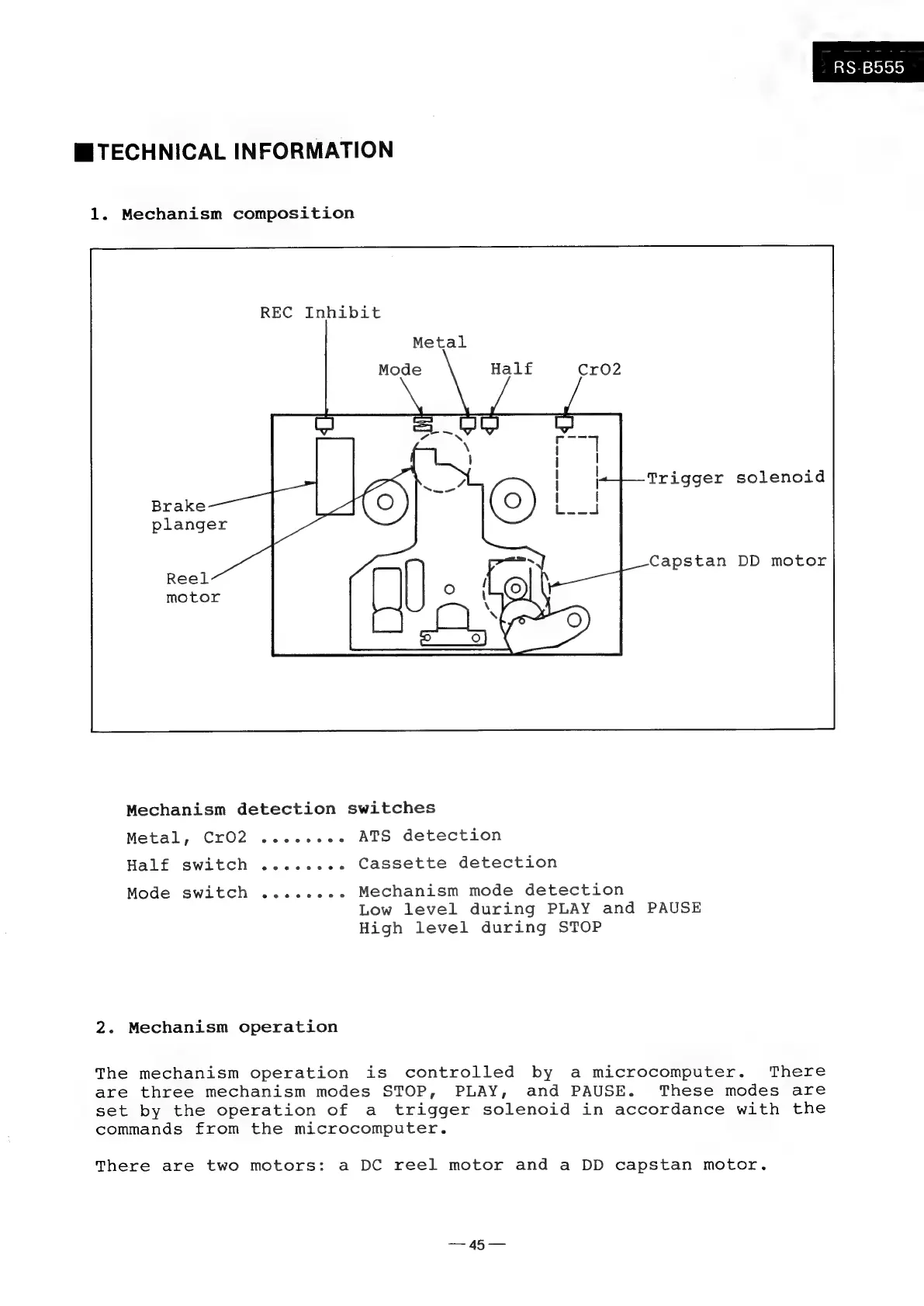

1. Mechanism composition
REC Inhibit
Trigger solenoid
Capstan DD motor
Mechanism detection switches
Metal
(Cr02
<.s.e6s«
ATS
detection
Half
switch
......
..
Cassette
detection
Mode
switch
.......-.
Mechanism
mode
detection
Low
level
during
PLAY
and
PAUSE
High
level
during
STOP
2. Mechanism operation
The mechanism operation is controlled by a microcomputer. There
are three mechanism modes STOP, PLAY, and PAUSE. These modes are
set by the operation of a trigger solenoid in accordance with the
commands from the microcomputer.
There are two motors: a DC reel motor and a DD capstan motor.
