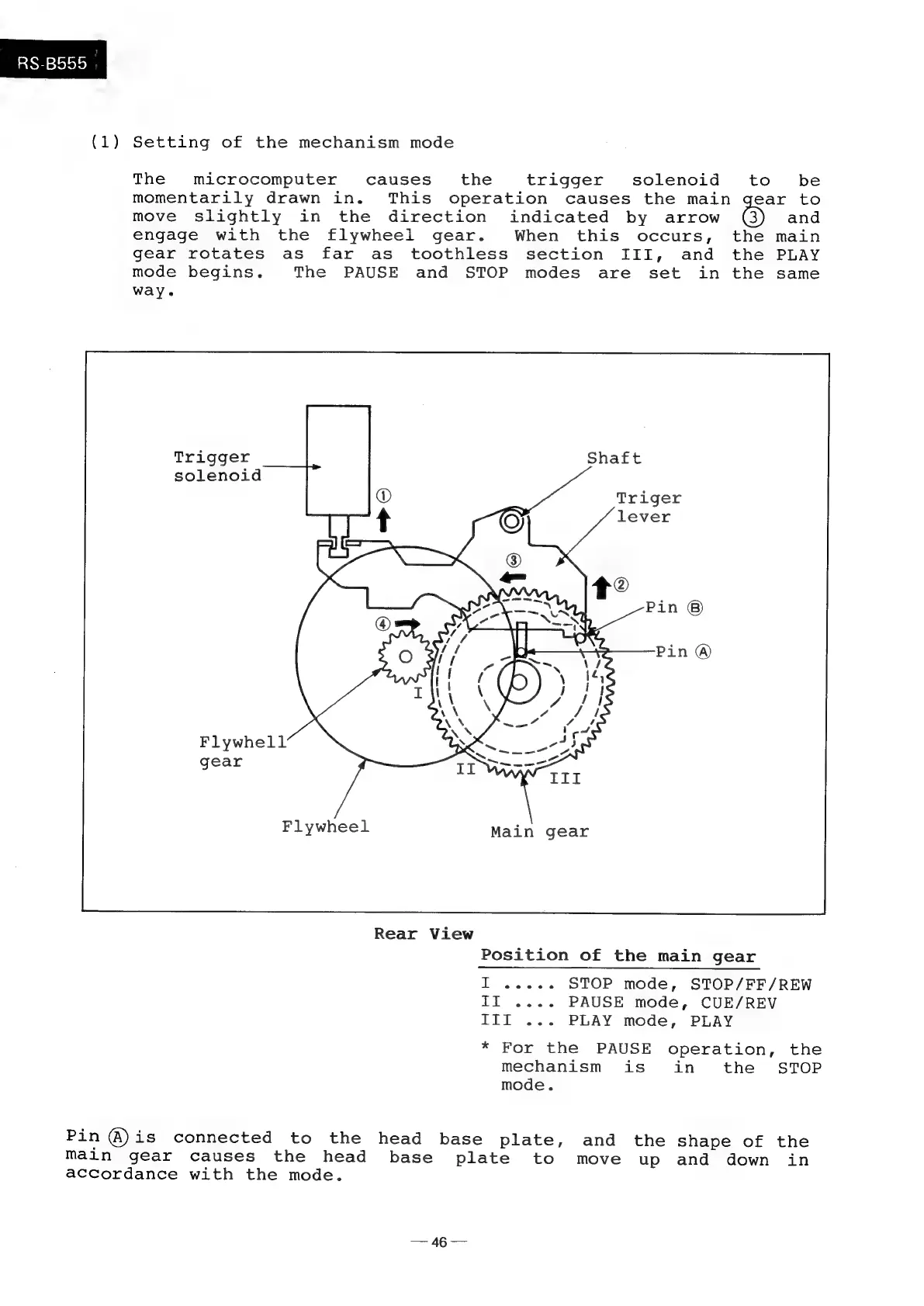

Setting
of
the
mechanism
mode
The
microcomputer
causes-~
the
trigger
solenoid
to
be
momentarily
drawn
in.
This
operation
causes
the
main
gear
to
move
slightly
in
the
direction
indicated
by
arrow
and
engage
with
the
flywheel
gear.
When
this
occurs,
the
main
gear
rotates
as
far
as
toothless
section
III,
and
the
PLAY
mode
begins.
The
PAUSE
and
STOP
modes
are
set
in
the
same
way.
Trigger
solenoid
Flywheel
Main
gear
Rear
View
Position
of
the
main
gear
DT
scene
STOP
mode,
STOP/FF/REW
II
....
PAUSE
mode,
CUE/REV
III
...
PLAY
mode,
PLAY
*
For
the
PAUSE
operation,
the
mechanism
is in
the
STOP
mode.
Pin
@)is
connected
to
the
head
base
plate,
and
the
shape
of
the
Main
gear
causes
the
head
base
plate
to
move
up
and
down
in
accordance
with
the
mode.
