(2) Operation of the reel tables
The reel tables are rotated by the reel motor. During PLAY,
the motor rotates in the direction indicated by arrow ;
thus causing the swing gear and the take-up reel table to
engage so that the take-up reel table rotates. The winding
torque is determined by the reel motor.

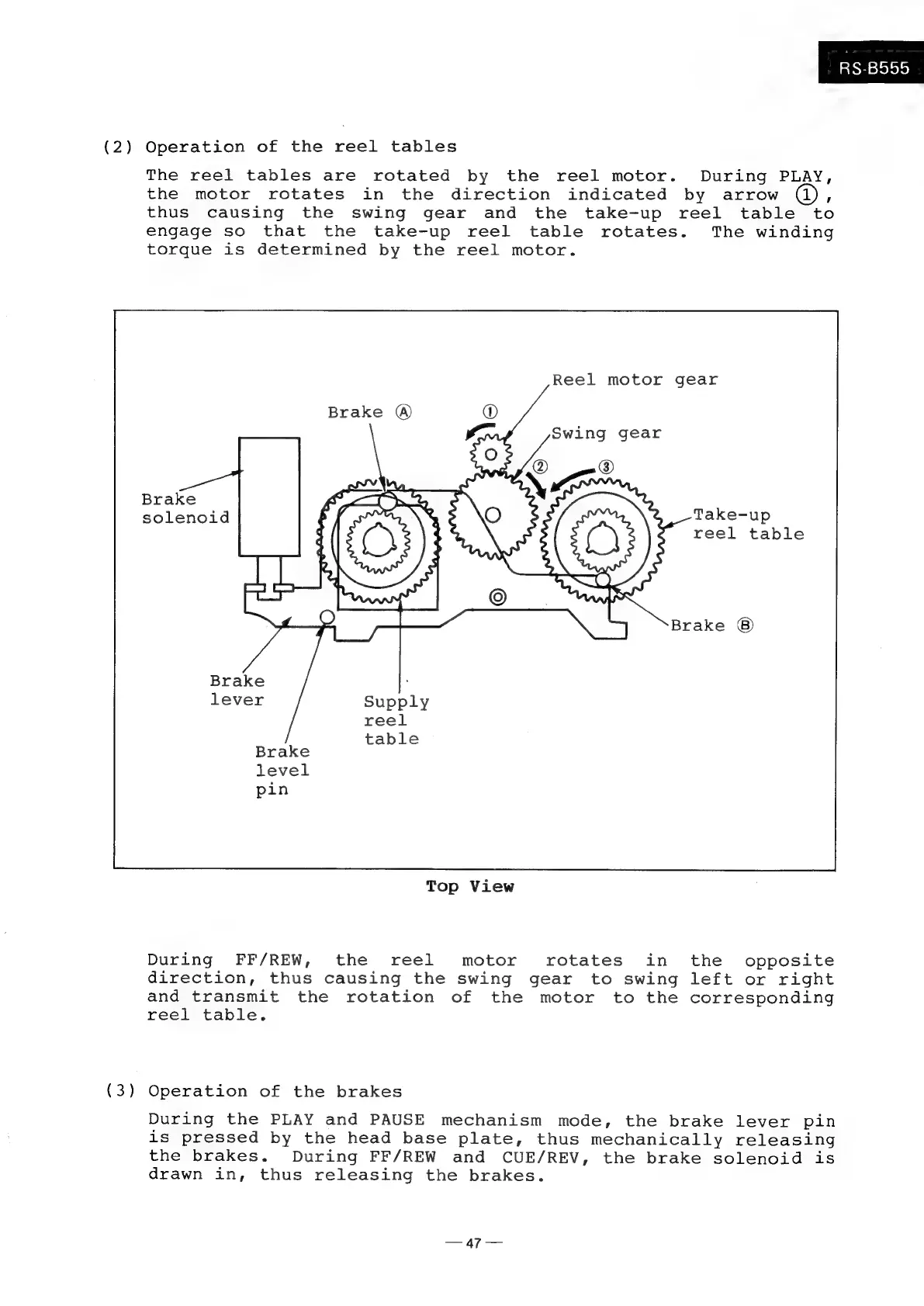

Reel motor gear
Brake
solenoid
reel table
Top View
During FF/REW, the reel motor rotates in the opposite
direction, thus causing the swing gear to swing left or right
and transmit the rotation of the motor to the corresponding
reel table.
Operation of the brakes
During the PLAY and PAUSE mechanism mode, the brake lever pin
is pressed by the head base plate, thus mechanically releasing
the brakes. During FF/REW and CUE/REV, the brake solenoid is
drawn in, thus releasing the brakes.
