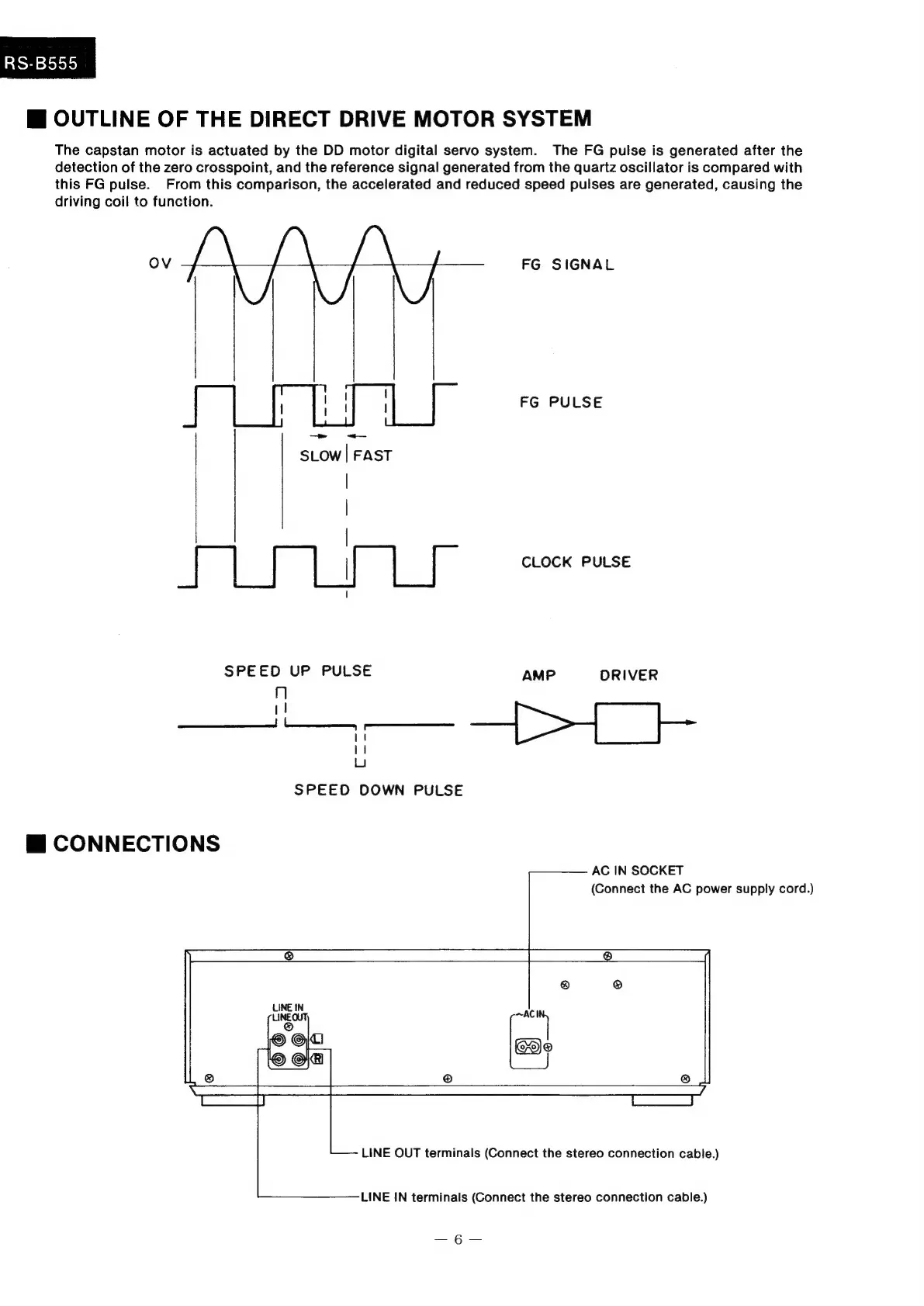

Mi OUTLINE OF THE DIRECT DRIVE MOTOR SYSTEM
The capstan motor is actuated by the DD motor digital servo system. The FG pulse is generated after the
detection of the zero crosspoint, and the reference signal generated from the quartz oscillator is compared with
this FG pulse. From this comparison, the accelerated and reduced speed pulses are generated, causing the
driving coil to function.
OV FG SIGNAL
ee ee ae FG PULSE
| | | | | | | CLOCK PULSE
SPEED UP PULSE AMP DRIVER
SPEED DOWN PULSE
M@ CONNECTIONS
AC IN SOCKET
(Connect the AC power supply cord.)
LINE OUT terminals (Connect the stereo connection cable.)
LINE IN terminals (Connect the stereo connection cable.)
—6—
