li

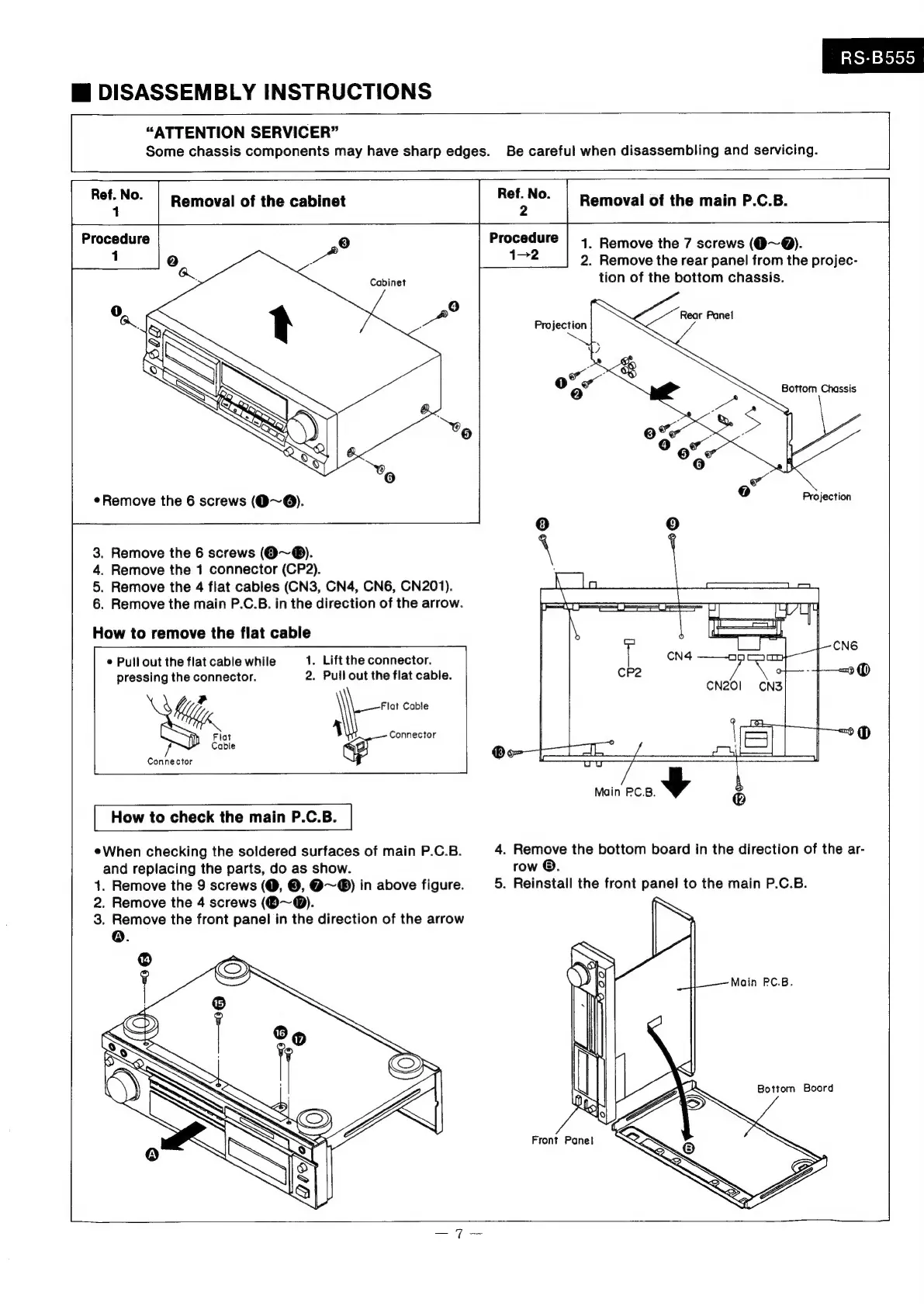

DISASSEMBLY
INSTRUCTIONS
RS-B555
“ATTENTION
SERVICER”
Some
chassis
components
may
have
sharp
edges.
Be
careful
when
disassembling
and
servicing.
Removal
of
the
cabinet
Ref.
No.
1
Removal
of
the
main
P.C.B.
7
Cabinet
«Remove
the
6
screws
(O~@).
3.
Remove
the
6
screws
(O~®).
4.
Remove
the
1
connector
(CP2).
5.
Remove
the
4
flat
cables
(CN3,
CN4,
CN6,
CN201).
6.
Remove
the
main
P.C.B.
in
the
direction
of
the
arrow.
How
to
remove
the
flat
cable
1.
Lift
the
connector.
2.
Pull
out
the
flat
cable.
Flat
Cable
|
Connector
How
to
check
the
main
P.C.B.
When
checking
the
soldered
surfaces
of
main
P.C.B.
and
replacing
the
parts,
do
as
show.
1.
Remove
the
9
screws
(@,
©,
@~®)
in
above
figure.
2.
Remove
the
4
screws
(@~@®).
3.
Remove
the
front
panel
in
the
direction
of
the
arrow
*
Pull
out
the
flat
cable
while
pressing
the
connector.
in
Flat
Cable
Connector
Procedure
1.
Remove
the
7
screws
(Q9~@).
2.
Remove
the
rear
panel
from
the
projec-
tion
of
the
bottom
chassis.
1-2
Projection
Bottom
Chassis
Projection
4.
Remove
the
bottom
board
in
the
direction
of
the
ar-
row
®.
5.
Reinstall
the
front
panel
to
the
main
P.C.B.
