Technics RS-B965 Service Manual

“ATTENTION SERVICER”
Some
chassis
components
may
have
sharp
edges.
Be
careful
when
disassembling
and
servicing.

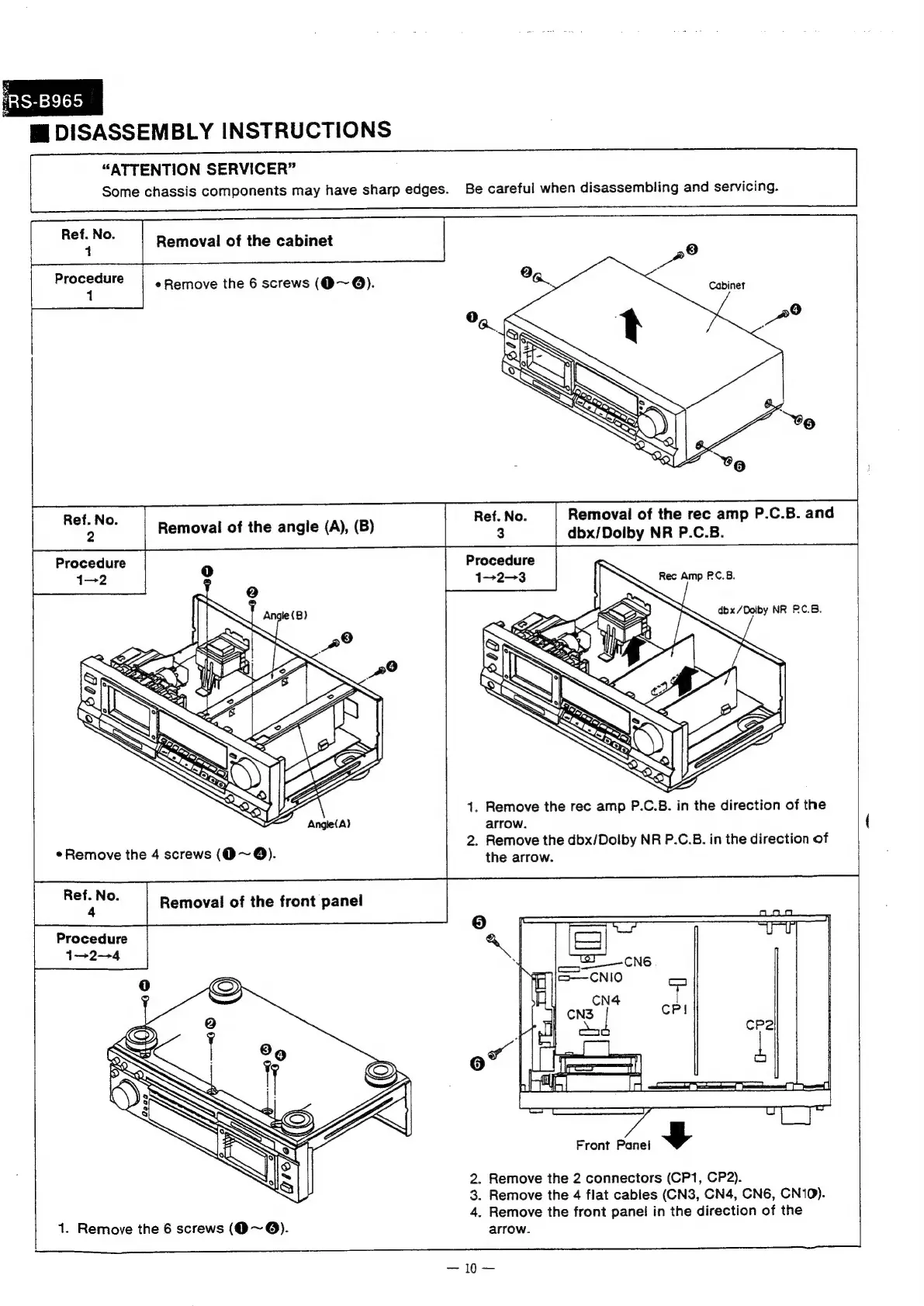

Removal of the cabinet
«Remove the 6 screws (O~6).
Procedure
1
Cabinet
1. Remove the rec amp P.C.B. in the direction of the
arrow.
2. Remove the dbx/Dolby NR P.C.B. in the direction of
the arrow.
Front Panel y
2. Remove the 2 connectors (CP1, CP2).
3. Remove the 4 flat cables (CN3, CN4, CN6, CN10).
4. Remove the front panel in the direction of the
1. Remove the 6 screws (@~@). arrow.

Technics RS-B965 Specifications

General

Brand	Technics
Model	RS-B965
Category	Cassette Player
Language	English
