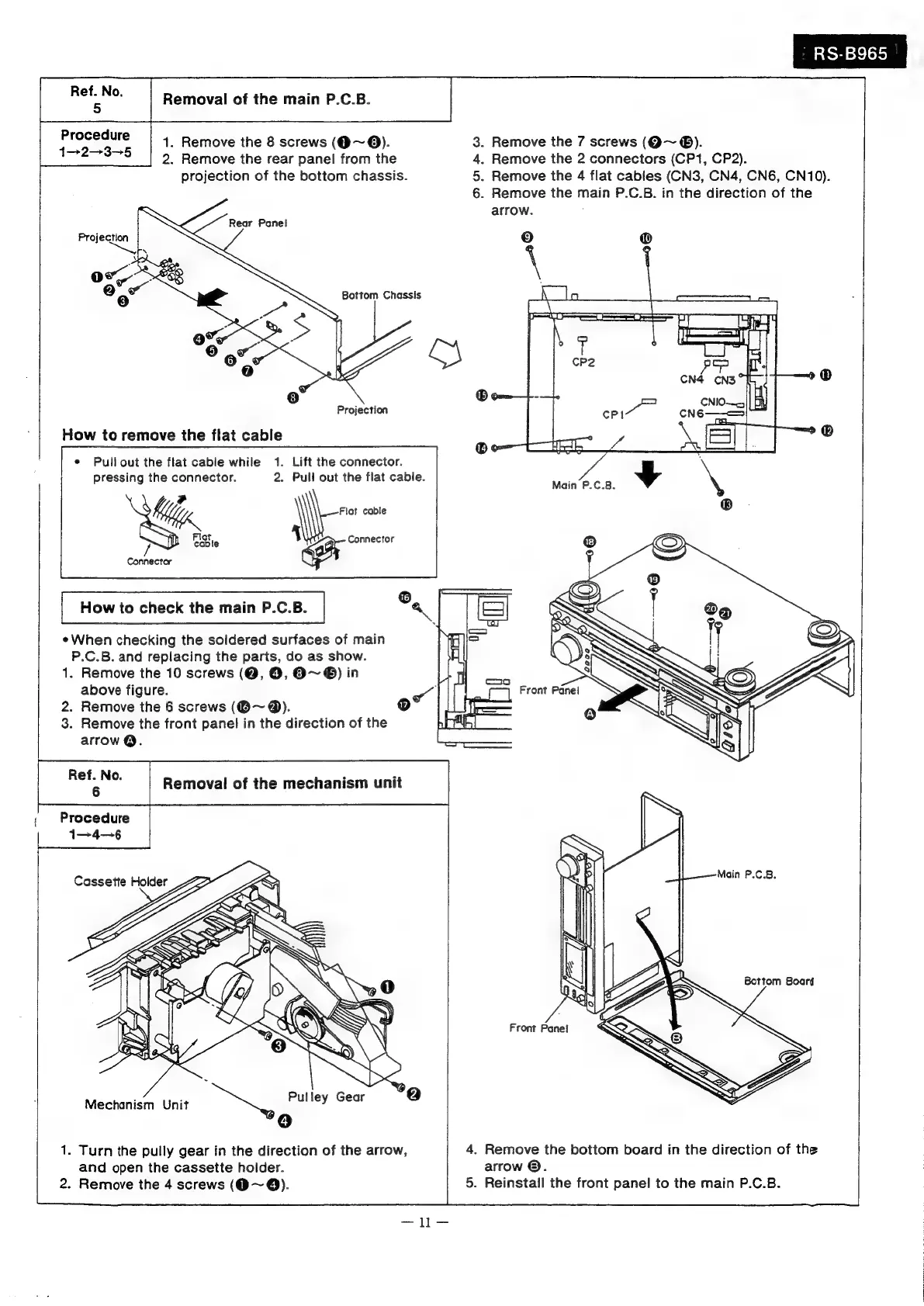

Technics RS-B965 - Main PCB and Mechanism Unit Removal

Procedure
1323-95 1. Remove the 8 screws (Q9~9). 3. Remove the 7 screws (Q~@®).
2. Remove the rear panel from the 4. Remove the 2 connectors (CP1, CP2).
projection of the bottom chassis. 5. Remove the 4 flat cables (CN3, CN4, CN6, CN10).
6. Remove the main P.C.B. in the direction of the
arrow.
How to remove the flat cable
How to check the main P.C.B.
¢When checking the soldered surfaces of main
P.C.B. and replacing the parts, do as show.
1.
. Remove the 6 screws (@~@).
. Remove the front panel in the direction of the
1.
2.
RS-B965
Rear Panel
Projection
Bottom Chassis
Projection
e Pullout the flat cable while 1. Lift the connector.
pressing the connector. 2. Pull out the flat cable.
Pa
Flat cable
Ghie
er
Connector
Remove the 10 screws (9, @, O~®) in
above figure.
arrow @.
Mechanism
Unit
a
Pulley
Gear
4)
Turn the puily gear in the direction of the arrow,
and open the cassette holder.
Remove the 4 screws (Q9~@).
4. Remove the bottom board in the direction of the
arrow ©.
5. Reinstall the front panel to the main P.C.B.
