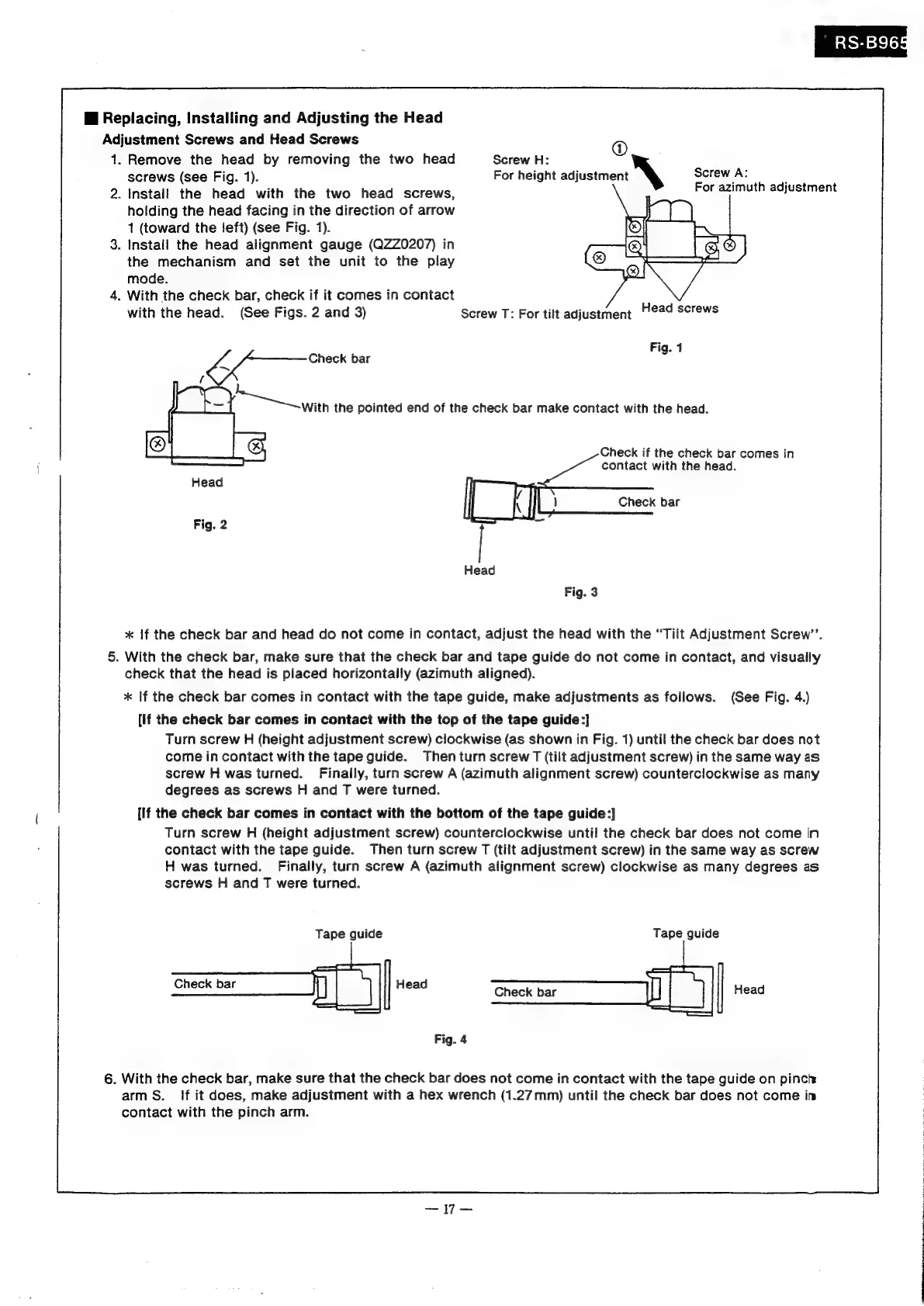

i
Replacing,
Installing
and
Adjusting
the
Head
Adjustment
Screws
and
Head
Screws
®
1.
Remove
the
head
by
removing
the
two
head
Screw
H:
screws
(see
Fig.
1).
For
height
adjustment
Screw
A:
For
azimuth
adjustment
2.
Install
the
head
with
the
two
head
screws,
holding
the
head
facing
in
the
direction
of
arrow
1
(toward
the
left)
(see
Fig.
1).
3.
Install
the
head
alignment
gauge
(QZZ0207)
in
the
mechanism
and
set
the
unit
to
the
play
mode.
4.
With
the
check
bar,
check
if
it
comes
in
contact
with
the
head.
(See
Figs.
2
and
3)
Screw
T:
For
tilt
adjustment
‘ead
screws
Fig.
1
Check
bar
Check
if
the
check
bar
comes
in
contact
with
the
head.
Check
bar
Head
Fig.
3
*
If
the
check
bar
and
head
do
not
come
in
contact,
adjust
the
head
with
the
“Tilt
Adjustment
Screw’.
5.
With
the
check
bar,
make
sure
that
the
check
bar
and
tape
guide
do
not
come
in
contact,
and
visually
check
that
the
head
is
placed
horizontally
(azimuth
aligned).
*
If
the
check
bar
comes
in
contact
with
the
tape
guide,
make
adjustments
as
follows.
(See
Fig.
4.)
[If
the
check
bar
comes
in
contact
with
the
top
of
the
tape
guide:]
Turn
screw
H
(height
adjustment
screw)
clockwise
(as
shown
in
Fig.
1)
until
the
check
bar
does
not
come
in
contact
with
the
tape
guide.
Then
turn
screw
T
(tilt
adjustment
screw)
in
the
same
way
as
screw
H
was
turned.
Finally,
turn
screw
A
(azimuth
alignment
screw)
counterclockwise
as
many
degrees
as
screws
H
and
T
were
turned.
[If
the
check
bar
comes
in
contact
with
the
bottom
of
the
tape
guide:]}
Turn
screw
H
(height
adjustment
screw)
counterciockwise
until
the
check
bar
does
not
come
in
contact
with
the
tape
guide.
Then
turn
screw
T
(tilt
adjustment
screw)
in
the
same
way
as
screw
H
was
turned.
Finally,
turn
screw
A
(azimuth
alignment
screw)
clockwise
as
many
degrees
as
screws
H
and
T
were
turned.
Tape
guide
Tape
guide
Check
bar
|
Head
Check
bar
Head
Fig.
4
6.
With
the
check
bar,
make
sure
that
the
check
bar
does
not
come
in
contact
with
the
tape
guide
on
pinch
arm
S._
If
it
does,
make
adjustment
with
a
hex
wrench
(1.27mm)
until
the
check
bar
does
not
come
in
contact
with
the
pinch
arm.
