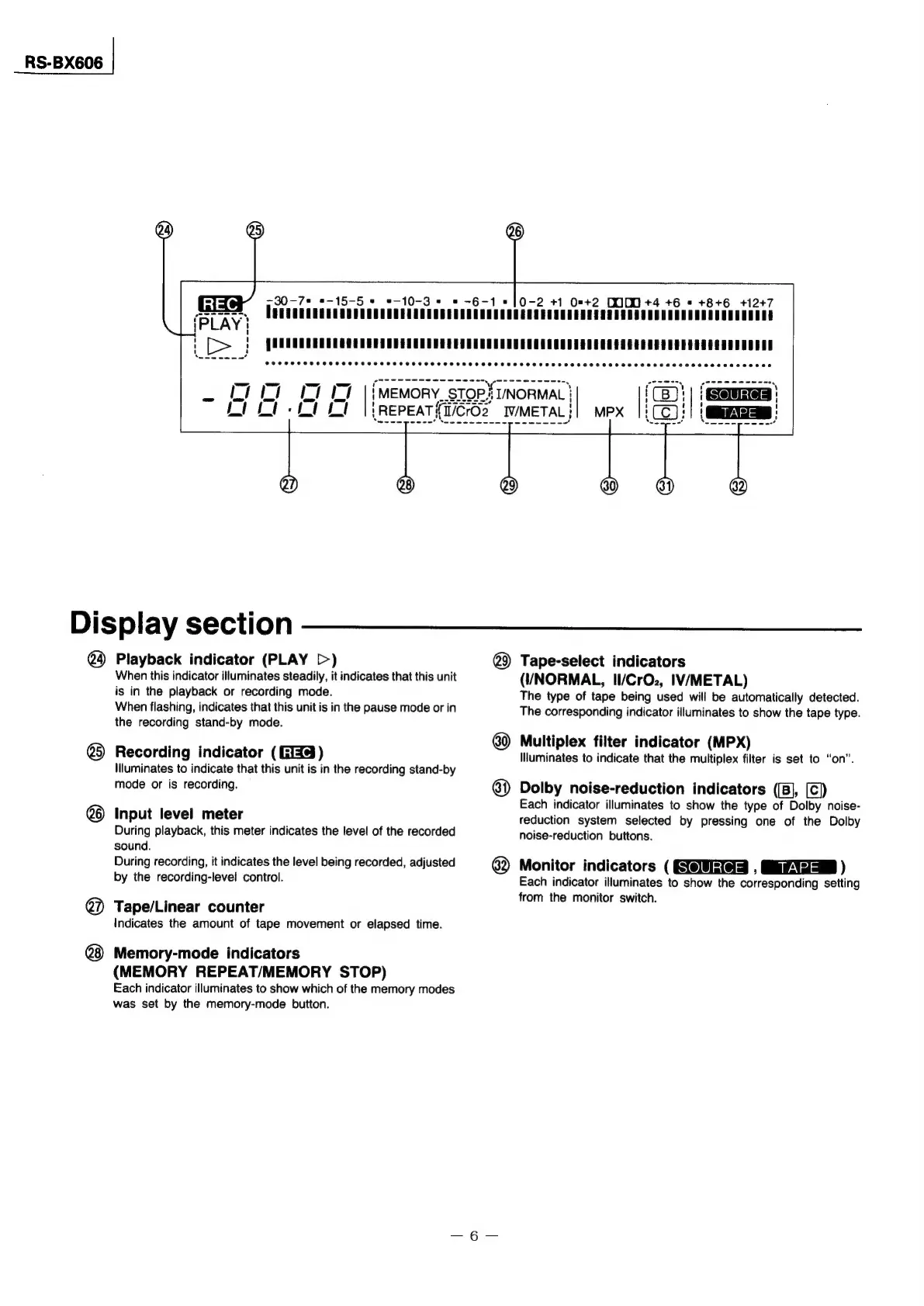

Display section
@
—7e a-15-5 «8
-2 +1 O#t+2 DO +4 +6 = +8+6 +12+7
-10-3 6-15 Oo
DuvQUGGucandnaUCunuueUAaUUGEGAuGauenDUGOdEOUHATUGEEAOIOUSUSOUGOTODGUAQUGAING
SOPHO HEOEEE HET EEEEH HEHE HEHE HHEEOEEEEEESEE ODED EEESES OEE S OO OEE SEH OEE EEO DEE OEEEE
i ey 70
a
Playback indicator (PLAY [>)
Wher this indicator illuminates steadily, it indicates that this unit
is in the playback or recording mode.
When flashing, indicates that this unit is in the pause mode or in
the recording stand-by mode.
Recording indicator (G8)
Iluminates to indicate that this unit is in the recording stand-by
mode or is recording.
Input level meter
During playback, this meter indicates the level of the recorded
sound.
During recording, it indicates the level being recorded, adjusted
by the recording-level control.
Tape/Linear counter
Indicates the amount of tape movement or elapsed time.
Memory-mode indicators
(MEMORY REPEAT/MEMORY STOP)
Each indicator illuminates to show which of the memory modes
was set by the memory-mode button.
@
{ MEMORY. STOP I/NORMAL |
{REPEAT {l/ rO2 IV/METAL:
Tape-select indicators
(/NORMAL, II/CrO., IV/METAL)
The type of tape being used will be automatically detected.
The corresponding indicator illuminates to show the tape type.
Multiplex filter indicator (MPX)
Illuminates to indicate that the multiplex filter is set to “on”.
Dolby noise-reduction indicators ([B], [C])
Each indicator illuminates to show the type of Dolby noise-
reduction system selected by pressing one of the Dolby
noise-reduction buttons.
Monitor indicators ( Rees , GES )
Each indicator illuminates to show the corresponding setting
from the monitor switch.
