Technics RS-BX606

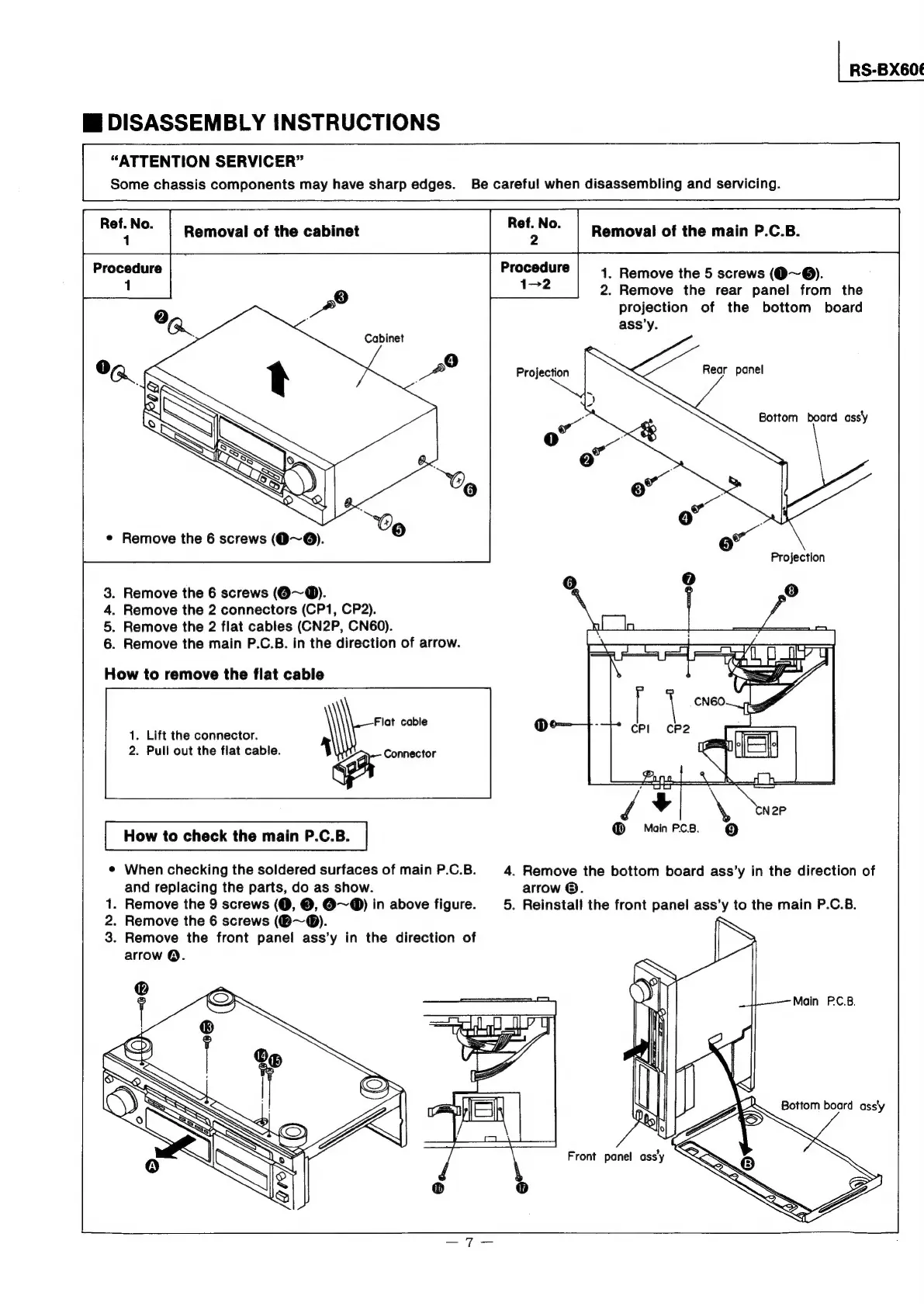

li DISASSEMBLY INSTRUCTIONS
“ATTENTION SERVICER”
Some chassis components may have sharp edges.
| RS-BX606
Be careful when disassembling and servicing.
Removal
of
the
cabinet
Removal
of
the
main
P.C.B.
Procedure
US
Cabinet
e Remove the 6 screws (9~@).
3. Remove the 6 screws (@~@).
4. Remove the 2 connectors (CP1, CP2).
5. Remove the 2 flat cables (CN2P, CN60).
6. Remove the main P.C.B. in the direction of arrow.
How to remove the flat cable
Flat cable
wo
How to check the main P.C.B.
e When checking the soldered surfaces of main P.C.B.
and replacing the parts, do as show.
1. Remove the 9 screws (0, ©, @~@) in above figure.
2. Remove the 6 screws (O~®).
3. Remove the front panel ass’y in the direction of
arrow @.
1. Lift the connector. x
2. Pull out the flat cable.
Procedure | 4 Remove the 5 screws (@~@).
1>2 2. Remove the rear panel from the
projection of the bottom board
ass’y.
Projection Rear panel
Bottom board assy
ol dn a Fe
he eee eee)
fa, J OL a ay,
| a cote
i= a4
@ Monrecs. @Q
4. Remove the bottom board ass’y in the direction of
arrow ®.
5. Reinstall the front panel ass’y to the main P.C.B.
