Technics RS-CH770

RS-CH770

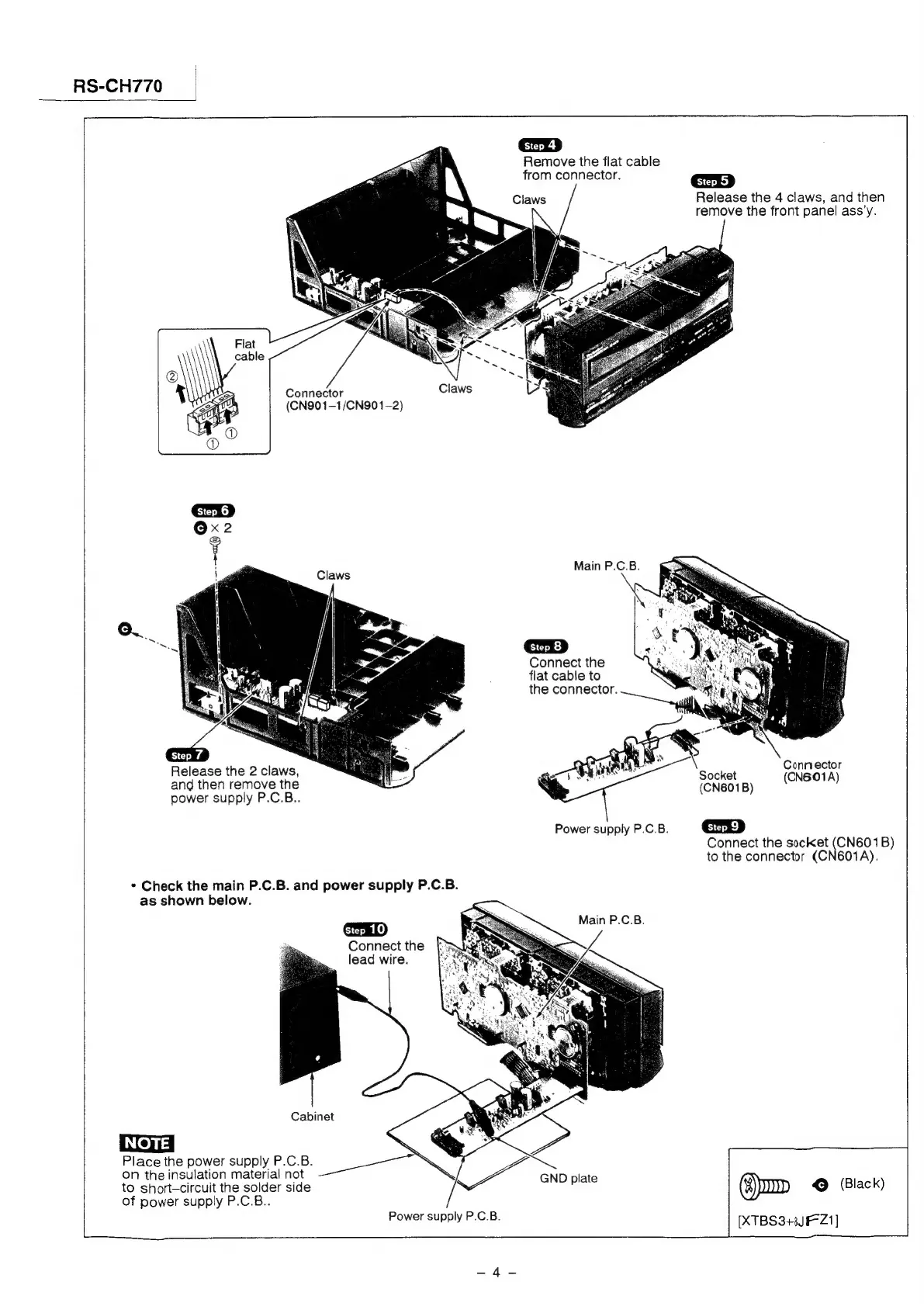

Remove the flat cable
from connector. cD
Release the 4 claws, and then
remove the front panel ass’y.
Connector
(CN901-—1/CNS01—2)
Main P.C.B.
Connect the
flat cable to
the connector.
Connector
(CN6O1A)
Release the 2 claws,
and then remove the
power supply P.C.B..
Socket
(CN601B)
Power supply P.C.B. t step 9
Connect the socket (CN601B)
to the connector (CN601A).
* Check the main P.C.B. and power supply P.C.B.
as shown below.
Main P.C.B.
istep 10)
Connect the
lead wire.
Cabinet
Place the power supply P.C.B.
on the insulation material not
to short-circuit the solder side
of power supply P.C.B..
(i) + (Black)
[XTBS3HJFZ1]
