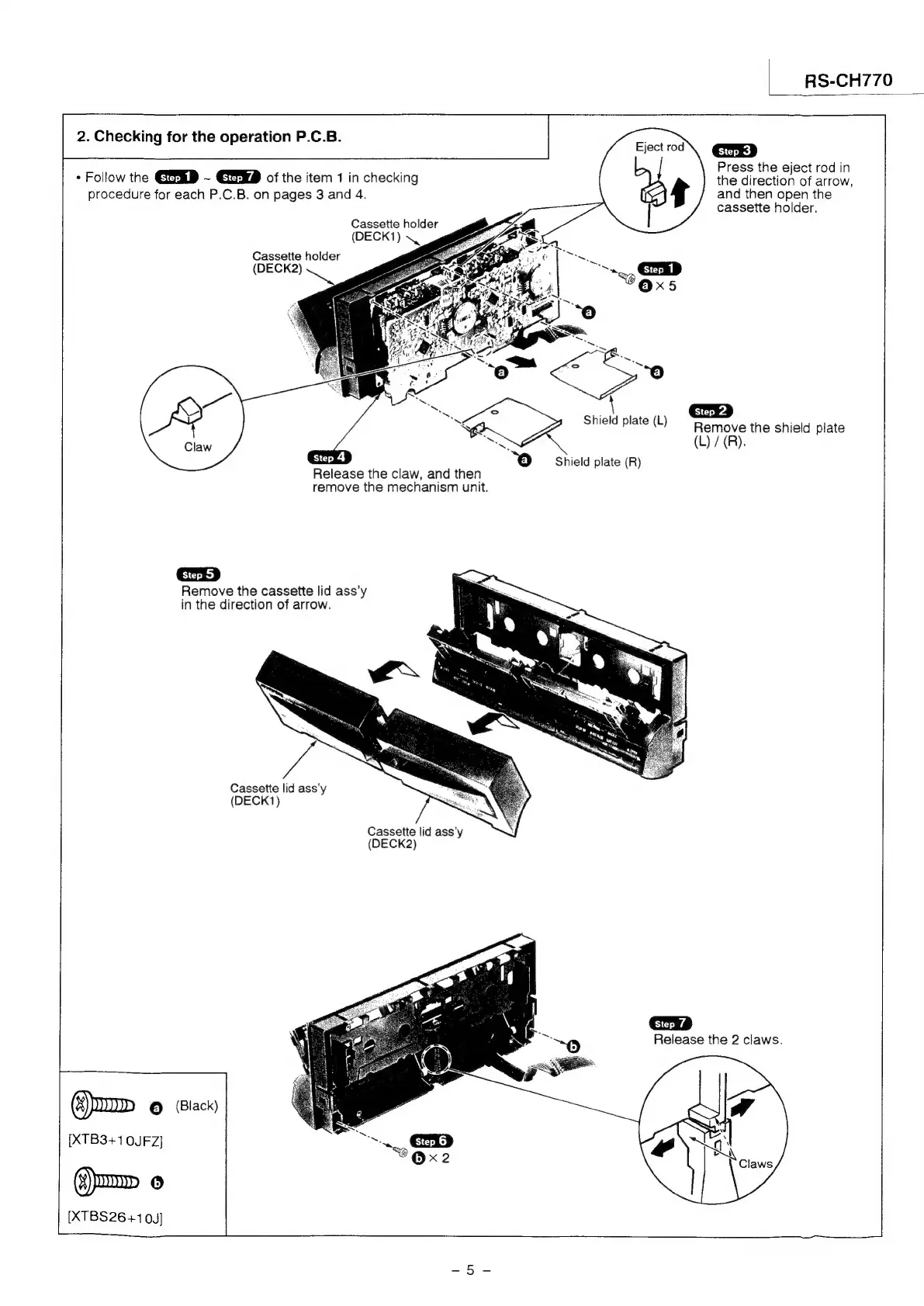

2. Checking for the operation P.C.B.
Press the eject rod in
the direction of arrow,
and then open the
cassette holder.
+ Follow the @eamp ~ of the item 1 in checking
procedure for each P.C.B. on pages 3 and 4.
Cassette holder
(DECK1)
Cassette holder
(DECK2)
Remove the shield plate
(L) / (R).
Shield plate (L)
Shield plate (R)
Release the claw, and then
remove the mechanism unit.
Remove the cassette lid ass’y
in the direction of arrow.
Cassette lid ass'y
(DECK1)
Cassette lid ass’y
(DECK2)
Release the 2 claws.
(SID © (Black)
[XTB3+1 OJFZ]
(3) ‘bY
[XTBS26+10J]
