Technics RS-D200

eo odo ot)
e660 6 OO

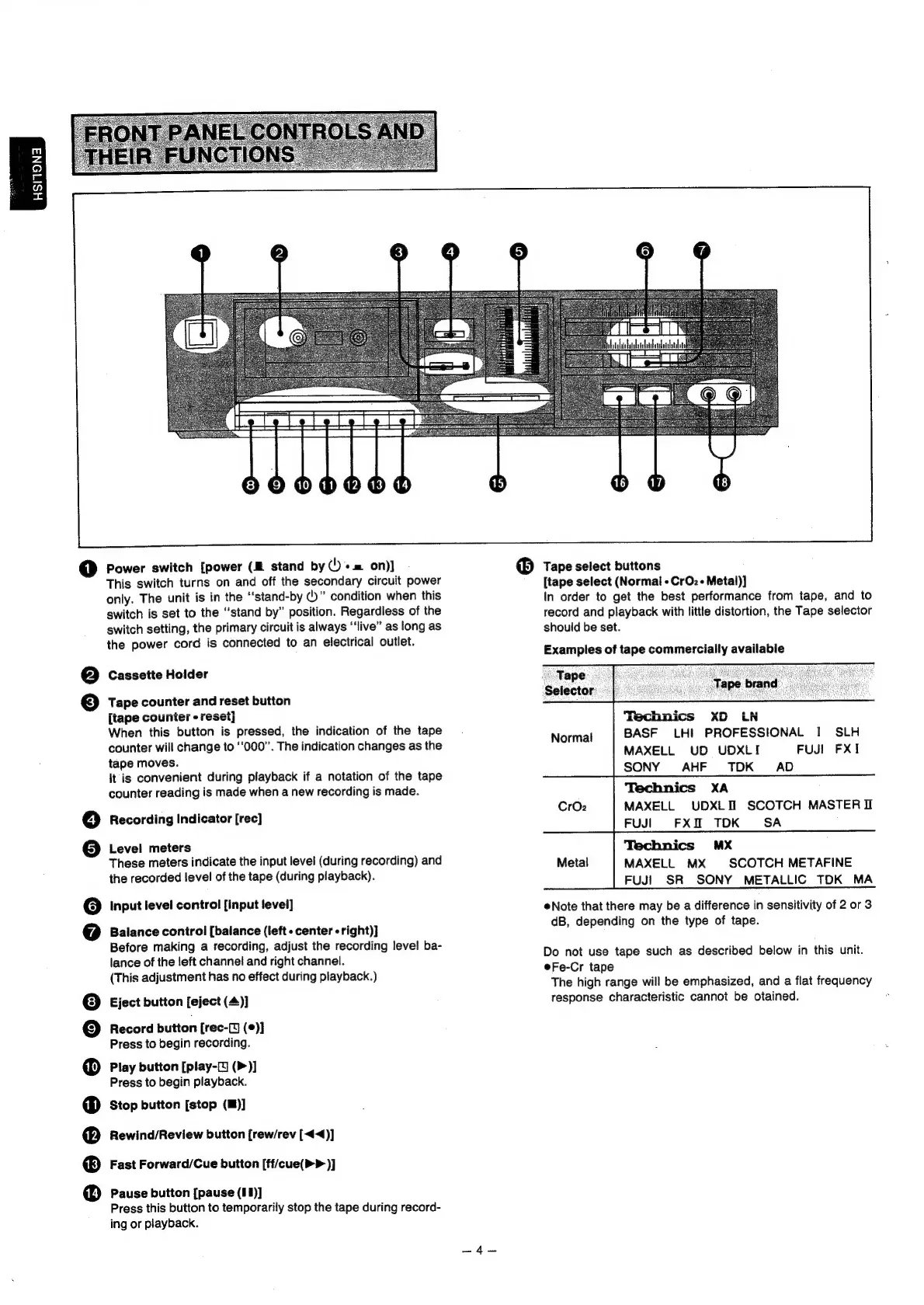

Power
switch
{power
(
stand
by
(!)
o=
on)]
This
switch
turns
on
and
off
the
secondary
circuit
power
only.
The
unit
is
in
the
‘‘stand-by
(”
condition
when
this
switch
is
set
to
the
‘‘stand
by”
position.
Regardless
of
the
switch
setting,
the
primary
circuit
is
always
“live”
as
long
as
the
power
cord
is
connected
to
an
electrical
outlet.
Cassette Holder
Tape counter and reset button
[tape counter - reset]
When this button is pressed, the indication of the tape
counter will change to ‘‘000”. The indication changes as the
tape moves.
It is convenient during playback if a notation of the tape
counter reading is made when a new recording is made.
Recording Indicator [rec]
Level meters
These
meters
indicate
the
input
level
(during
recording)
and
the
recorded
level
of
the
tape
(during
playback).
Input level control [input level]
Balance control [balance (left - center + right)]
Before making a recording, adjust the recording level ba-
lance of the left channel and right channel.
(This adjustment has no effect during playback.)
Eject button [eject (4)]
Record
button
[rec-
(¢)]
Press
to
begin
recording.
Play button [play-1 (> )]
Press to begin playback.
Stop button [stop ()]
Rewind/Review button [rew/rev [<4)]
Fast Forward/Cue button [ff/cue(>>)]
Pause button [pause (11)]
Press this button to temporarily stop the tape during record-
ing or playback.
® Tape select buttons
[tape select (Normai- CrO:- Metal)]}
In order to get the best performance from tape, and to
record and playback with little distortion, the Tape selector
should be set.
Examples of tape commercially availabie
_ Tape |
Selector: | =
Technics XD iN
BASF LHI PROFESSIONAL I SLH
MAXELL UD UDXLI FUJl FXI
SONY AHF TDK AD
Technics XA
MAXELL UDXLID) SCOTCH MASTER TI
FUJI FX TOK SA
Technics MX
MAXELL MX SCOTCH METAFINE
FUJ! SR SONY METALLIC TOK MA
Normal
CrO2
Metal
eNote that there may be a difference in sensitivity of 2 or 3
dB, depending on the type of tape.
Do not use tape such as described below in this unit.
Fe-Cr tape
The high range will be emphasized, and a flat frequency
response characteristic cannot be otained.
