Technics RS-M10 - Page 11

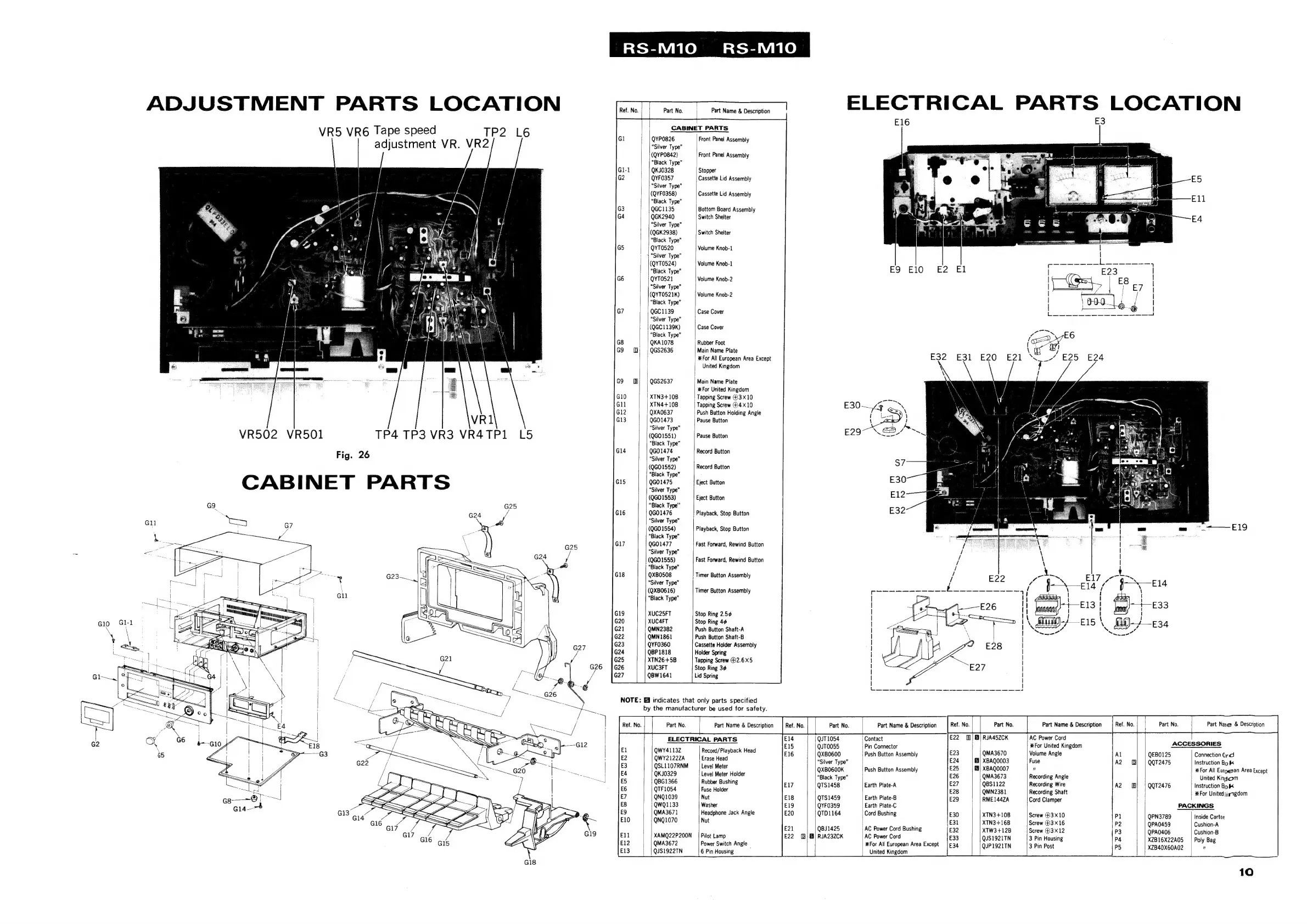

ADJUSTMENT PARTS LOCATION
VR5 VR6 Tape speed TP2 L6
adjustment VR. VR2
VR1
TP4 TP3 VR3 VR4TP1 L5
Fig. 26
CABINET PARTS
VR502 VR501
RS-M10
Part Name & Description
|
CABINET PARTS
Gl | QYP0826 Front Panel Assembly
“Silver Type”
(QYP0842) Front Panel Assembly
“Black Type”
G1-1 QKJ0328 Stopper
G2 QYFO357 Cassette Lid Assembly
“Silver Type”
| | (QYFO358) Cassette Lid Assembly
“Black Type” |
G3 QGC1135 | Bottom Board Assembly
G4 QGK2940 Switch Shelter
“Silver Type”
(QGK2938) Switch Shelter
| “Black Type”
G5 | | QYTO520 Volume Knob-1
“Silver Type”
(QYT0524) | Volume Knob-1
“Black Type”
G6 QYT0521 Volume Knob-2
“Silver Type”
(QYT0521K) Volume Knob-2
“Black Type”
G7 QGC1139 Case Cover
“Silver Type”
(QGC1139K) Case Cover
“Black Type”
G8 QKA1078 | Rubber Foot
Main Name Plate
For All European Area Except
United Kingdom
G9 oO, QGS2636
|
|
QGS2637
G9 Main Name Plate
% For United Kingdom
G10 XTN3+10B Tapping Screw 3x10
Gl XTN4+10B Tapping Screw 4X10
G12 | QXA0637 | Push Button Holding Angle
G13 QG01473 Pause Button
“Silver Type”
(QG01551) Pause Button
“Black Type”
Gl4 QG01474 Record Button
“Silver Type”
(QG01552) Record Button
“Black Type”
G15 QG01475 Eject Button
“Silver Type”
(QG01553) Eject Button
“Black Type”
G16 QG01476 Playback, Stop Button
“Silver Type”
(QG01554) Playback, Stop Button
“Black Type”
G17 QG01477 Fast Forward, Rewind Button
“Silver Type”
(QGO1555) Fast Forward, Rewind Button
“Black Type”
G18 QXB0508 Timer Button Assembly
“Silver Type”
(QXB0616) Timer Button Assembly
“Black Type”
G19 XUC25FT Stop Ring 2.5¢
G20 XUC4FT Stop Ring 4¢
G21 QMN2382 Push Button Shaft-A
G22 QMN1861 Push Button Shaft-B
G23 QYF0360 Cassette Holder Assembly
G24 QBP 1818 Holder Spring
G25 XTN26+5B Tapping Screw @2.6X5
G26 XUC3FT Stop Ring 3¢
QBW1641 Lid Spring
NOTE: & indicates that only parts specified
by the manufacturer be used for safety.
ELECTRICAL PARTS
QWY4113Z Record/Playback Head
QWY2122ZA Erase Head
QSL1107RNM Level Meter
QKJ0329 Level Meter Holder
QBG1366 Rubber Bushing
QTF1054 Fuse Holder
QNQ1039 Nut
QWQ1133 Washer
QMA3671 Headphone Jack Angle
QNQ1070 Nut
XAMQ22P200N | Pilot Lamp
QMA3672 Power Switch Angle
QJS1922TN 6 Pin Housing
RS-M10
E17
E18
E19
E20
E21
E22
O's
ELECTRICAL PARTS LOCATION
E30
I
E29 “\ ee J
QJT1054
QJT0055
QXB0600
“Silver Type”
QXBO600K
“Black Type”
QTS1458
QTS1459
QYF0359
QTD1164
QBJ1425
RJA23ZCK
a os \
E2
2 Boas
Pee
\
~e
$7
Part Name & Description
Contact
Pin Connector
Push Button Assembly
Push Button Assembly
Earth Plate-A
Earth Plate-B
Earth Plate-C
Cord Bushing
AC Power Cord Bushing
AC Power Cord
For All European Area Except
United Kingdom
BY) RJA45Z2CK
QMA3670
SI} XBAQ0003
XBAQ0007
QMA3673
QBS1122
QMN2381
RME144ZA
XTN3+10B
XTN3+16B
XTW3+12B
QUS1921TN
QJP1921TN
Part Name & Description
AC Power Cord
% For United Kingdom
Volume Angle
Fuse
wn”
Recording Angle
Recording Wire
Recording Shaft
Cord Clamper
Screw 3X10
Screw 3X16
Screw @3X12
3 Pin Housing
3 Pin Post
QEBO125
QQT2475
QQT2476
QPN3789
QPA0459
QPA0406
| Part Nane & Description
ACCESSORIES
Connection Grd
Instruction Bio K
For All Eurgeean Area Except
United Kingom
Instruction By K
¥ For United |i agdom
PACKINGS
Inside Carton
Cushion-A
Cushion-B
XZB16X22A05 | Poly Bag
XZB40X60A02 "
10
