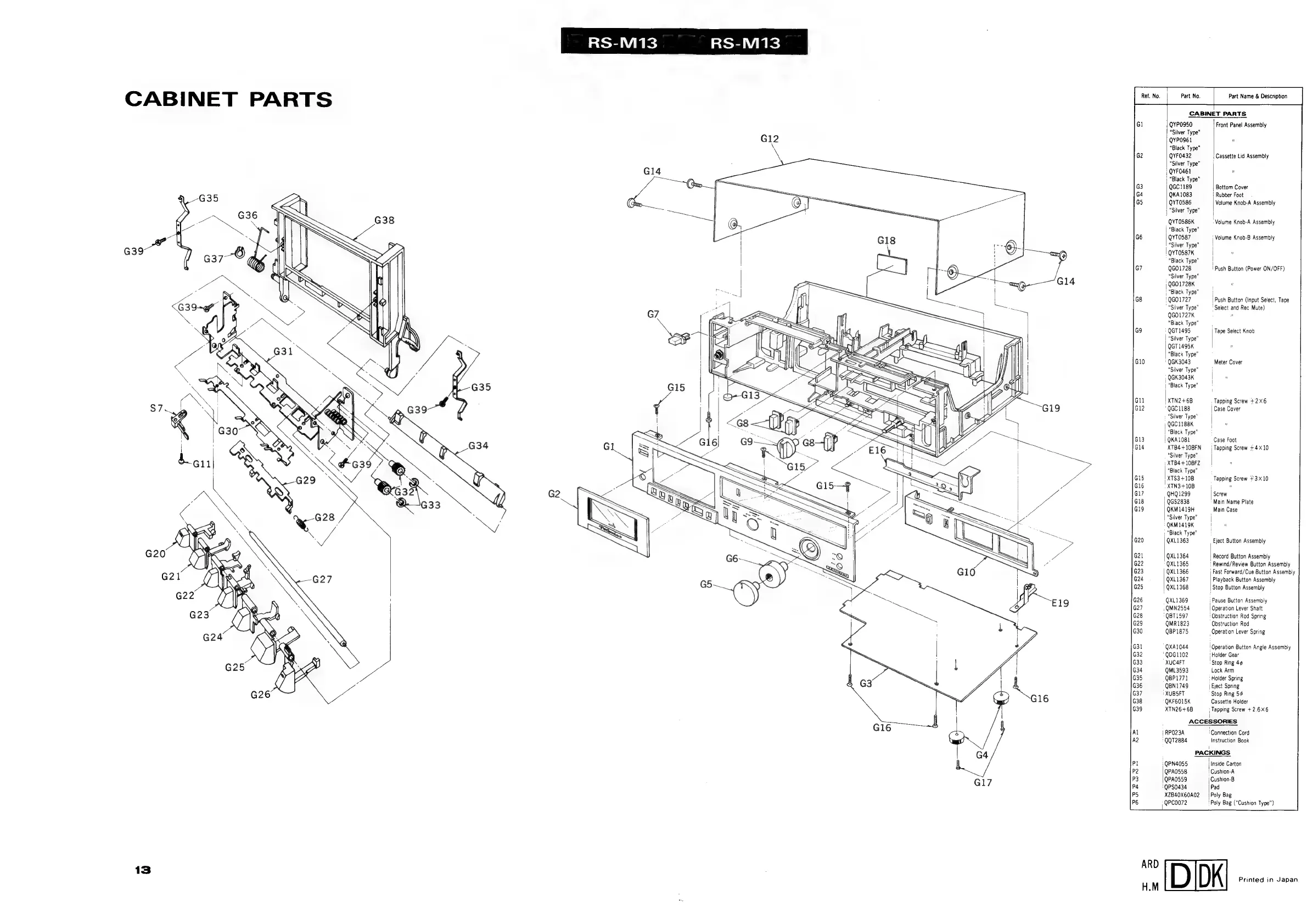

CABINET PARTS
13
RS-M13 RS-M13
G9
G10
Gl
G12
G13
G14
G15
G16
G17
G18
G19
G20
G21
G22
G23
G24
G25
G26
G27
G28
G29
G30
G31
G32
G33
G34
G35
G36
G37
G38
G39
ARD
H.M
Part No. Part Name & Description
CABINET PARTS
QyP09s0 | Front Panel Assembly
| “Silver Type”
QYP0961 8
“Black Type”
QYF0432 ; Cassette Lid Assembly
“Silver Type” sj
| OYFO461 "
| “Black Type"
QGC1189 | Bottom Cover
QKA1083 | Rubber Foot
QYTO586 Votume Knob-A Assembly
“Silver Type” i
QYTO586K Volume Knob-A Assembly
“Black Type”
| QYT0587 Volume Knob-B Assembly
“Silver Type” :
| QYTO587K | "
“Black Type" |
QG601728 ! Push Button (Power ON/OFF)
“Silver Type”
| 9G01728K ”
; “Black Type” |
!QG01727 i Push Button (Input Setect, Tape
" “Silver Type” Select and Rec Mute)
QG01727K ”
“Black Type”
' QGT1495 | Tape Select Knob
| “Silver Type” |
| QGT1495K i
| “Black Type”
QGK3043 Meter Cover
“Silver Type”
QGK3043K "
| “Black Type”
| xTN2+68 Tapping Screw + 2X6
QGC1188 | Case Cover
“Silver Type"
| QGC1188K "
| “Black Type” :
|QKA1081 Case Foot
XTB4+10BFN | Tapping Screw +4X10
“Silver Type” |
i XTB4 + 10BFZ "
“Black Type”
| XT$3+10B Tapping Screw #3X10
-XTN3+10B i "
_QHQ1299 | Screw
| QGS2838 “Main Name Plate
QKM1419H Main Case
| “Silver Type”
QKM1419K ”
, “Black Type”
| QXL1363 Eject Button Assembly
| OXL1364 | Record Button Assembly
QXL1365 ' Rewind/Review Button Assembly
| QXL1366 | Fast Forward/Cue Button Assembly
QXL1367 Playback Button Assembly
QXL1368 | Stop Button Assembly
QXL1369 ‘Pause Button Assembly
QMN2554 [Operation Lever Shaft
‘QBT1597 ‘Obstruction Rod Spring
QMR1823 Obstruction Rod
QBP 1875 Operation Lever Spring
QXA1044 ‘Operation Button Angle Assembly
"QDG1102 ; Holder Gear
XUC4FT ‘Stop Ring 4¢
QML3593 Lock Arm
QBP1771 ‘Holder Spring
QBN1749 i Eject Spring
' XUBSFT Stop Ring 5¢
QKF6015K Cassette Holder
XTN26+6B ; Tapping Screw + 2.6X6
ACCESSORIES
|RPO23A Connection Cord
'QQT2884 Instruction Book
PACKINGS
, QPN4055 {Inside Carton
QPA0558 :Cushion-A
QPA0S59 | Cushion-B
‘QOPS0434 |Pad
XZB40X60A02 | Poly Bag
\9PC0072 ‘Poly Bag (“Cushion Type”)
