RS-M13
Lug Terminal Black

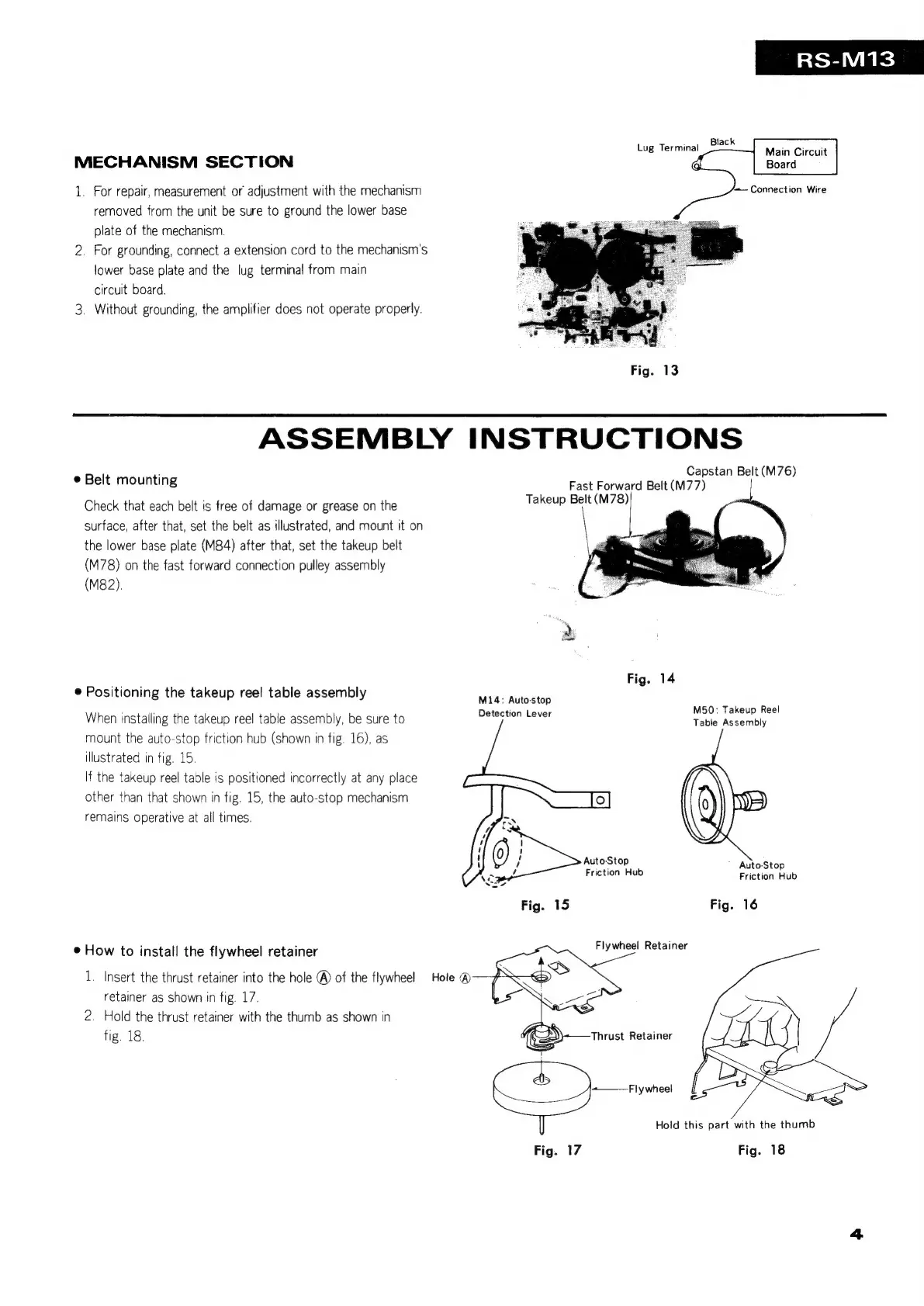

MECHANISM SECTION
1. For repair, measurement or adjustment with the mechanism
removed from the unit be sure to ground the lower base
plate of the mechanism.
2. For grounding, connect a extension cord to the mechanism's
lower base plate and the lug terminal from main
circuit board.
3. Without grounding, the amplifier does not operate properly.
Main Circuit
Board
fa—- Connection Wire
Fig. 13
ASSEMBLY INSTRUCTIONS
Capstan Belt (M76)
Fast Forward Belt (M77)
Takeup Belt (M78)
® Belt mounting
Check that each belt is free of damage or grease on the
surface, after that, set the belt as illustrated, and mount it on
the lower base plate (M84) after that, set the takeup belt
(M78) on the fast forward connection pulley assembly
(M82).
in
Soke
Fig.
14
©
Positioning
the
takeup
reel
table
assembly
M14: Auto-stop
Detection Lever M50: Takeup Reel
Table Assembly
When installing the takeup reel table assembly, be sure to
mount the auto-stop friction hub (shown in fig. 16), as
illustrated in fig. 15.
If the takeup reel table is positioned incorrectly at any place
other than that shown in fig. 15, the auto-stop mechanism
remains operative at all times.
Auto-Stop Auto-Sto)
: hs p
Friction Hub Friction Hub
Fig. 16
© How to install the flywheel retainer Flywheel Retainer
1. Insert the thrust retainer into the hole () of the flywheel Hole @
retainer as shown in fig. 17.
2. Hold the thrust retainer with the thumb as shown in
fig. 18. ¢ BS ~——Thrust Retainer
Fly wheel
Hold this part with the thumb
Fig. 17 Fig. 18
