RS-M14

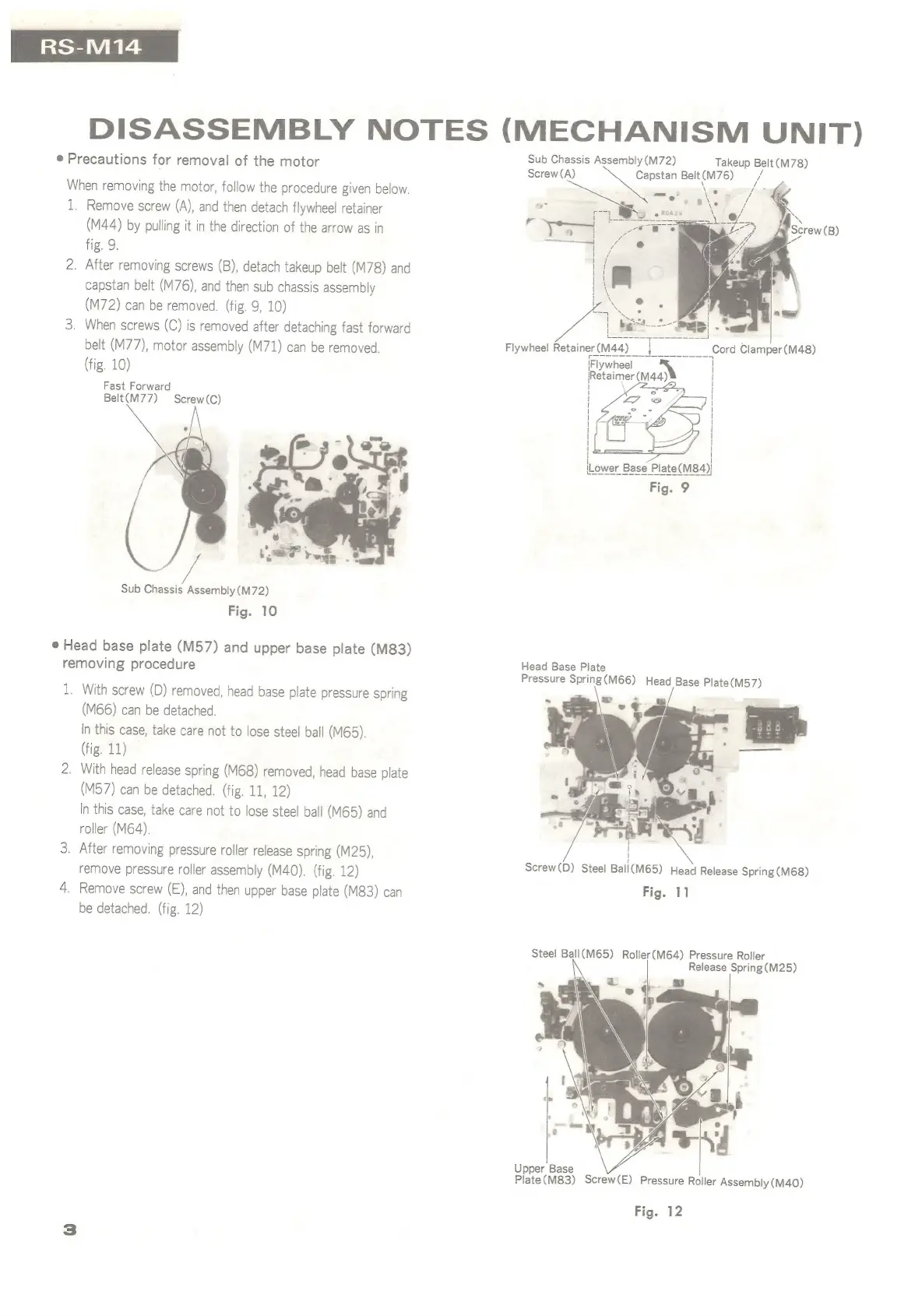

DISASSEMBLY NOTES
© Precautions for removal of the motor
When
removing
the
motor,
follow
the
procedure
given
below.
1.
Remove
screw
(A),
and
then
detach
flywheel
retainer
(M44)
by
pulling
it
in
the
direction
of
the
arrow
as
in
fig.
9.
2.
After
removing
screws
(B),
detach
takeup
belt
(M78)
and
capstan
belt
(M76),
and
then
sub
chassis
assembly
(M72)
can
be
rernoved.
(fig.
9,
10)
3.
When
screws
(C)
is
removed
after
detaching
fast
forward
belt
(M77),
motor
assembly
(M71)
can
be
removed.
(fig. 10)
Fast Forward
Belt(M77) Screw(C)
Sez"
2 | iy
ee Tews
Sub Chassis Assembly (M72)
Fig. 10
©
Head
base
plate
(M57)
and
upper
base
plate
(M83)
removing
procedure
1.
With
screw
(D)
removed,
head
base
plate
pressure
spring
(M66)
can
be
detached.
In
this
case,
take
care
not
to
lose
steel
ball
(M65).
(fig.
11)
2.
With
head
release
spring
(M68)
removed,
head
base
plate
(M57)
can
be
detached.
(fig.
11,
12)
In
this
case,
take
care
not
to
lose
steel
ball
(M65)
and
roller
(M64).
3.
After
removing
pressure
roller
release
spring
(M25),
remove
pressure
roller
assembly
(M40).
(fig.
12)
4,
Remove
screw
(E),
and
then
upper
base
plate
(M83)
can
be
detached.
(fig.
12)
(MECHANISM UNIT)
Sub
Chassis
Assembly
(M72)
Takeup
Belt
(M78)
Screw
(A)
Capstan
Belt
(M76)
/
Flywheel Retainer(M44) ;
Flywheel a 1
Retaimer (m44)—
|
1
!
|
|
|
!
1
|
|
I
|
|
!
Head Base Plate
Pressure
Spring(M66)
Head
Base
Plate(M57)
|
Screw(D)
Steel
Ball(M65)
Head
Release
Spring(M68)
Fig. 11
Steel Ball(M65) Roller(M64) Pressure Roller
Release Spring (M25)
Upper Base
Plate(M83)
Screw(E)
Pressure
Roller
Assembly
(M40)
Fig. 12
