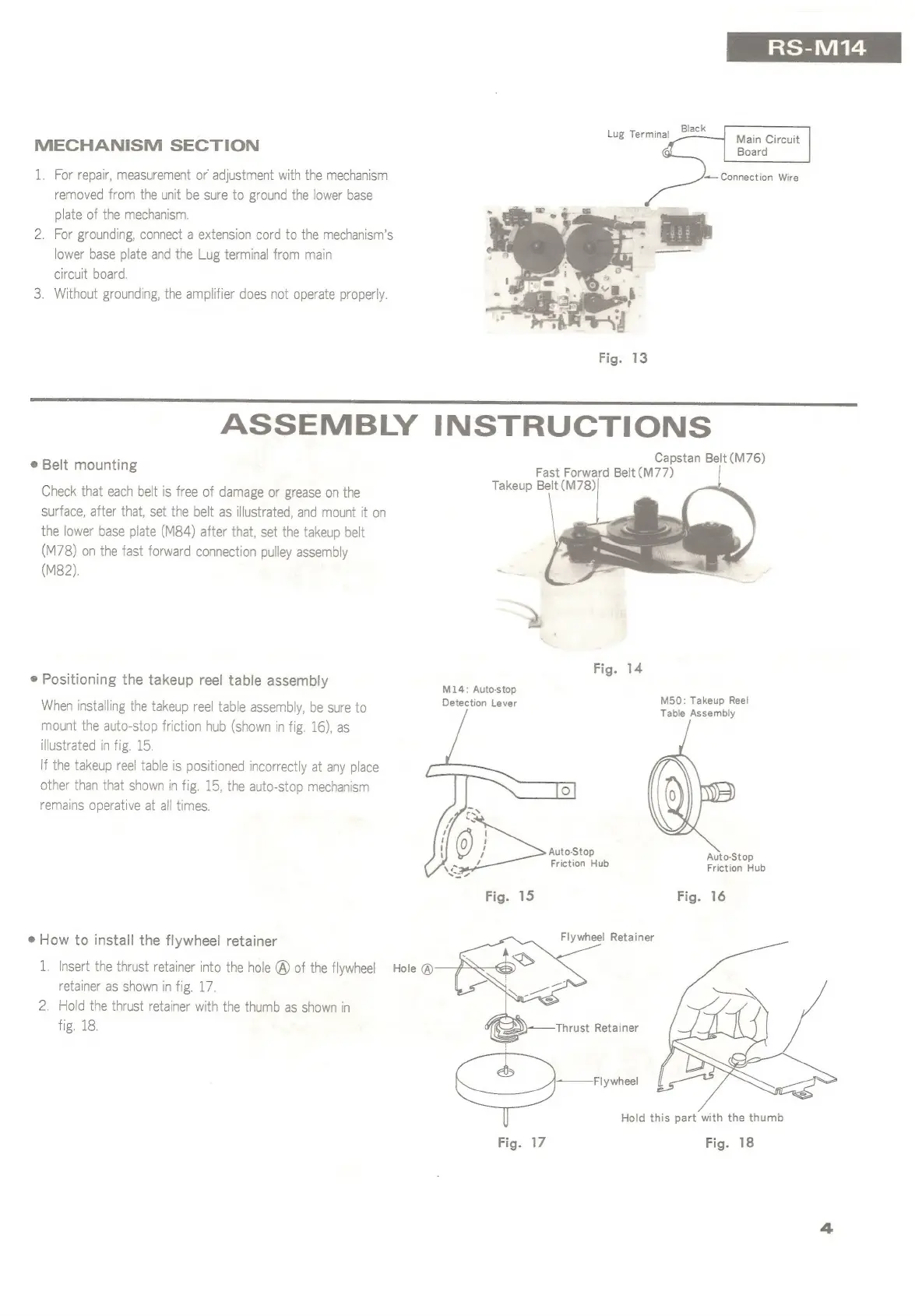

MECHANISM SECTION
1. For repair, measurement or adjustment with the mechanism
removed from the unit be sure to ground the lower base
plate of the mechanism.
2. For grounding, connect a extension cord to the mechanism's
lower base plate and the Lug terminal from main
circuit board.
3. Without grounding, the amplifier does not operate properly.
Fig. 13
ASSEMBLY INSTRUCTIONS
; Capstan Belt (M76)
e
Belt
mounting
Fast
Forward
Belt
(M77)
Takeup Belt (M78)
Check that each belt is free of damage or grease on the
surface, after that, set the belt as illustrated, and mount it on
the lower base plate (M84) after that, set the takeup belt
(M78) on the fast forward connection pulley assembly
(M82).
é
Fig. 14
@ Positioning the takeup reel table assembly 1 RS dakodties
Detection Lever M50: Takeup Reel
When
installing
the
takeup
reel
table
assembly,
be
sure
to
Table
Assembly
mount
the
auto-stop
friction
hub
(shown
in
fig.
16),
as
illustrated
in
fig.
15.
If the takeup reel table is positioned incorrectly at any place
other than that shown in fig. 15, the auto-stop mechanism
remains operative at all times.
Auto-Stop
Auto-Sto
.
.
i
Pp
Friction
Hub
Friction
Hub
Fig. 16
@
How
to
install
the
flywheel
retainer
PAS
WAS
REbAIRE
1. Insert the thrust retainer into the hole @) of the flywheel Hole ®
retainer as shown in fig. 17.
2. Hold the thrust retainer with the thumb as shown in ;
fig. 18. GS ) Thrust Retainer
Flywheel
Hold this part with the thumb
Fig. 17 Fig. 18
