Technics RS-M215

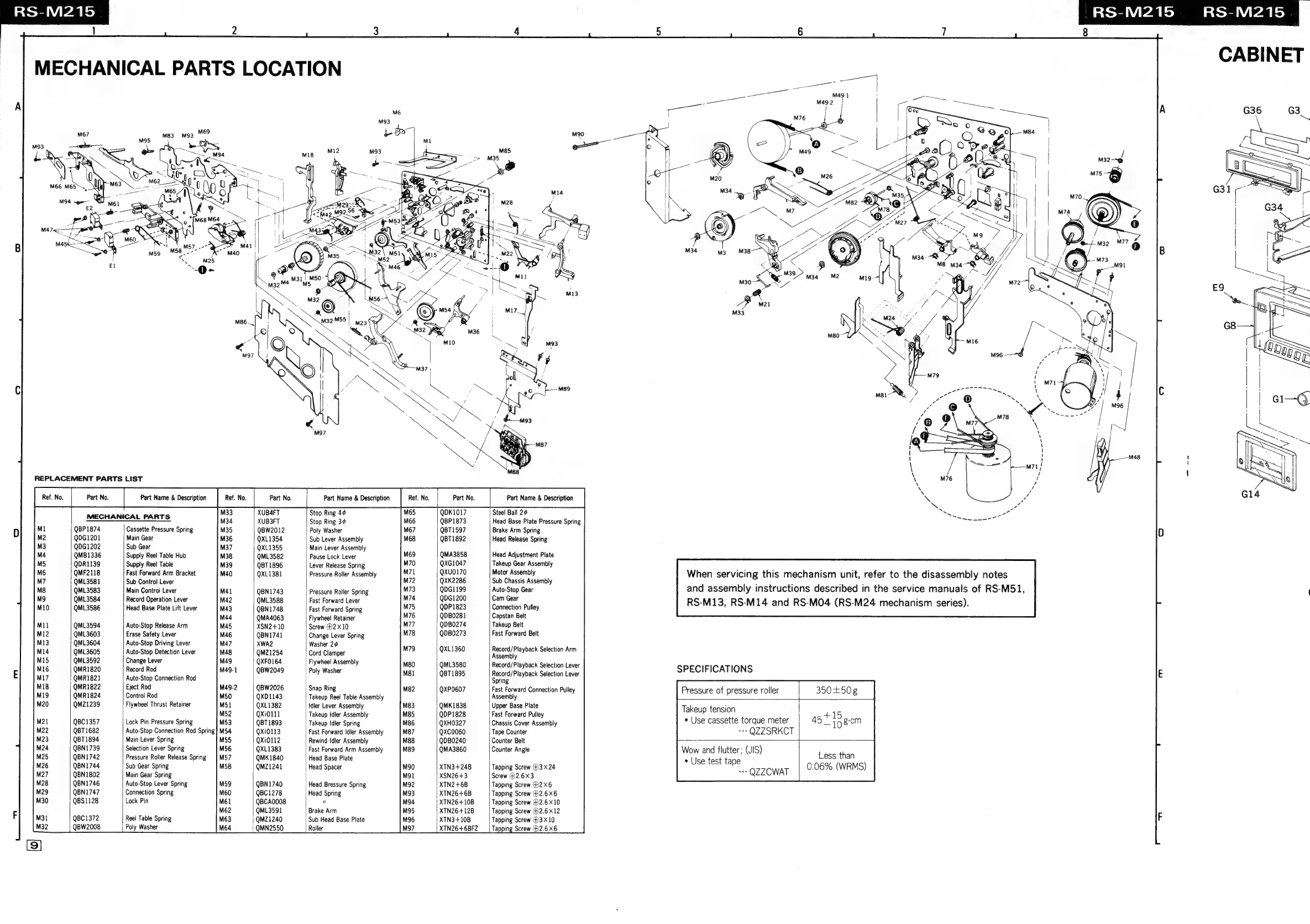

MECHANICAL PARTS LOCATION
Mg3 M93
REPLACEMENT PARTS LIST
D QBP1874
9061201
QDG1202
QMB1336
QDR1139
QMF2118
QML3581
QML3583
QML3584
QML3586
QML3594
QML3603
QML3604
QML3605
QML3592
E QMR1820
QMR1821
QMR1822
QMR1824
QMZ1239
QBC1357
QBT1682
QBT1894
QBN1739
QBN1742
QBN1744
QBN1802
QBN1746
QBN1747
08S1128
F 9BC1372
QBW2008
Part Name & Description Ref. No.
MECHANICAL PARTS
Cassette Pressure Spring
Main Gear
Sub Gear
Supply Reel Table Hub
Supply Reel Table
Fast Forward Arm Bracket
Sub Control Lever
Main Control Lever
Record Operation Lever
Head Base Plate Lift Lever
Auto-Stop Release Arm
Erase Safety Lever
Auto-Stop Driving Lever
Auto-Stop Detection Lever
Change Lever
Record Rod
Auto-Stop Connection Rod
Eject Rod
Control Rod
Flywheel Thrust Retainer
Lock Pin Pressure Spring
Auto-Stop Connection Rod Spring
Main Lever Spring
Selection Lever Spring
Pressure Roller Release Spring
Sub Gear Spring
Main Gear Spring
Auto-Stop Lever Spring
Connection Spring
Lock Pin
Reel Table Spring
Poly Washer
XUB4FT
XUB3FT
QBw2012
QXL1354
QXL1355
QML3582
QBT1896
QXL1381
QBN1743
QML3588
QBN1748
QMA4063
XSN2+10
QBN1741
XWA2
QMZ1254
QXF0164
QBW2049
08w2026
QXD1143
QXL1382
OXi0111
QBT1893
Qxi0113
Qxi0112
QXL1383
QMK1840
QMZ1241
QBN1740
0BC1278
QBCA0008
QML3591
QMZ1240
QMN2550
Part Name & Description
Stop Ring 4¢
Stop Ring 3¢
Poly Washer
Sub Lever Assembly
Main Lever Assembly
Pause Lock Lever
Lever Release Spring
Pressure Roller Assembly
Pressure Roller Spring
Fast Forward Lever
Fast Forward Spring
Flywheel Retainer
Screw ©2X10
Change Lever Spring
Washer 2¢
Cord Clamper
Flywheel Assembly
Poly Washer
Snap Ring
Takeup Reel Table Assembly
Idler Lever Assembly
Takeup Idler Assembly
Takeup Idler Spring
Fast Forward Idler Assembly
Rewind Idler Assembly
Fast Forward Arm Assembly
Head Base Plate
Head Spacer
Head Bressure Spring
Head Spring
an
Brake Arm
Sub Head Base Plate
Roller
Ref. No.
QDK1017
QBP1873
QBT1597
QBT1892
QMA3858
QXG1047
QXU0170
QXK2286
QDG1199
QDG1200
QDP1823
080281
QDB0274
QDB0273
QXL1360
QML3580
QBT1895
QXP0607
QMK1838
QDP1828
QXH0327
Qxc0060
QDB0240
QMA3860
XTN3+24B
XSN26+3
XTN2+6B
XTN26+6B
XTN26+10B
XTN26+12B
XTN3+10B
XTN26+6BFZ
Part Name & Description
Steel Ball 2¢
Head Base Plate Pressure Spring
Brake Arm Spring
Head Release Spring
Head Adjustment Plate
Takeup Gear Assembly
Motor Assembly
Sub Chassis Assembly
Auto-Stop Gear
Cam Gear
Connection Pulley
Capstan Belt
Takeup Belt
Fast Forward Belt
Record/Playback Selection Arm
Assembly
Record/Playback Selection Lever
Record/Playback Selection Lever
Spring
Fast Forward Connection Pulley
Assembly
Upper Base Plate
Fast Forward Pulley
Chassis Cover Assembly
Tape Counter
Counter Belt
Counter Angle
Tapping Screw ®3X24
Screw 2.6X3
Tapping Screw ®2X6
Tapping Screw 62.6X6
Tapping Screw 42.6 X10
Tapping Screw ©2.6 X12
Tapping Screw 3X10
Tapping Screw 2.6 X6
When servicing this mechanism unit, refer to the disassembly notes
and assembly instructions described in the service manuals of RS-M51,
RS-M13, RS-M14 and RS-M0O4 (RS-M24 mechanism series).
SPECIFICATIONS
Pressure of pressure roller
350£50¢g
Takeup tension
* Use cassette torque meter
+++ QZZSRKCT
+
45° iog-om
Wow and flutter; (JIS)
* Use test tape
+++ QZZCWAT
Less than
0.06% (WRMS)
RS-M215 RS-M215
