Technics RS-M226 - Motor Unit Disassembly; Precautions for Mechanism Unit Assembly

RS-M226

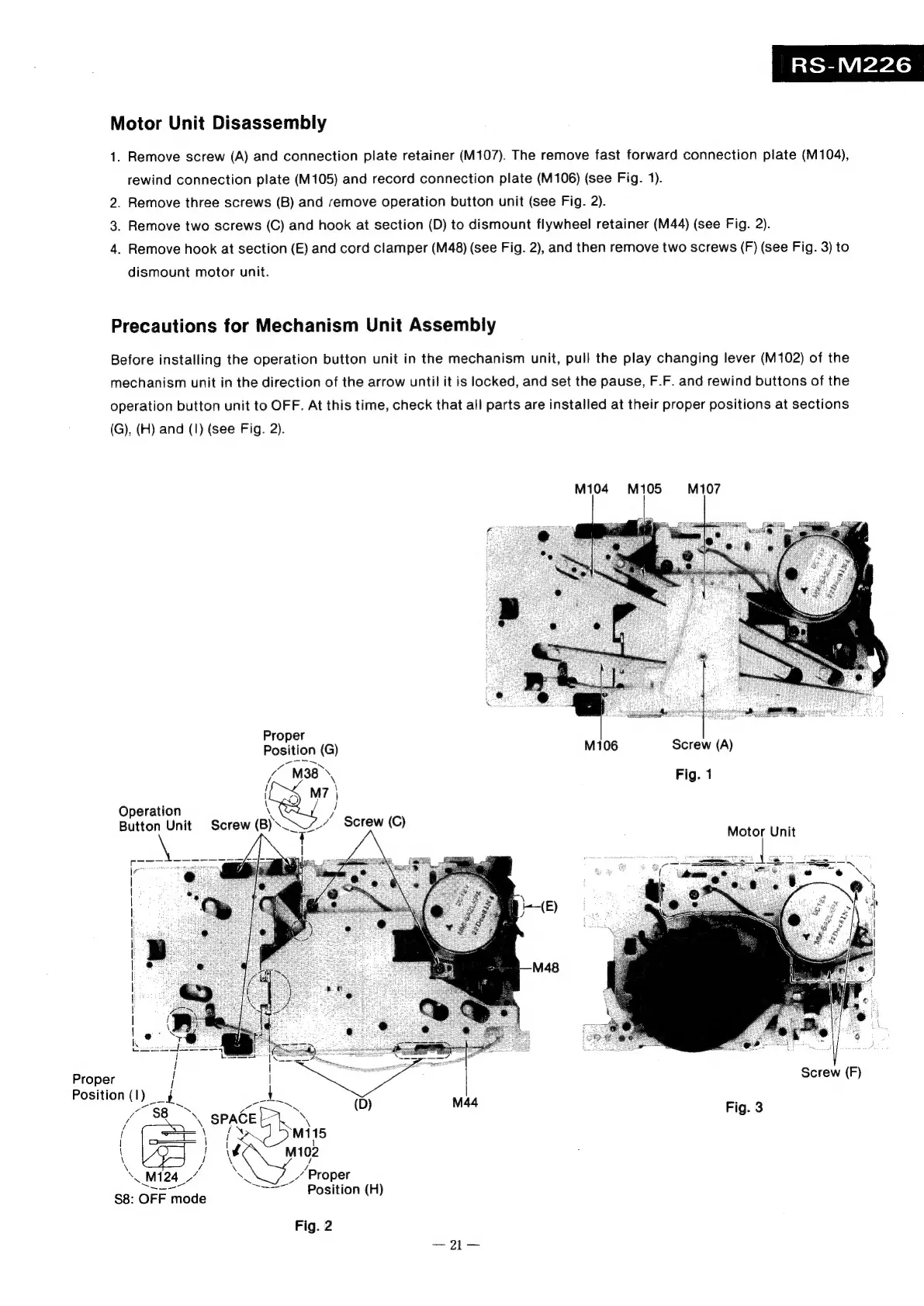

Motor Unit Disassembly
1. Remove screw (A) and connection plate retainer (M107). The remove fast forward connection plate (M104),
rewind connection plate (M105) and record connection plate (M106) (see Fig. 1).
2. Remove three screws (B) and remove operation button unit (see Fig. 2).
3. Remove two screws (C) and hook at section (D) to dismount flywheel retainer (M44) (see Fig. 2).
4. Remove hook at section (E) and cord clamper (M48) (see Fig. 2), and then remove two screws (F) (see Fig. 3) to
dismount motor unit.
Precautions for Mechanism Unit Assembly
Before installing the operation button unit in the mechanism unit, pull the play changing lever (M102) of the
mechanism unit in the direction of the arrow until it is locked, and set the pause, F.F. and rewind buttons of the
operation button unit to OFF. At this time, check that all parts are installed at their proper positions at sections
(G), (H) and (1) (see Fig. 2).
M104. M105 M107
Proper
Position
(G)
Screw
(A)
e
M38,
Fig.
1
Motor Unit
/
CS M7 |
Operation
\
Re.
,
Button
Unit
Screw
(B)
Se
Screw
(C)
Screw (F)
Proper
Fig. 3
/
_” Proper
$8: OFF mode ~~ Position (H)
Fig. 2
