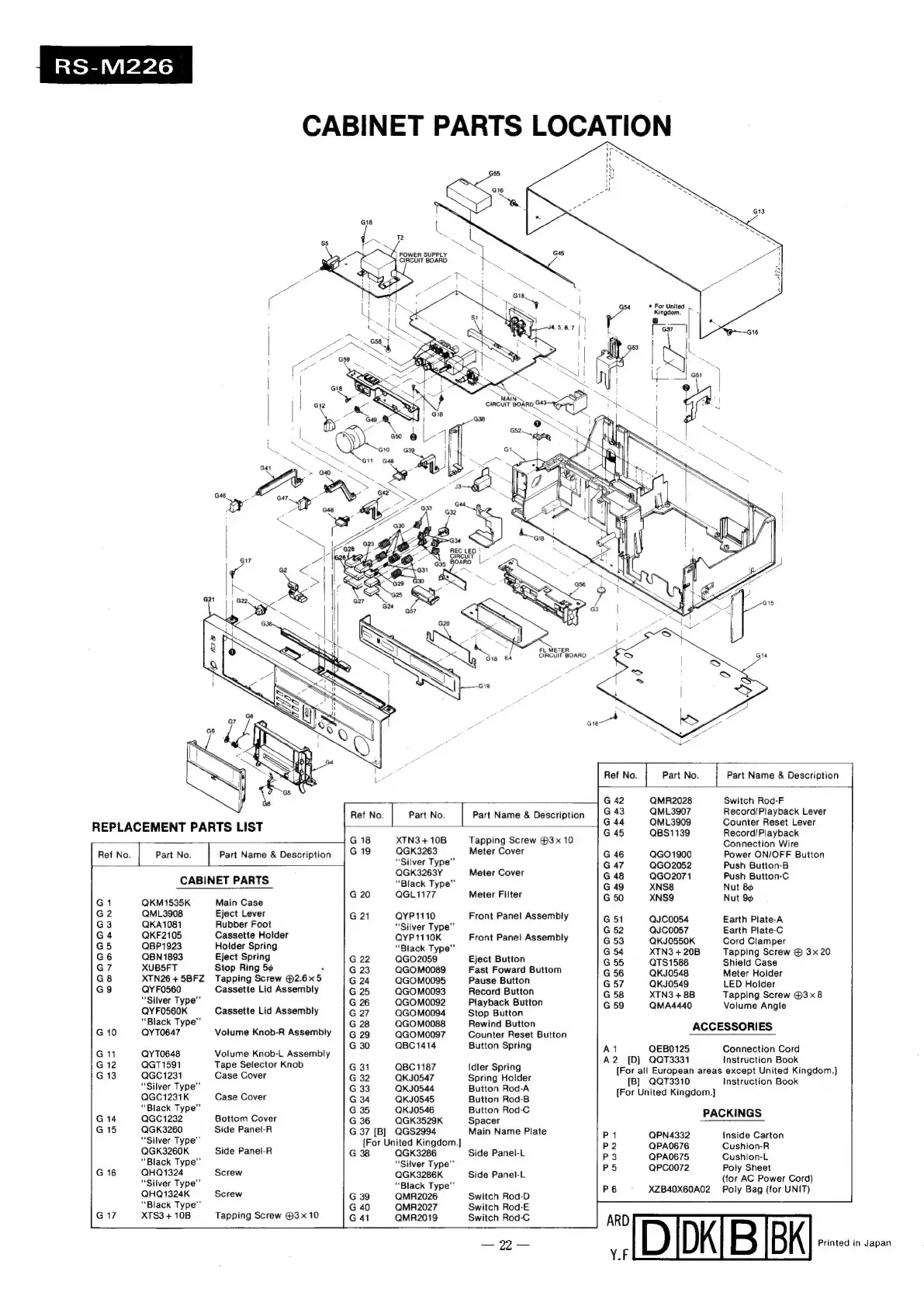

RS-M226
REPLACEMENT PARTS LIST
| POWER SUPPLY
CIRCUIT BOARD
+ For United
Kingdom. [~~
Po |
G54
Ga?
Part Name & Description
Ref No. ant Part No.
Ref No. | Part No.
Part Name & Description
G18 XTN3+ 10B Tapping Screw @3x 10
Ref No. Part No. Part Name & Description | & 19 QGK3263_ Meter Cover
Silver Type
QGK3263Y Meter Cover
CABINET PARTS “Black Type”
G 20 QGL1177 Meter Filter
G1 QKM1535K Main Case
G2 QML3908 Eject Lever Gat QYP1110 Front Panel Assembly
G3 QKA1081 Rubber Foot “Silver Type”
G4 QKF2105 Cassette Holder QYP1110K Front Panel Assembly
G5 QBP1923 Holder Spring “Black Type”
G6 QBN 1893 Eject Spring G22 QGO2059 Eject Button
G7 XUBSFT Stop Ring 5¢ ‘ G23 QGOM0089 Fast Foward Buttom
G8 XTN26+5BFZ Tapping Screw @2.6x5 G 24 QGOM0095 Pause Button
GQ QYFO560 Cassette Lid Assembly G25 QGOM0093 Record Button
“Silver Type” G 26 QGOM0092 Playback Button
QYFO560K Cassette Lid Assembly G27 QGOMO0094 Stop Button
“Black Type” G 28 QGOMmo0088 Rewind Button
G 10 QYT0647 Volume Knob-R Assembly | G 29 QGOMm0097 Counter Reset Button
G 30 QBC1414 Button Spring
G11 QYT0648 Volume Knob-L Assembly
G12 QGT1591 Tape Selector Knob G31 QBC1187 Idler Spring
G13 QGC1231 Case Cover G 32 QKJ0547 Spring Holder
“Silver Type G33 QKJ0544 Button Rod-A
QGC1231K Case Cover G 34 QKJ0545 Button Rod-B
“Black Type G 35 QKJ0546 Button Rod-C
G14 QGC1232 Bottom Cover G 36 QGK3529K Spacer
G15 QGK3260 Side Panel-R G 37 [B] QGS2994 Main Name Plate
“Silver Type” ; [For United Kingdom.]
QGK3260K Side Panel-R G 38 QGK3286 Side Panel-L
“Black Type” “Silver Type”
G 16 QHQ1324 Screw QGK3286K Side Panel-L
“Silver Type” “Black Type”
QHQ1324K = Screw G39 QMR2026 Switch Rod-D
Black Type G 40 QMR2027 Switch Rod-E
Gi7 XTS3 + 10B Tapping Screw @3~x 10 G41 QMR2019 Switch Rod-C
— 22 —
G 42 QMR2028 Switch Rod-F
G43 QML3907 Record/Playback Lever
G44 QML3909 Counter Reset Lever
G 45 QBS1139 Record/Playback
Connection Wire
G 46 QGO1900 Power ON/OFF Button
G47 QGO2052 Push Button-B
G48 QGO2071 Push Button-C
G49 XNS8 Nut 8d
G 50 XNS9 Nut 96
G 51 QJC0054 Earth Plate-A
G 52 QJC0057 Earth Plate-C
G53 QKJO550K Cord Clamper
G 54 XTN3 + 20B Tapping Screw @ 3x 20
G 55 QTS1586 Shield Case
G 56 QKJ0548 Meter Holder
G57 QKJ0549 LED Holder
G58 XTN3 + 8B Tapping Screw ®3x8
G59 QMA4440 Volume Angle
ACCESSORIES
Ad QEB0125 Connection Cord
A2 [D} QQT3331 Instruction Book
(For all European areas except United Kingdom.}
[B] QQT3310 Instruction Book
[For United Kingdom.]
PACKINGS
P41 QPN4332 Inside Carton
P2 QPA0676 Cushion-R
P3 QPA0675 Cushion-L
P5 QPC0072 Poly Sheet
(for AC Power Cord)
P6 XZB40X60A02_ Poly Bag (for UNIT)
