Technics RS-M226 - Page 8

RS-M226

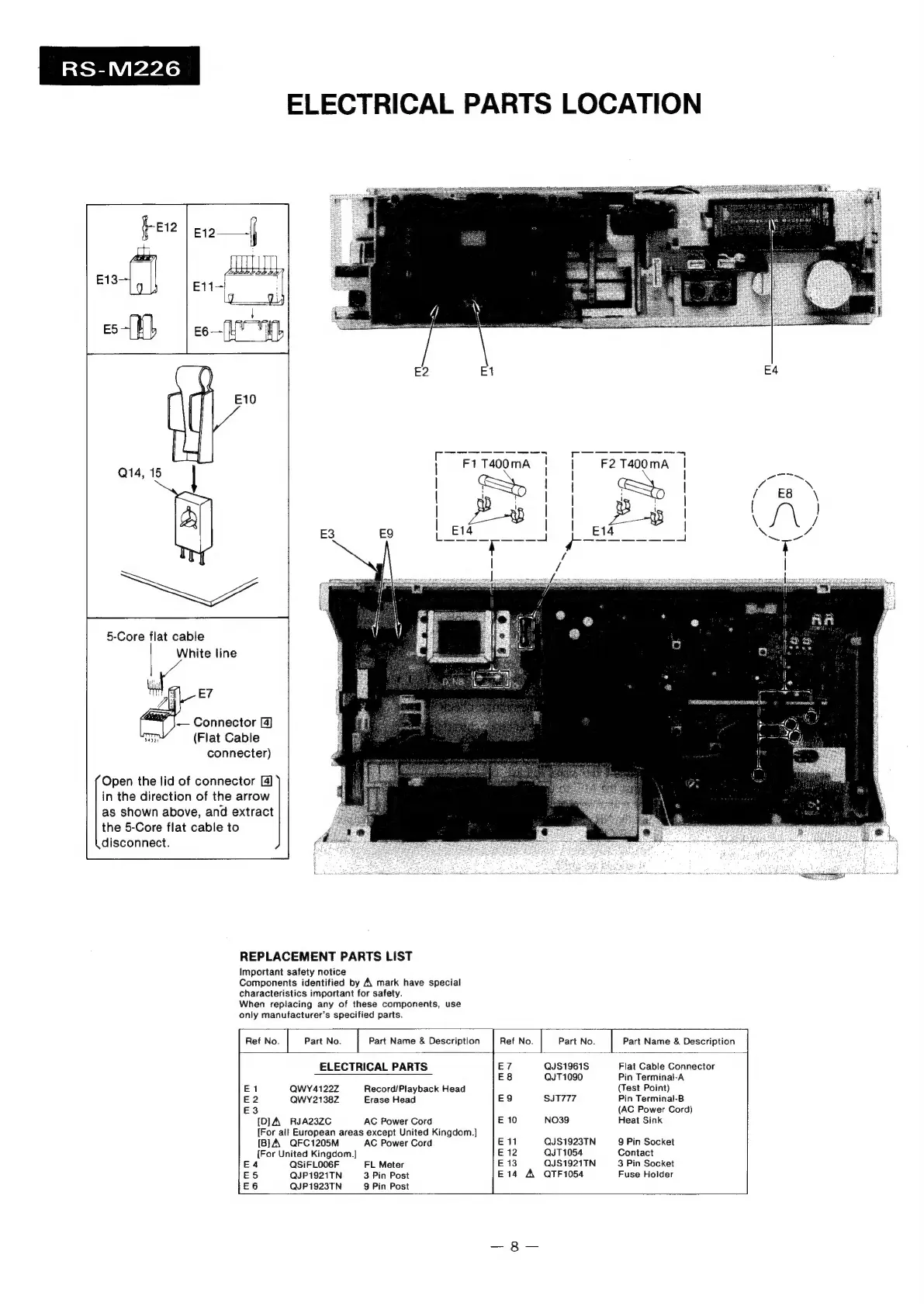

ELECTRICAL PARTS LOCATION
Q14, 15
5-Core flat cable
White line
aa = Connector [4]
ree (Flat Cable
connecter)
Open the lid of connector G]
in the direction of the arrow
as shown above, and extract
the 5-Core flat cable to
disconnect.
REPLACEMENT PARTS LIST
Important safety notice
Components identified by A mark have special
characteristics important for safety.
When replacing any of these components, use
only manufacturer’s specified parts.
Ref No. Part No. | Part Name & Description Ref No. Part No. Part Name & Description
ELECTRICAL PARTS E7 QuS1961S Flat Cable Connector
E8 QJUT1090 Pin Terminal-A
E1 QWY4122Z Record/Playback Head (Test Point)
E2 QWY2138Z Erase Head EQ SJT777 Pin Terminal-B
E3 (AC Power Cord)
[D] A RJA23ZC AC Power Cord E10 NO39 Heat Sink
[For all European areas except United Kingdom.}
([B)A QFC1205M AC Power Cord E11 QJS1923TN 9 Pin Socket
{For United Kingdom.] E12 QJT1054 Contact
4 QSiFLOO6F FL Meter E13 QJS1921TN 3 Pin Socket
5 QJP1921TN 3 Pin Post E14 A QTF1054 Fuse Holder
6 QJP1923TN 9 Pin Post
