Technics RS-M250

RS-M250

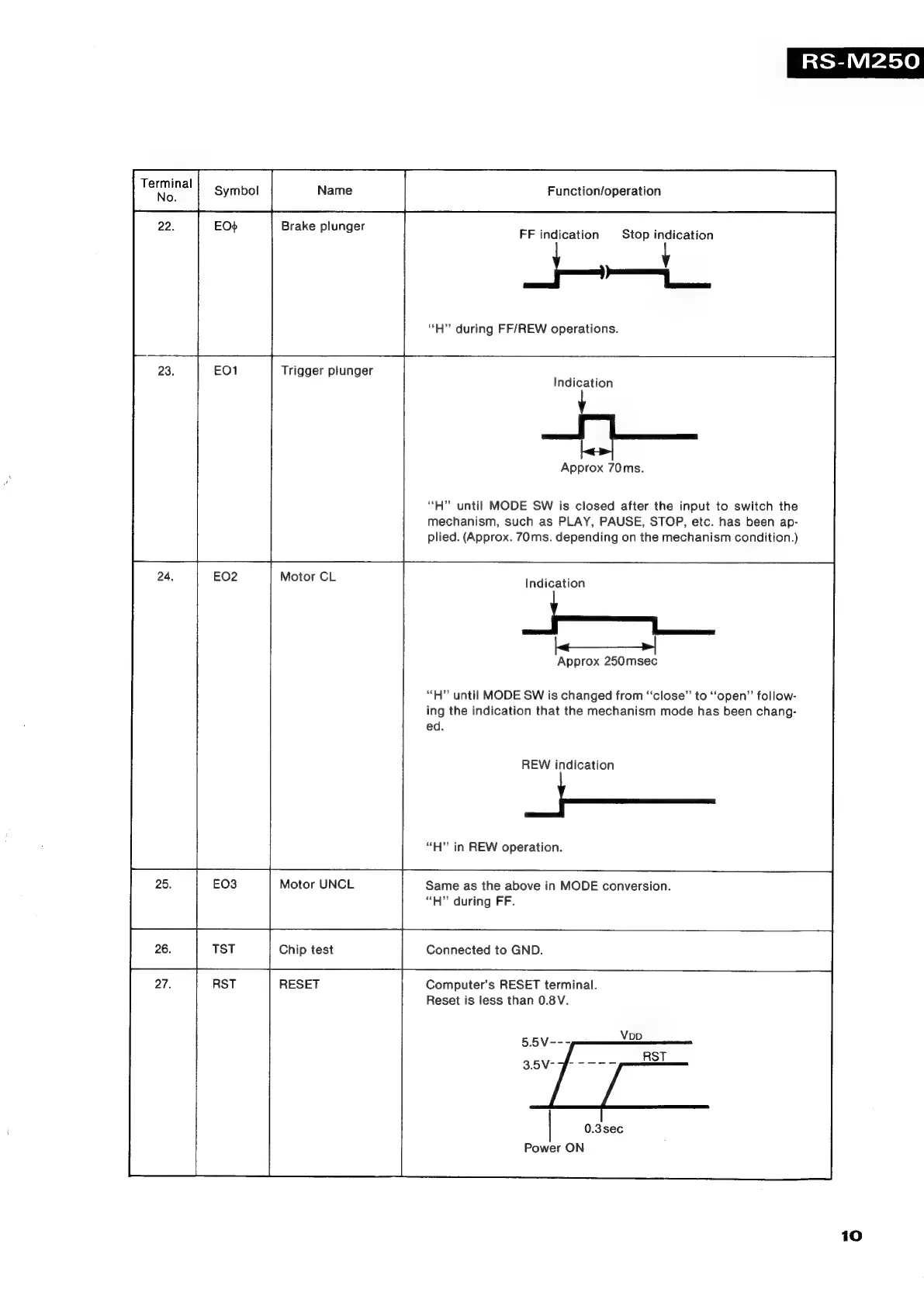

Symbol Name Function/operation
22. Brake plunger FF indication Stop indication
—
“H”’ during FF/REW operations.
ae A a
Trigger plunger
Indication
Approx 70ms.
“H” until MODE SW is closed after the input to switch the
mechanism, such as PLAY, PAUSE, STOP, etc. has been ap-
plied. (Approx. 70ms. depending on the mechanism condition.)
Motor
CL
Indication
Approx 250msec
“H” until MODE SW is changed from ‘‘close” to ‘‘open” follow-
ing the indication that the mechanism mode has been chang-
ed.
REW indication
“H” in REW operation.
Motor UNCL Same as the above in MODE conversion.
“H” during FF.
TST Connected to GND.
Computer’s RESET terminal.
Reset is less than 0.8V.
5.5V---
0.3sec
Power ON
10
