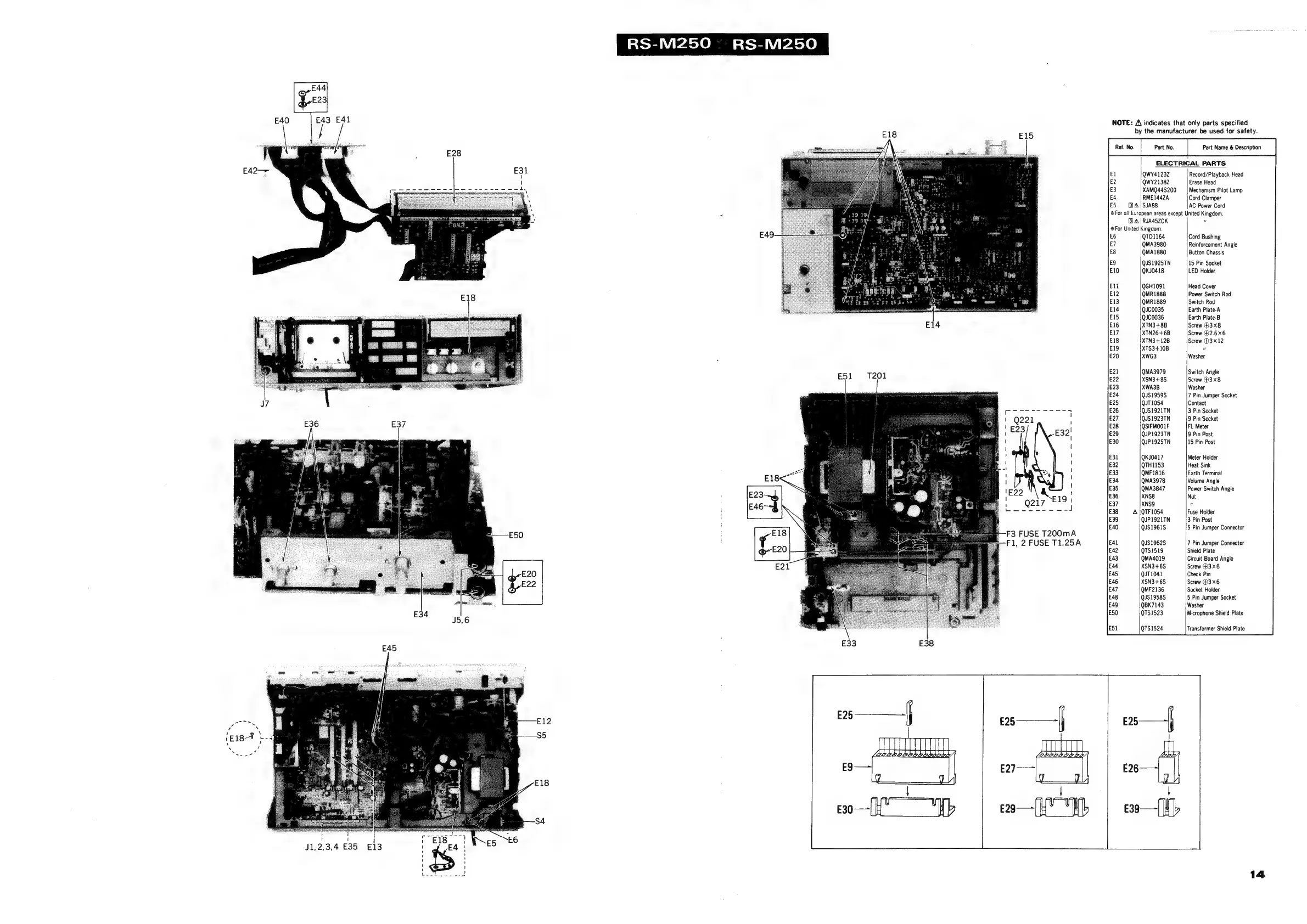

Technics RS-M250

RS-M250 RS-M2
NOTE: A indicates that only parts specified
by the manufacturer be used for safety.
E18
; Part Name & Description
Jes.
i
ELECTRICAL PARTS
QWY4123Z Record/Playback Head
QWY2138Z Erase Head
XAMQ44S200 Mechanism Pilot Lamp
S RME144ZA Cord Clamper
s DA! SJA88 AC Power Cord
. For all European areas except United Kingdom.
Bl A|RJA45ZCK ”
For United Kingdom.
E49 QTo1164 Cord Bushing
QMA3980 Reinforcement Angle
QMA1880 Button Chassis
QJS1925TN 15 Pin Socket
QKJ0418 LED Holder
QGH1091 Head Cover
QMR 1888 Power Switch Rod
QMR1889 Switch Rod
QJC0035 Earth Plate-A
QJC0036 Earth Plate-B
E14 XTN3+8B Screw 83X8
XTN26+6B Screw ®2.6X6
XTN3+12B Screw ®3X12
XTS3+10B "
XWG3 Washer
QMA3979 Switch Angle
E51 1201 XSN3+8S | Screw 3x8
XWA3B Washer
QJS1959S 7 Pin Jumper Socket
QUT1054 Contact
QJS1921TN 3 Pin Socket
QUS1923TN 9 Pin Socket
QSIFMOO1F FL Meter
QJP1923TN 9 Pin Post
QJP1925TN 15 Pin Post
QKJ0417 Meter Holder
— QTH1153 Heat Sink
ee] QMF1816 Earth Terminal
E18< : QMA3978 Volume Angle
. QMA3847 Power Switch Angle
ee i XNSB Nut
XNS9 ”
E46 QTF1054 Fuse Holder
QUP1921TN 3 Pin Post
! é 4 QJS1961S § Pin Jumper Connector
E18 *- —F3 FUSE T200mA
r Fl, 2 FUSE T1.25A QUS1962S 7 Pin Jumper Connector
E20 QTS1519 Shield Plate
QMA4019 Circuit Board Angle
E21 XSN3+6S Screw 3X6
QJT1041 Check Pin
XSN3+6S Screw ®3X6
QMF2136 Socket Holder
QJS1958S 5 Pin Jumper Socket
QBK7143 Washer
QTS1523 Microphone Shield Plate
QTS1524 Transformer Shield Plate
E33 E38
E45
J1,2,3,4 E35 £13
14
