Technics RS-M250

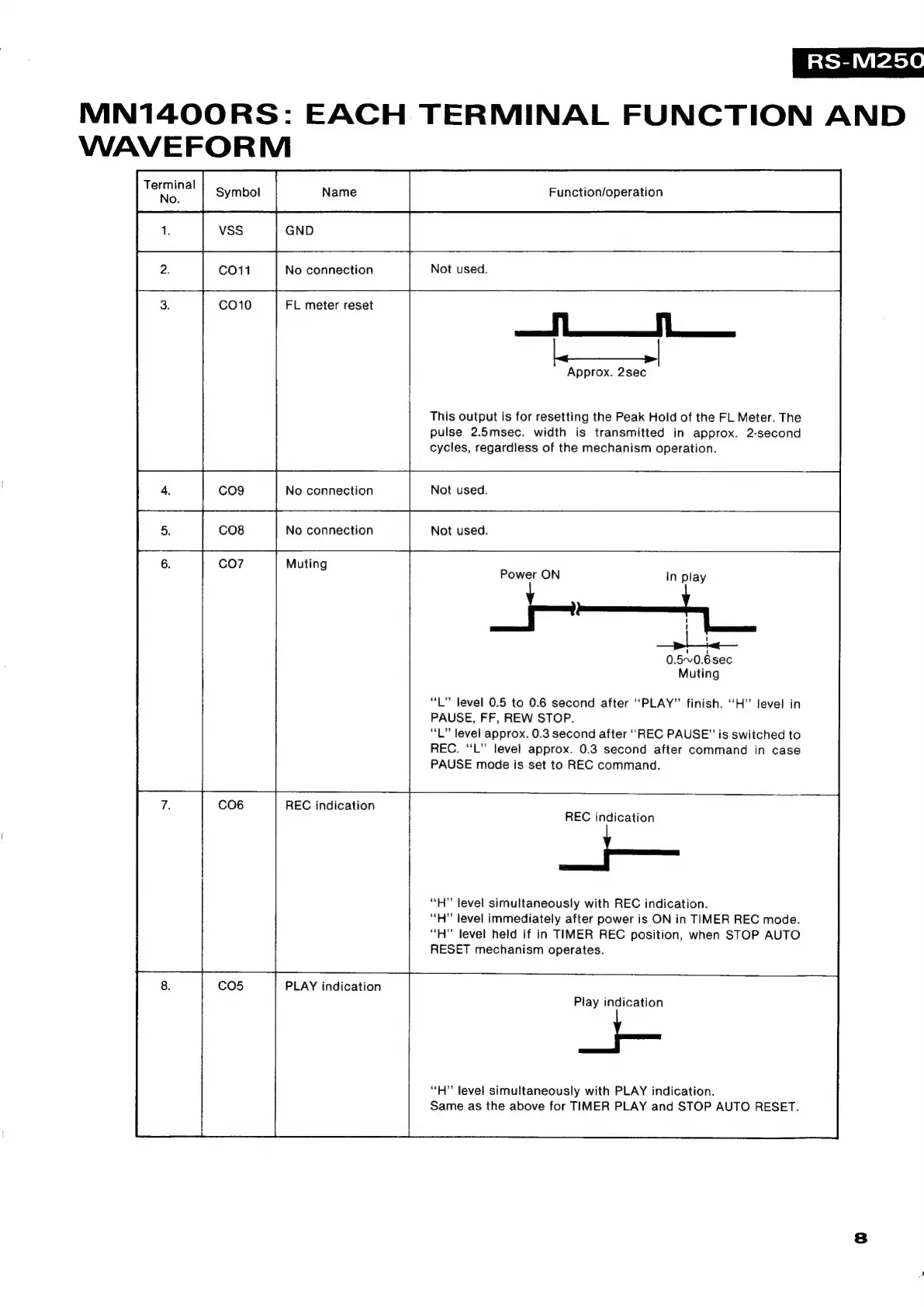

MN140ORS: EACH TERMINAL FUNCTION AND
WAVEFORM
Symbol Name Function/operation
Not used.
Approx. 2sec
This output is for resetting the Peak Hold of the FL Meter. The
pulse 2.5msec. width is transmitted in approx. 2-second
cycles, regardless of the mechanism operation.
No connection Not used.
No connection Not used.
——
Mutin
ene Power ON
0.5~-0.6sec
Muting
“L” level 0.5 to 0.6 second after “PLAY” finish. “‘H” level in
PAUSE, FF, REW STOP.
“L” level approx. 0.3 second after ‘‘REC PAUSE” is switched to
REC. “L” level approx. 0.3 second after command in case
PAUSE mode is set to REC command.
REC indication
REC indication
“H” level simultaneously with REC indication.
“H” level immediately after power is ON in TIMER REC mode.
“H” level held if in TIMER REC position, when STOP AUTO
RESET mechanism operates.
Cos PLAY indication
Play indication
“H” level simultaneously with PLAY indication.
Same as the above for TIMER PLAY and STOP AUTO RESET.
