Technics RS-TR474 - DISASSEMBLY INSTRUCTIONS

RS-TR474 |
Mi

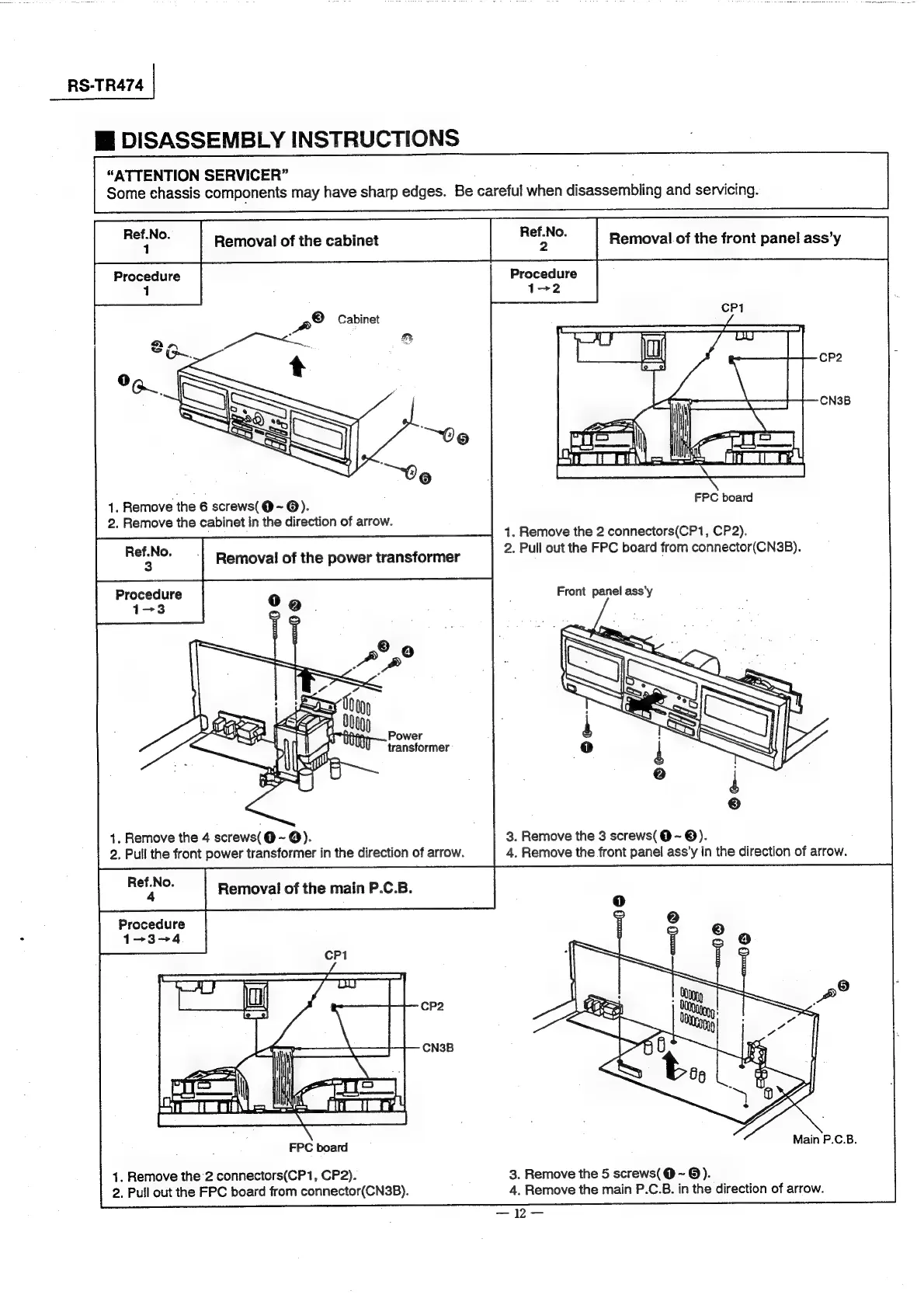

DISASSEMBLY
INSTRUCTIONS
“ATTENTION
SERVICER’
Some
chassis
components
may
have
sharp
edges.
Be
careful
when
disassembling
and
servicing.
1. Remove the 6 screws(@~@).
2. Remove the cabinet in the direction of arrow.
1. Remove the 4 screws(@~@).
2, Pull the front power transformer in the direction of arrow.
FPC board
1. Remove the 2 connectors(CP1, CP2).
2. Pull out the FPC board from connector(CN3B).
FPC board
1. Remove the 2 connectors(CP1, CP2).
2. Pull out the FPC board from connector(CN3B).
Front panel ass'y
3. Remove the 3 screws( @~ ©).
4, Remove the front panel ass’y in the direction of arrow.
Main P.C.B.
3. Remove the 5 screws(@~@).
4. Remove the main P.C.B. in the direction of arrow.
