Technics RS-TR474

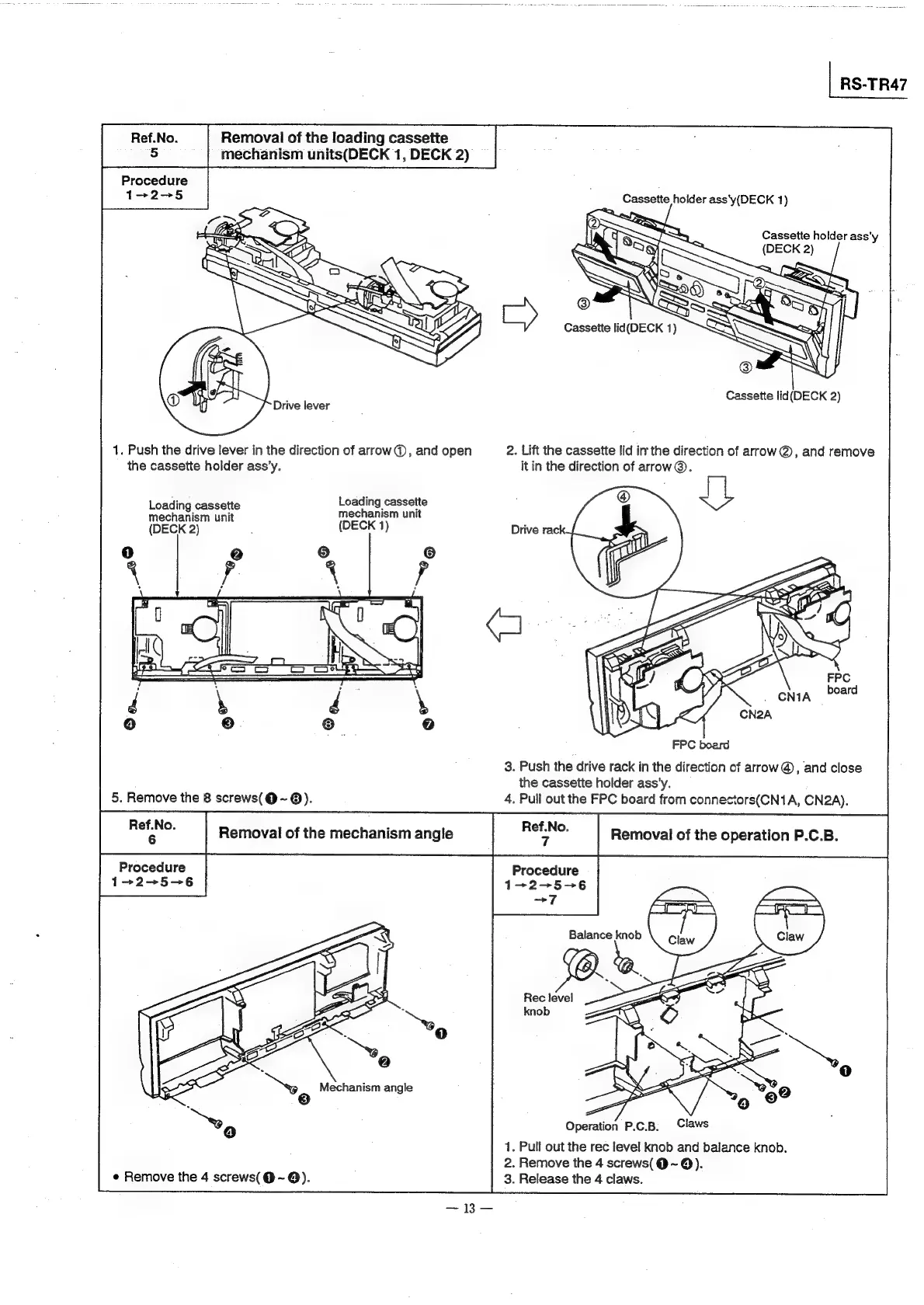

Removal of the loading cassette
mechanism units(DECK 1, DECK 2)
Procedure
Cassette holder ass'y(DECK 1)
Cassette lid(DECK 2)
1. Push the drive lever in the direction of arrow@, and open 2. Lift the cassette lid in the direction of arrow@, and remove
the cassette holder ass’y. it in the direction of arrow@.
Loading cassette Loading cassette
mechanism
unit
mechanism
unit
(DECK
2)
(DECK
1)
FPC board
3. Push the drive rack in the direction of arrow@, and close
the cassette holder ass’y.
5. Remove the 8 screws(@~®). 4, Pull out the FPC board from connectors(CN1A, CN2A).
Ref.No.
6
Procedure
1-2-5-6
Removal of the mechanism angle Removal of the operation P.C.B.
Procedure
1-2-5-6
7
Rec level
knob
TI
Operation P.C.B, Claws
. Pull out the rec level knob and balance knob.
2. Remove the 4 screws(@~@).
e Remove the 4 screws(@~@). 3. Release the 4 claws.
