Technics RS-TR474

RS-TR474 |
Hi
INSTALLATION
OF
THE
CASSETTE
HOLDER
ASS’Y

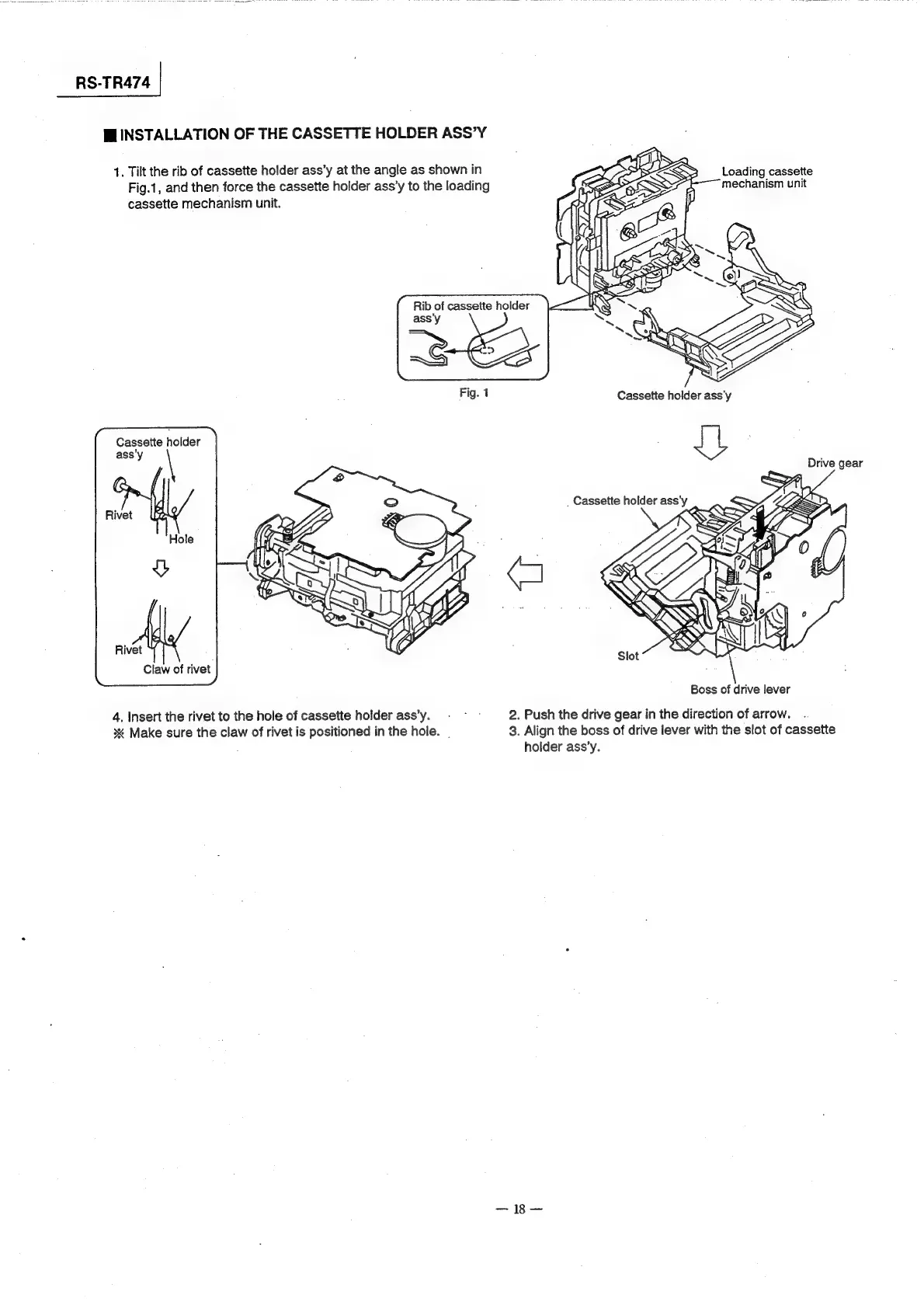

1. Tilt the rib of cassette holder ass’y at the angle as shown in
Fig.1, and then force the cassette holder ass’y to the loading
cassette mechanism unit.
Loading cassette
mechanism unit
Rib of cassette holder
ass'y
EZ
<A
Fig. 1
Cassette holder
ass’y
Rivet
Claw of rivet
Boss of drive lever
4.
Insert
the
rivet
to
the
hole
of
cassette
holder
ass’'y.
-
2.
Push
the
drive
gear
in
the
direction
of
arrow.
%
Make
sure
the
claw
of
rivet
is
positioned
in
the
hole.
|
3.
Align
the
boss
of
drive
lever
with
the
slot
of
cassette
holder
ass’y.
