Technics RS-TR474 Service Manual

| RS-TR47

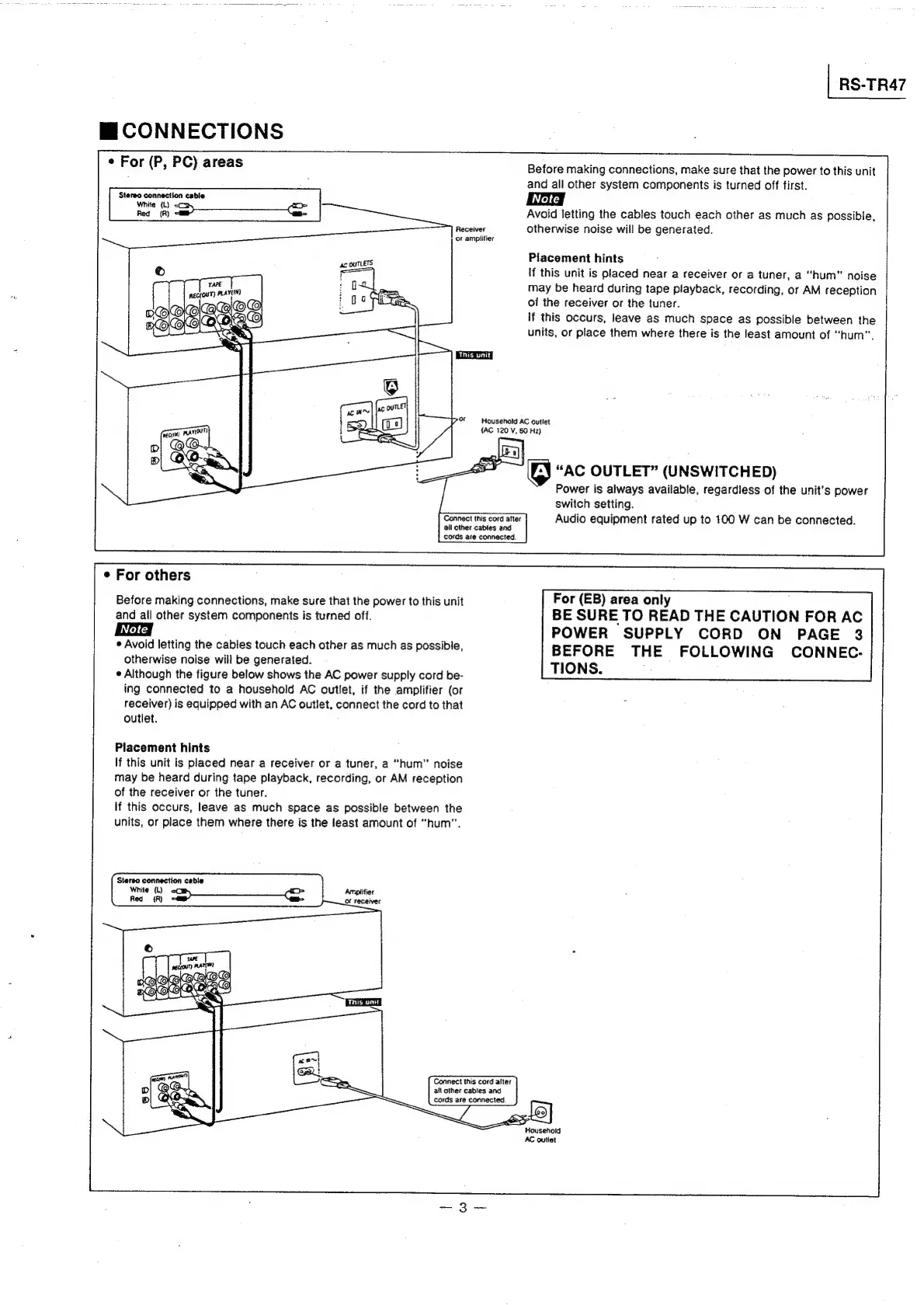

Mi CONNECTIONS
¢ For (P, PC) areas
Before making connections, make sure that the power to this unit
and all other system components is turned off first.
Stereo connection cable
White (L)
Red (A)
Avoid letting the cables touch each other as much as possible,
Receiver otherwise noise will be generated.
‘or amplifier
Placement hints
If
this
unit
is
placed
near
a
receiver
or
a
tuner,
a
“hum”
noise
may
be
heard
during
tape
playback,
recording,
or
AM
reception
of the
receiver
or
the
tuner.
If
this
occurs,
leave
as
much
space
as
possible
between
the
units,
or
place
them
where
there
is
the
least
amount
of
“hum”.
ac OUTLETS
Household AC outlet
{AC 120 V, 60 Hz)
“AC OUTLET” (UNSWITCHED)
Power is always available, regardless of the unit's power
switch setting.
Audio equipment rated up to 100 W can be connected.
Connect this cord after
ail other cables and
cords are connected.
¢ For others
Before making connections, make sure that the power to this unit
and all other system components is turned off.
¢ Avoid letting the cables touch each other as much as possible,
otherwise noise will be generated.
¢ Although the figure below shows the AC power supply cord be-
ing connected to a household AC outlet, if the amplifier (or
receiver) is equipped with an AC outlet. connect the cord to that
outlet.
Placement hints
If this unit is placed near a receiver or a tuner, a “hum” noise
may be heard during tape playback, recording, or AM reception
of the receiver or the tuner.
If this occurs, leave as much space as possible between the
units, or place them where there is the least amount of “hum”.
Stereo connection cable
White (L)
Rea {R}
This unit
seer this cord after
For (EB) area only
BE SURE TO READ THE CAUTION FOR AC
POWER SUPPLY CORD ON PAGE 3
BEFORE THE FOLLOWING CONNEC-
TIONS.
Household
AC outlet

Technics RS-TR474 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Frequency Response	20Hz to 17kHz (Metal tape)
Type	Cassette Deck
Heads	1 x Record/Playback, 1 x Erase
Motor	DC motor
Output	400mV (Line)
Dimensions	430 x 125 x 290mm
Power Supply	220-240V AC, 50Hz
