RS-TR474 |

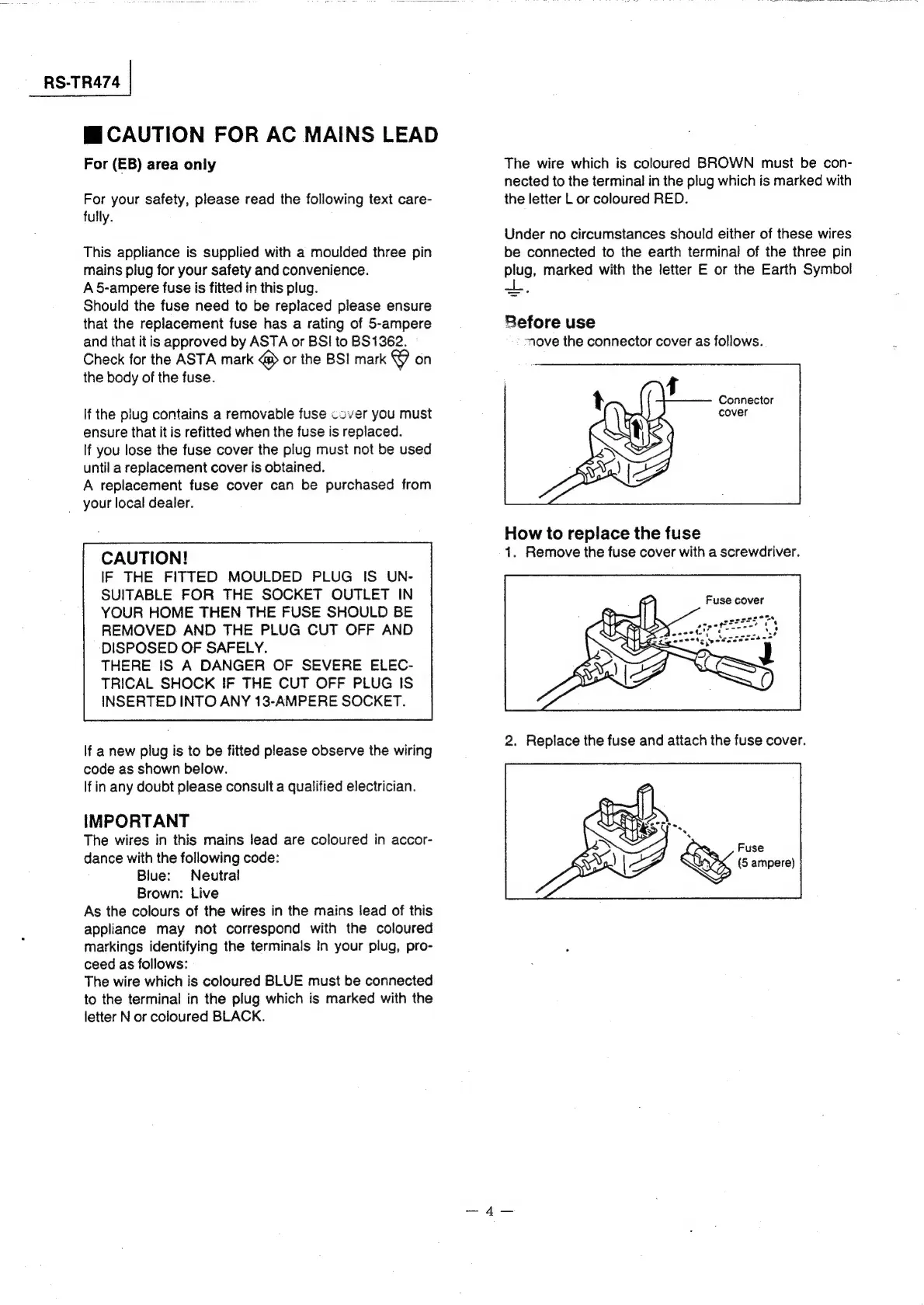

Mi CAUTION FOR AC MAINS LEAD
For (EB) area only
For your safety, please read the following text care-
fully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark @> or the BS! mark Y on
the body of the fuse.
If the plug contains a removable fuse v2ver you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
_ your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG !S UN-
SUITABLE FOR THE SOCKET OUTLET IN
YOUR HOME THEN THE FUSE SHOULD BE
REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELEC-
TRICAL SHOCK IF THE CUT OFF PLUG IS
INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accor-
dance with the following code:
Biue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals In your plug, pro-
ceed as follows:
The wire which is coloured BLUE must be connected
to the terminal in the plug which is marked with the
letter N or coloured BLACK.
The wire which is coloured BROWN must be con-
nected to the terminal in the plug which is marked with
the letter L or coloured RED.
Under no circumstances should either of these wires
be connected to the earth terminal of the three pin
plug, marked with the letter E or the Earth Symbol
alee
Sefore use
“nove the connector cover as follows.
4
Connector
cover
How to replace the fuse
1. Remove the fuse cover with a screwdriver.
Fuse cover
ae
ares eer
) ners Saat date
Beco tt ge cesceesene
‘
‘
2 S&. _ Fuse
(5 ampere)

Technics RS-TR474 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Frequency Response	20Hz to 17kHz (Metal tape)
Type	Cassette Deck
Heads	1 x Record/Playback, 1 x Erase
Motor	DC motor
Output	400mV (Line)
Dimensions	430 x 125 x 290mm
Power Supply	220-240V AC, 50Hz
