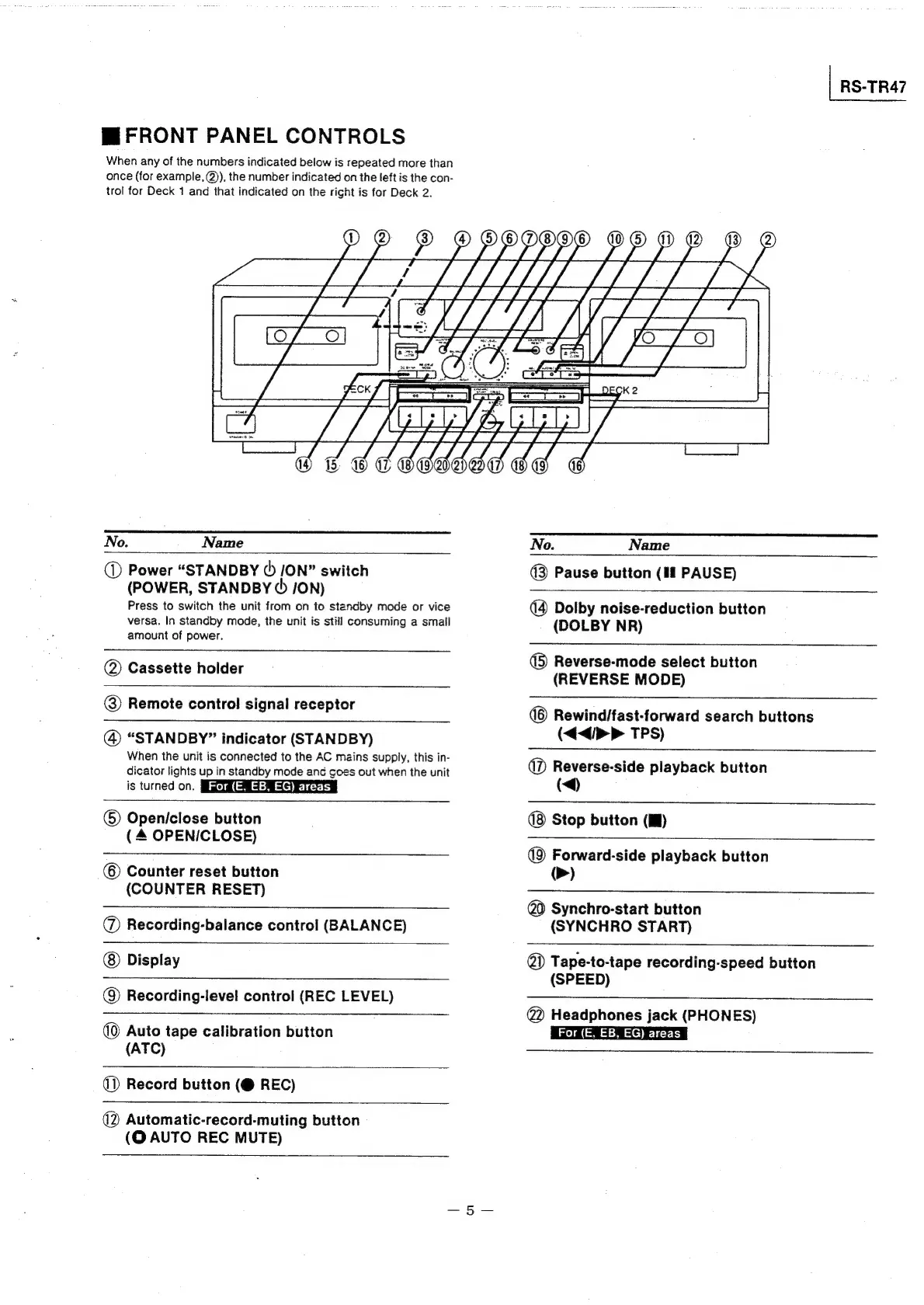

Technics RS-TR474 Service Manual

Mi FRONT PANEL CONTROLS
When any of the numbers indicated below is repeated more than
once (for example, @)), the number indicated on the left is the con-
trol for Deck 1 and that indicated on the right is for Deck 2.
we
No. Name
@ Power “STANDBY () /ON” switch
(POWER, STANDBY b ION)
Press to switch the unit from on to stendby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
(2) Cassette holder
@) Remote control signal receptor
@ “STANDBY” indicator (STANDBY)
When the unit is connected to the AC mains supply, this in-
dicator lights up in standby mode anc goes out when the unit
is turned on. #ixtela (=a Mi ep ect
() Openiclose button
( 4 OPEN/CLOSE)
©) Counter reset button
(COUNTER RESET)
@) Recording-balance control (BALANCE)
Display
Recording-level control (REC LEVEL)
(0 Auto tape calibration button
(ATC)
@) Record button (@ REC)
(2 Automatic-record-muting button
(OQ AUTO REC MUTE)
ee ie SU
MEM
F
LF aap/annnly, nl)
| RS-TR47
(3) Pause button (If PAUSE)
(4 Dolby noise-reduction button
(DOLBY NR)
(5 Reverse-mode select button
(REVERSE MODE)
Rewind/fast-forward search buttons
(<<>> TPS)
(7) Reverse-side playback button
(<4)
Stop button (Ml)
(9) Forward-side playback button
(>)
@ Synchro-start button
(SYNCHRO START)
@) Tape-to-tape recording-speed button
(SPEED)
@ Headphones jack (PHONES)

Technics RS-TR474 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Frequency Response	20Hz to 17kHz (Metal tape)
Type	Cassette Deck
Heads	1 x Record/Playback, 1 x Erase
Motor	DC motor
Output	400mV (Line)
Dimensions	430 x 125 x 290mm
Power Supply	220-240V AC, 50Hz
